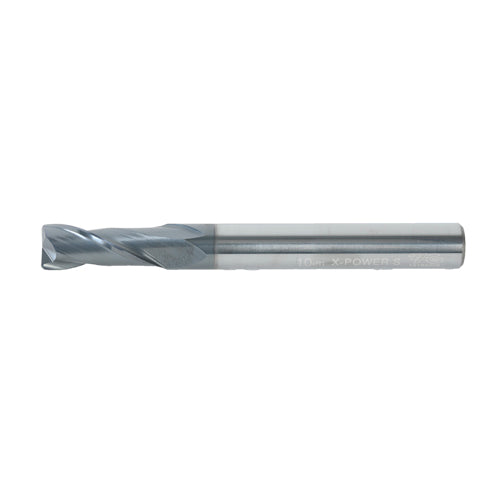

• YG-1 SEM81804010 Carbide End Mill Carbide Radius End Mill (X-POWER S)
1 1

YG-1 SEM81804010 Carbide End Mill Carbide Radius End Mill (X-POWER S)

YG-1 SEM81804010 Carbide End Mill Carbide Radius End Mill (X-POWER S)

Carbide Radius End Mill (X-POWER S) from YG-1, sourced from Korea.

304-5518 MPN: SEM81804010 | 2F-4(R1)*6*10*50MM(SEM81804010) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 1.0
304-7668 MPN: SEM81802002 | 2F-2(R0.2)*6*6*50MM(SEM81802002) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
304-9116 MPN: SEM81812005 | 2F-12(R0.5)*12*30*100MM(SEM81812005) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank d: 12 | Corner R: 0.5
304-9125 MPN: SEM81812010 | 2F-12(R1)*12*30*100MM(SEM81812010) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank d: 12 | Corner R: 1.0
304-9134 MPN: SEM81812020 | 2F-12(R2)*12*30*100MM(SEM81812020) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 2.0
305-6480 MPN: SEM81810010 | 2F-10(R1)*10*25*90MM(SEM81810010) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank d: 10 | Corner R: 1.0
305-7009 MPN: SEM81805010 | 2F-5(R1)*6*13*50MM(SEM81805010) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 1.0
305-7018 MPN: SEM81806003 | 2F-6(R0.3)*6*15*60MM(SEM81806003) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.3
305-7027 MPN: SEM81806005 | 2F-6(R0.5)*6*15*60MM(SEM81806005) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.5
305-7036 MPN: SEM81806010 | 2F-6(R1)*6*15*60MM(SEM81806010) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 1.0
305-7045 MPN: SEM81810005 | 2F-10(R0.5)*10*25*90MM(SEM81810005) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 0.5
305-7911 MPN: SEM81803005 | 2F-3(R0.5)*6*8*50MM(SEM81803005) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank D: 6 | Corner R: 0.5
305-7948 MPN: SEM81805005 | 2F-5(R0.5)*6*13*50MM(SEM81805005) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5
305-8026 MPN: SEM81808010 | 2F-8(R1)*8*20*70MM(SEM81808010) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 1.0
305-9423 MPN: SEM81801501 | 2F-1.5(R0.1)*6*4*50MM(SEM81801501) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank d: 6 | Corner R: 0.1
305-9821 MPN: SEM81808005 | 2F-8(R0.5)*8*20*70MM(SEM81808005) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 0.5
306-0304 MPN: SEM81802005 | 2F-2(R0.5)*6*6*50MM(SEM81802005) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank d: 6 | Corner R: 0.5
306-3967 MPN: SEM81810020 | 2F-10(R2)*25*90MM(SEM81810020) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank D: 10 | Corner R: 2.0
306-4072 MPN: SEM81801002 | 2F-1(R0.2)*6*2.5*50MM(SEM81801002) | Spec: 1.0 | Flute Length: 2.5 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
306-6681 MPN: SEM81806002 | 2F-6(R0.2)*6*15*60MM(SEM81806002) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner R: 0.2
306-9378 MPN: SEM81802001 | 2F-2(R0.1)*6*6*50MM(SEM81802001) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1
307-1443 MPN: SEM81804005 | 2F-4(R0.5)*6*10*50MM(SEM81804005) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5
307-4121 MPN: SEM81801001 | 2F-1(R0.1)*6*2.5*50MM(SEM81801001) | Spec: 1.0 | Flute Length: 2.5 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 0.1
307-4477 MPN: SEM81808003 | 2F-8(R0.3)*8*20*70MM(SEM81808003) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 0.3
307-5014 MPN: SEM81803002 | 2F-3(R0.2)*8*50MM(SEM81803002) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
307-5023 MPN: SEM81804002 | 2F-4(R0.2)*6*10*50MM(SEM81804002) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
307-5032 MPN: SEM81804003 | 2F-4(R0.3)*6*10*50MM(SEM81804003) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3
307-5041 MPN: SEM81810003 | 2F-10(R0.3)*10*25*90MM(SEM81810003) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 0.3
307-5050 MPN: SEM81812003 | 2F-12(R0.3)*12*30*100MM(SEM81812003) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 0.3
307-5157 MPN: SEM81802003 | 2F-2(R0.3)*6*6*50MM(SEM81802003) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3
307-5315 MPN: SEM81803003 | 2F-3(R0.3)*8*50MM(SEM81803003) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank d: 6 | Corner R: 0.3
308-0654 MPN: SEM81801502 | 2F-1.5(R0.2)*6*4*50MM(SEM81801502) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
308-5224 MPN: SEM81805002 | 2F-5(R0.2)*6*13*50MM(SEM81805002) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
322-2320 MPN: SEM81803001 | 2F-3(R0.1)*6*8*50MM(SEM81803001) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1
322-2339 MPN: SEM81804001 | 2F-4(R0.1)*6*10*50MM(SEM81804001) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1
322-2348 MPN: SEM81805003 | 2F-5(R0.3)*6*13*50MM(SEM81805003) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3
322-7398 MPN: SEM81801503 | 2F-1.5(R0.3)*6*4*50MM(SEM81801503) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3
End MillsYG-1
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YG-1 SEM81804010 Carbide End Mill Carbide Radius End Mill (X-POWER S)

Brand YG-1·End Mills

Available part numbers (37)

304-5518, 304-7668, 304-9116, 304-9125, 304-9134, 305-6480, 305-7009, 305-7018, 305-7027, 305-7036 + 27 more — see full table ↓

How to order

Send the YG-1 part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
304-5518MPN: SEM81804010 | 2F-4(R1)*6*10*50MM(SEM81804010) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 1.0
304-7668MPN: SEM81802002 | 2F-2(R0.2)*6*6*50MM(SEM81802002) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
304-9116MPN: SEM81812005 | 2F-12(R0.5)*12*30*100MM(SEM81812005) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank d: 12 | Corner R: 0.5
304-9125MPN: SEM81812010 | 2F-12(R1)*12*30*100MM(SEM81812010) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank d: 12 | Corner R: 1.0
304-9134MPN: SEM81812020 | 2F-12(R2)*12*30*100MM(SEM81812020) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 2.0
305-6480MPN: SEM81810010 | 2F-10(R1)*10*25*90MM(SEM81810010) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank d: 10 | Corner R: 1.0
305-7009MPN: SEM81805010 | 2F-5(R1)*6*13*50MM(SEM81805010) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 1.0
305-7018MPN: SEM81806003 | 2F-6(R0.3)*6*15*60MM(SEM81806003) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.3
305-7027MPN: SEM81806005 | 2F-6(R0.5)*6*15*60MM(SEM81806005) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.5
305-7036MPN: SEM81806010 | 2F-6(R1)*6*15*60MM(SEM81806010) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 1.0
305-7045MPN: SEM81810005 | 2F-10(R0.5)*10*25*90MM(SEM81810005) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 0.5
305-7911MPN: SEM81803005 | 2F-3(R0.5)*6*8*50MM(SEM81803005) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank D: 6 | Corner R: 0.5
305-7948MPN: SEM81805005 | 2F-5(R0.5)*6*13*50MM(SEM81805005) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5
305-8026MPN: SEM81808010 | 2F-8(R1)*8*20*70MM(SEM81808010) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 1.0
305-9423MPN: SEM81801501 | 2F-1.5(R0.1)*6*4*50MM(SEM81801501) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank d: 6 | Corner R: 0.1
305-9821MPN: SEM81808005 | 2F-8(R0.5)*8*20*70MM(SEM81808005) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 0.5
306-0304MPN: SEM81802005 | 2F-2(R0.5)*6*6*50MM(SEM81802005) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank d: 6 | Corner R: 0.5
306-3967MPN: SEM81810020 | 2F-10(R2)*25*90MM(SEM81810020) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank D: 10 | Corner R: 2.0
306-4072MPN: SEM81801002 | 2F-1(R0.2)*6*2.5*50MM(SEM81801002) | Spec: 1.0 | Flute Length: 2.5 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
306-6681MPN: SEM81806002 | 2F-6(R0.2)*6*15*60MM(SEM81806002) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner R: 0.2
306-9378MPN: SEM81802001 | 2F-2(R0.1)*6*6*50MM(SEM81802001) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1
307-1443MPN: SEM81804005 | 2F-4(R0.5)*6*10*50MM(SEM81804005) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5
307-4121MPN: SEM81801001 | 2F-1(R0.1)*6*2.5*50MM(SEM81801001) | Spec: 1.0 | Flute Length: 2.5 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 0.1
307-4477MPN: SEM81808003 | 2F-8(R0.3)*8*20*70MM(SEM81808003) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 0.3
307-5014MPN: SEM81803002 | 2F-3(R0.2)*8*50MM(SEM81803002) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
307-5023MPN: SEM81804002 | 2F-4(R0.2)*6*10*50MM(SEM81804002) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
307-5032MPN: SEM81804003 | 2F-4(R0.3)*6*10*50MM(SEM81804003) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3
307-5041MPN: SEM81810003 | 2F-10(R0.3)*10*25*90MM(SEM81810003) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 0.3
307-5050MPN: SEM81812003 | 2F-12(R0.3)*12*30*100MM(SEM81812003) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 0.3
307-5157MPN: SEM81802003 | 2F-2(R0.3)*6*6*50MM(SEM81802003) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3
307-5315MPN: SEM81803003 | 2F-3(R0.3)*8*50MM(SEM81803003) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank d: 6 | Corner R: 0.3
308-0654MPN: SEM81801502 | 2F-1.5(R0.2)*6*4*50MM(SEM81801502) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
308-5224MPN: SEM81805002 | 2F-5(R0.2)*6*13*50MM(SEM81805002) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2
322-2320MPN: SEM81803001 | 2F-3(R0.1)*6*8*50MM(SEM81803001) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1
322-2339MPN: SEM81804001 | 2F-4(R0.1)*6*10*50MM(SEM81804001) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1
322-2348MPN: SEM81805003 | 2F-5(R0.3)*6*13*50MM(SEM81805003) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3
322-7398MPN: SEM81801503 | 2F-1.5(R0.3)*6*4*50MM(SEM81801503) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3
