• YG-1 SG8A01100 Carbide End Mill Carbide End Mill (X5070S)
1 1

YG-1 SG8A01100 Carbide End Mill Carbide End Mill (X5070S)

YG-1 SG8A01100 Carbide End Mill Carbide End Mill (X5070S)

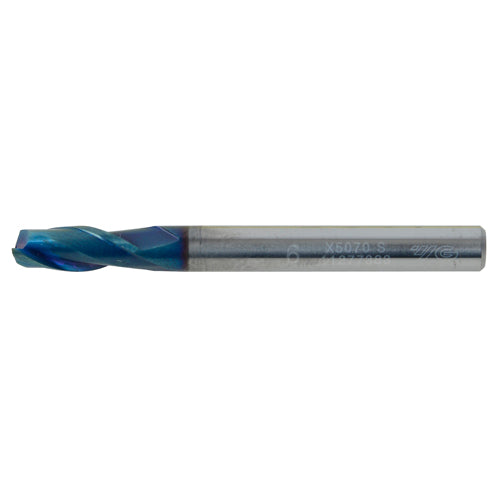

Carbide End Mill (X5070S) from YG-1, sourced from Korea.

304-5101 MPN: SG8A01100 | 2F-10*10*25*70MM(SG8A01100) | Spec: 10.0 | Flute Length: 25 | Overall Length: 70 | Shank Diameter: 10
304-5341 MPN: SG8A01060 | 2F-6*6*15*60MM(SG8A01060) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank d: 6
304-7376 MPN: SG8A01120 | 2F-12*12*30*80MM(SG8A01120) | Spec: 12.0 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 12
304-7978 MPN: SG8A0104012 | 2F-4*6*12*60MM(SG8A0104012) | Spec: 4.0 | Flute Length: 12 | Overall Length: 60 | Shank Diameter: 6
304-9374 MPN: SG8A01070 | 2F-7*8*18*65MM(SG8A01070) | Spec: 7.0 | Flute Length: 18 | Overall Length: 65 | Shank d: 8
305-6657 MPN: SG8A01080 | 2F-8*8*19*65MM(SG8A01080) | Spec: 8.0 | Flute Length: 19 | Overall Length: 65 | Shank Diameter: 8
305-6666 MPN: SG8A01050 | 2F-5*6*13*60MM(SG8A01050) | Spec: 5.0 | Flute Length: 13 | Overall Length: 60 | Shank Diameter: 6
305-6675 MPN: SG8A01030 | 2F-3*6*8*60MM(SG8A01030) | Spec: 3.0 | Flute Length: 8 | Overall Length: 60 | Shank Diameter: 6
305-6684 MPN: SG8A01040 | 2F-4*6*10*60MM(SG8A01040) | Spec: 4.0 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
305-7133 MPN: SG8A01090 | 2F-9*10*22*70MM(SG8A01090) | Spec: 9.0 | Flute Length: 22 | Overall Length: 70 | Shank Diameter: 10
305-7142 MPN: SG8A01110 | 2F-11*12*28*80MM(SG8A01110) | Spec: 11.0 | Flute Length: 28 | Overall Length: 80 | Shank Diameter: 12
305-8123 MPN: SG8A0102004 | 2F-2*6*4*50MM(SG8A0102004) | Spec: 2.0 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6
305-8141 MPN: SG8A0103006 | 2F-3*3*6*70MM(SG8A0103006) | Spec: 3.0 | Flute Length: 6 | Overall Length: 70 | Shank d: 3
305-8150 MPN: SG8A0104008 | 2F-4*4*8*80MM(SG8A0104008) | Spec: 4.0 | Flute Length: 8 | Overall Length: 80 | Shank Diameter: 4
305-8901 MPN: SG8A01020 | 2F-2*6*6*50MM(SG8A01020) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank d: 6
306-2913 MPN: SG8A01025 | 2F-2.5*6*7*50MM(SG8A01025) | Spec: 2.5 | Flute Length: 7 | Overall Length: 50 | Shank Diameter: 6
306-3754 MPN: SG8A0102008 | 2F-2*6*8*50MM(SG8A0102008) | Spec: 2.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6
306-3763 MPN: SG8A0103010 | 2F-3*6*10*60MM(SG8A0103010) | Spec: 3.0 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
306-7185 MPN: SG8A0101506 | 2F-1.5*6*6*50MM(SG8A0101506) | Spec: 1.5 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6
308-2999 MPN: SG8A0104016 | 2F-4*6*16*60MM(SG8A0104016) | Spec: 4.0 | Flute Length: 16 | Overall Length: 60 | Shank Diameter: 6
End MillsYG-1
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YG-1 SG8A01100 Carbide End Mill Carbide End Mill (X5070S)

Brand YG-1·End Mills

Available part numbers (20)

304-5101, 304-5341, 304-7376, 304-7978, 304-9374, 305-6657, 305-6666, 305-6675, 305-6684, 305-7133 + 10 more — see full table ↓

How to order

Send the YG-1 part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
304-5101MPN: SG8A01100 | 2F-10*10*25*70MM(SG8A01100) | Spec: 10.0 | Flute Length: 25 | Overall Length: 70 | Shank Diameter: 10
304-5341MPN: SG8A01060 | 2F-6*6*15*60MM(SG8A01060) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank d: 6
304-7376MPN: SG8A01120 | 2F-12*12*30*80MM(SG8A01120) | Spec: 12.0 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 12
304-7978MPN: SG8A0104012 | 2F-4*6*12*60MM(SG8A0104012) | Spec: 4.0 | Flute Length: 12 | Overall Length: 60 | Shank Diameter: 6
304-9374MPN: SG8A01070 | 2F-7*8*18*65MM(SG8A01070) | Spec: 7.0 | Flute Length: 18 | Overall Length: 65 | Shank d: 8
305-6657MPN: SG8A01080 | 2F-8*8*19*65MM(SG8A01080) | Spec: 8.0 | Flute Length: 19 | Overall Length: 65 | Shank Diameter: 8
305-6666MPN: SG8A01050 | 2F-5*6*13*60MM(SG8A01050) | Spec: 5.0 | Flute Length: 13 | Overall Length: 60 | Shank Diameter: 6
305-6675MPN: SG8A01030 | 2F-3*6*8*60MM(SG8A01030) | Spec: 3.0 | Flute Length: 8 | Overall Length: 60 | Shank Diameter: 6
305-6684MPN: SG8A01040 | 2F-4*6*10*60MM(SG8A01040) | Spec: 4.0 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
305-7133MPN: SG8A01090 | 2F-9*10*22*70MM(SG8A01090) | Spec: 9.0 | Flute Length: 22 | Overall Length: 70 | Shank Diameter: 10
305-7142MPN: SG8A01110 | 2F-11*12*28*80MM(SG8A01110) | Spec: 11.0 | Flute Length: 28 | Overall Length: 80 | Shank Diameter: 12
305-8123MPN: SG8A0102004 | 2F-2*6*4*50MM(SG8A0102004) | Spec: 2.0 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6
305-8141MPN: SG8A0103006 | 2F-3*3*6*70MM(SG8A0103006) | Spec: 3.0 | Flute Length: 6 | Overall Length: 70 | Shank d: 3
305-8150MPN: SG8A0104008 | 2F-4*4*8*80MM(SG8A0104008) | Spec: 4.0 | Flute Length: 8 | Overall Length: 80 | Shank Diameter: 4
305-8901MPN: SG8A01020 | 2F-2*6*6*50MM(SG8A01020) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank d: 6
306-2913MPN: SG8A01025 | 2F-2.5*6*7*50MM(SG8A01025) | Spec: 2.5 | Flute Length: 7 | Overall Length: 50 | Shank Diameter: 6
306-3754MPN: SG8A0102008 | 2F-2*6*8*50MM(SG8A0102008) | Spec: 2.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6
306-3763MPN: SG8A0103010 | 2F-3*6*10*60MM(SG8A0103010) | Spec: 3.0 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
306-7185MPN: SG8A0101506 | 2F-1.5*6*6*50MM(SG8A0101506) | Spec: 1.5 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6
308-2999MPN: SG8A0104016 | 2F-4*6*16*60MM(SG8A0104016) | Spec: 4.0 | Flute Length: 16 | Overall Length: 60 | Shank Diameter: 6
