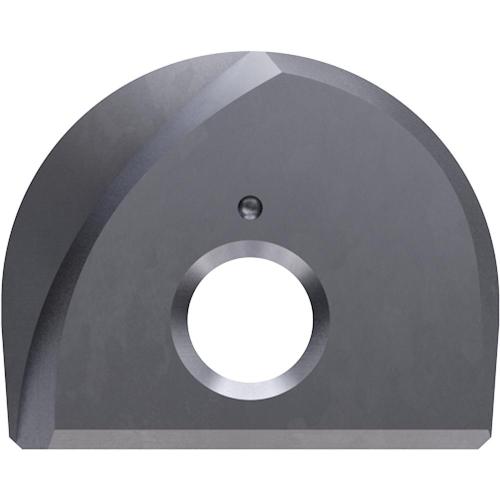

• YG-1 XMB120C210S Insert IX Mill Carbide Ball Insert
1 1

YG-1 XMB120C210S Insert IX Mill Carbide Ball Insert

YG-1 XMB120C210S Insert IX Mill Carbide Ball Insert

IX Mill Carbide Ball Insert from YG-1, sourced from Korea.

307-4194 MPN: XMB120C210S | 21.0*5.2*R10.5 General Purpose (XMB120C210S) | Height: 16.5 | Spec: 21.0 | Thickness: 5.2 | Corner Radius: 10.5
307-4945 MPN: XMB120C170S | 17.0*4.2*R8.5 General Purpose (XMB120C170S) | Height: 13.5 | Spec: 17.0 | Thickness: 4.2 | Corner Radius: 8.5
307-6679 MPN: XMB120C300S | 30.0*7.2*R15.0 General Purpose (XMB120C300S) | Height: 23.5 | Spec: 30.0 | Thickness: 7.2 | Corner Radius: 15.0
307-7872 MPN: XMB120C200S | 20.0*5.2*R10.0 General Purpose (XMB120C200S) | Height: 16.0 | Spec: 20.0 | Thickness: 5.2 | Corner Radius: 10.0
308-0016 MPN: XMB120C250S | 25.0*6.2*R12.5 General Purpose (XMB120C250S) | Height: 19.5 | Spec: 25.0 | Thickness: 6.2 | Corner R: 12.5
308-2175 MPN: XMB120C130S | 13.0*3.2*R6.5 General Purpose (XMB120C130S) | Height: 11.5 | Spec: 13.0 | Thickness: 3.2 | Corner R: 6.5
308-2403 MPN: XMB120C320S | 32.0*7.2*R6.0 General Purpose (XMB120C320S) | Height: 24.5 | Spec: 32.0 | Thickness: 7.2 | Corner R: 16.0
308-3086 MPN: XMB120C260S | 26.0*6.2*R13 General Purpose (XMB120C260S) | Height: 20.0 | Spec: 26.0 | Thickness: 6.2 | Corner Radius: 13.0
308-4483 MPN: XMB120C160S | 16.0*4.2*R8.0 General Purpose (XMB120C160S) | Height: 13.0 | Spec: 16.0 | Thickness: 4.2 | Corner Radius: 8.0
322-1127 MPN: XMB120C120S | 12.0*3.2*R6.0 General Purpose (XMB120C120S) | Height: 11.0 | Spec: 12.0 | Thickness: 3.2 | Corner Radius: 6.0
322-1668 MPN: XMB120C100S | 10.0*2.7*R5.0 General Purpose (XMB120C100S) | Height: 9.5 | Spec: 10.0 | Thickness: 2.7 | Corner R: 5.0
323-2460 MPN: XMB120C330S | 33.0*7.2*R16.5 General Purpose (XMB120C330S) | Height: 25.0 | Spec: 33.0 | Thickness: 7.2 | Corner Radius: 16.5
323-5838 MPN: XMB120C080S | 8.0*2.4*R4.0 General Purpose (XMB120C080S) | Height: 8.0 | Spec: 8.0 | Thickness: 2.4 | Corner Radius: 4.0
Carbide Inserts & HoldersYG-1
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YG-1 XMB120C210S Insert IX Mill Carbide Ball Insert

Brand YG-1·Carbide Inserts & Holders

Available part numbers (13)

307-4194, 307-4945, 307-6679, 307-7872, 308-0016, 308-2175, 308-2403, 308-3086, 308-4483, 322-1127 + 3 more — see full table ↓

How to order

Send the YG-1 part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
307-4194MPN: XMB120C210S | 21.0*5.2*R10.5 General Purpose (XMB120C210S) | Height: 16.5 | Spec: 21.0 | Thickness: 5.2 | Corner Radius: 10.5
307-4945MPN: XMB120C170S | 17.0*4.2*R8.5 General Purpose (XMB120C170S) | Height: 13.5 | Spec: 17.0 | Thickness: 4.2 | Corner Radius: 8.5
307-6679MPN: XMB120C300S | 30.0*7.2*R15.0 General Purpose (XMB120C300S) | Height: 23.5 | Spec: 30.0 | Thickness: 7.2 | Corner Radius: 15.0
307-7872MPN: XMB120C200S | 20.0*5.2*R10.0 General Purpose (XMB120C200S) | Height: 16.0 | Spec: 20.0 | Thickness: 5.2 | Corner Radius: 10.0
308-0016MPN: XMB120C250S | 25.0*6.2*R12.5 General Purpose (XMB120C250S) | Height: 19.5 | Spec: 25.0 | Thickness: 6.2 | Corner R: 12.5
308-2175MPN: XMB120C130S | 13.0*3.2*R6.5 General Purpose (XMB120C130S) | Height: 11.5 | Spec: 13.0 | Thickness: 3.2 | Corner R: 6.5
308-2403MPN: XMB120C320S | 32.0*7.2*R6.0 General Purpose (XMB120C320S) | Height: 24.5 | Spec: 32.0 | Thickness: 7.2 | Corner R: 16.0
308-3086MPN: XMB120C260S | 26.0*6.2*R13 General Purpose (XMB120C260S) | Height: 20.0 | Spec: 26.0 | Thickness: 6.2 | Corner Radius: 13.0
308-4483MPN: XMB120C160S | 16.0*4.2*R8.0 General Purpose (XMB120C160S) | Height: 13.0 | Spec: 16.0 | Thickness: 4.2 | Corner Radius: 8.0
322-1127MPN: XMB120C120S | 12.0*3.2*R6.0 General Purpose (XMB120C120S) | Height: 11.0 | Spec: 12.0 | Thickness: 3.2 | Corner Radius: 6.0
322-1668MPN: XMB120C100S | 10.0*2.7*R5.0 General Purpose (XMB120C100S) | Height: 9.5 | Spec: 10.0 | Thickness: 2.7 | Corner R: 5.0
323-2460MPN: XMB120C330S | 33.0*7.2*R16.5 General Purpose (XMB120C330S) | Height: 25.0 | Spec: 33.0 | Thickness: 7.2 | Corner Radius: 16.5
323-5838MPN: XMB120C080S | 8.0*2.4*R4.0 General Purpose (XMB120C080S) | Height: 8.0 | Spec: 8.0 | Thickness: 2.4 | Corner Radius: 4.0

Need a different model, or a part not listed here? Send us your parts list →
