• Yuken — 03 Series Modular Mounting Bolt Kit
1 1

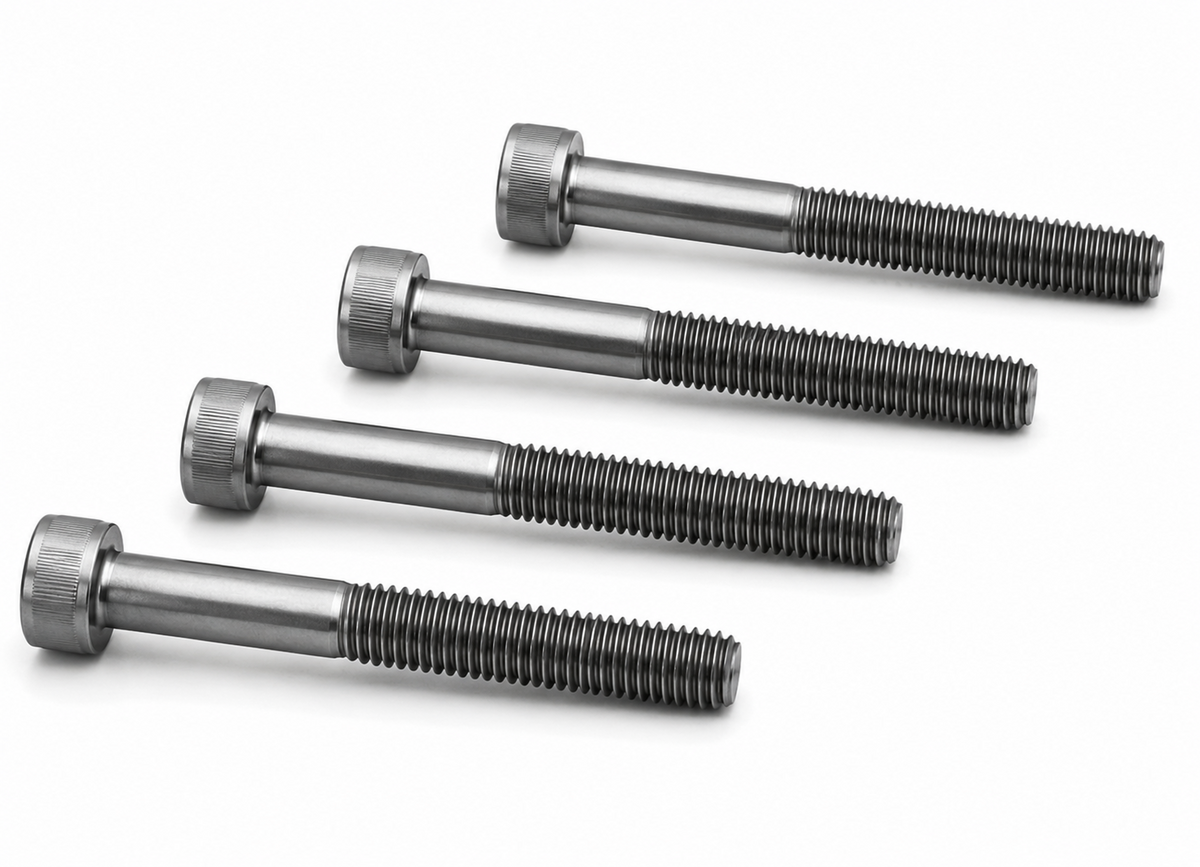

Yuken — 03 Series Modular Mounting Bolt Kit

Yuken — 03 Series Modular Mounting Bolt Kit

03 Series Modular Valves — Modular Mounting Bolt Kit.

Key features

  • Sandwich/stack mounting
  • Detailed specifications by inquiry
MBK-03-*-10 Mounting bolt kit 03 | Series: 03 Modular | Type: Bolt kit | Length: per stack - RFQ
MBK-03-01-10 Mounting bolt kit, code 01 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 01: 103 mm (1 valve stack)
MBK-03-02-10 Mounting bolt kit, code 02 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 02: 158 mm (2)
MBK-03-03-10 Mounting bolt kit, code 03 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 03: 213 mm (3)
MBK-03-04-10 Mounting bolt kit, code 04 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 04: 268 mm (4)
MBK-03-05-10 Mounting bolt kit, code 05 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 05: hex bolt M6×35L
Base Plates & MountingYuken
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken — 03 Series Modular Mounting Bolt Kit

Brand Yuken·Base Plates & Mounting

Available part numbers (6)

MBK-03-*-10, MBK-03-01-10, MBK-03-02-10, MBK-03-03-10, MBK-03-04-10, MBK-03-05-10

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MBK-03-*-10Mounting bolt kit 03 | Series: 03 Modular | Type: Bolt kit | Length: per stack - RFQ
MBK-03-01-10Mounting bolt kit, code 01 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 01: 103 mm (1 valve stack)
MBK-03-02-10Mounting bolt kit, code 02 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 02: 158 mm (2)
MBK-03-03-10Mounting bolt kit, code 03 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 03: 213 mm (3)
MBK-03-04-10Mounting bolt kit, code 04 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 04: 268 mm (4)
MBK-03-05-10Mounting bolt kit, code 05 | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (4 studs + 4 nuts / set) | Bolt Code: 05: hex bolt M6×35L
