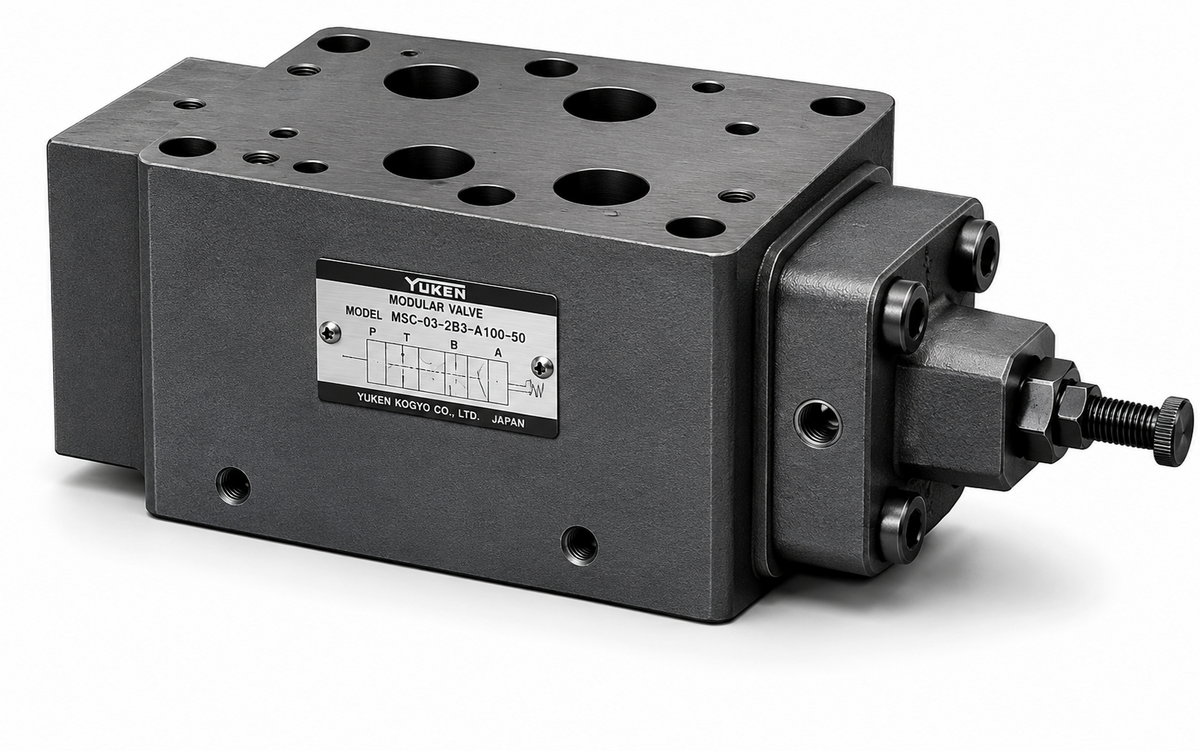

• Yuken — 06 Series Reducing Modular Valve (Sandwich Type)
1 1

Yuken — 06 Series Reducing Modular Valve (Sandwich Type)

Yuken — 06 Series Reducing Modular Valve (Sandwich Type)

06 (3/4) Series Reducing Modular Valves.

Key features

  • Sandwich/stack mounting (ISO 4401)
  • P/A/B-line, pressure ranges A/B/C/H
  • Max 35 MPa / 500 L/min

Specifications

Series 06 (3/4) Modular
Mounting Sandwich/stack (ISO 4401)
Max Pressure 35 MPa
MRP-06-A-70 Reducing modular valve, P-line, range A | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 125 L/min
MRP-06-B-70 Reducing modular valve, P-line, range B | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRP-06-C-70 Reducing modular valve, P-line, range C | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRP-06-H-70 Reducing modular valve, P-line, range H | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRA-06-A-70 Reducing modular valve, A-line, range A | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 125 L/min
MRA-06-B-70 Reducing modular valve, A-line, range B | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRA-06-C-70 Reducing modular valve, A-line, range C | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRA-06-H-70 Reducing modular valve, A-line, range H | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRB-06-A-70 Reducing modular valve, B-line, range A | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 125 L/min
MRB-06-B-70 Reducing modular valve, B-line, range B | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRB-06-C-70 Reducing modular valve, B-line, range C | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRB-06-H-70 Reducing modular valve, B-line, range H | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
Pressure Control ModularYuken
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken — 06 Series Reducing Modular Valve (Sandwich Type)

Brand Yuken·Pressure Control Modular

Available part numbers (12)

MRP-06-A-70, MRP-06-B-70, MRP-06-C-70, MRP-06-H-70, MRA-06-A-70, MRA-06-B-70, MRA-06-C-70, MRA-06-H-70, MRB-06-A-70, MRB-06-B-70 + 2 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MRP-06-A-70Reducing modular valve, P-line, range A | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 125 L/min
MRP-06-B-70Reducing modular valve, P-line, range B | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRP-06-C-70Reducing modular valve, P-line, range C | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRP-06-H-70Reducing modular valve, P-line, range H | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRA-06-A-70Reducing modular valve, A-line, range A | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 125 L/min
MRA-06-B-70Reducing modular valve, A-line, range B | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRA-06-C-70Reducing modular valve, A-line, range C | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRA-06-H-70Reducing modular valve, A-line, range H | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRB-06-A-70Reducing modular valve, B-line, range A | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 125 L/min
MRB-06-B-70Reducing modular valve, B-line, range B | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRB-06-C-70Reducing modular valve, B-line, range C | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
MRB-06-H-70Reducing modular valve, B-line, range H | Series: 06 (3/4) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 500 L/min
