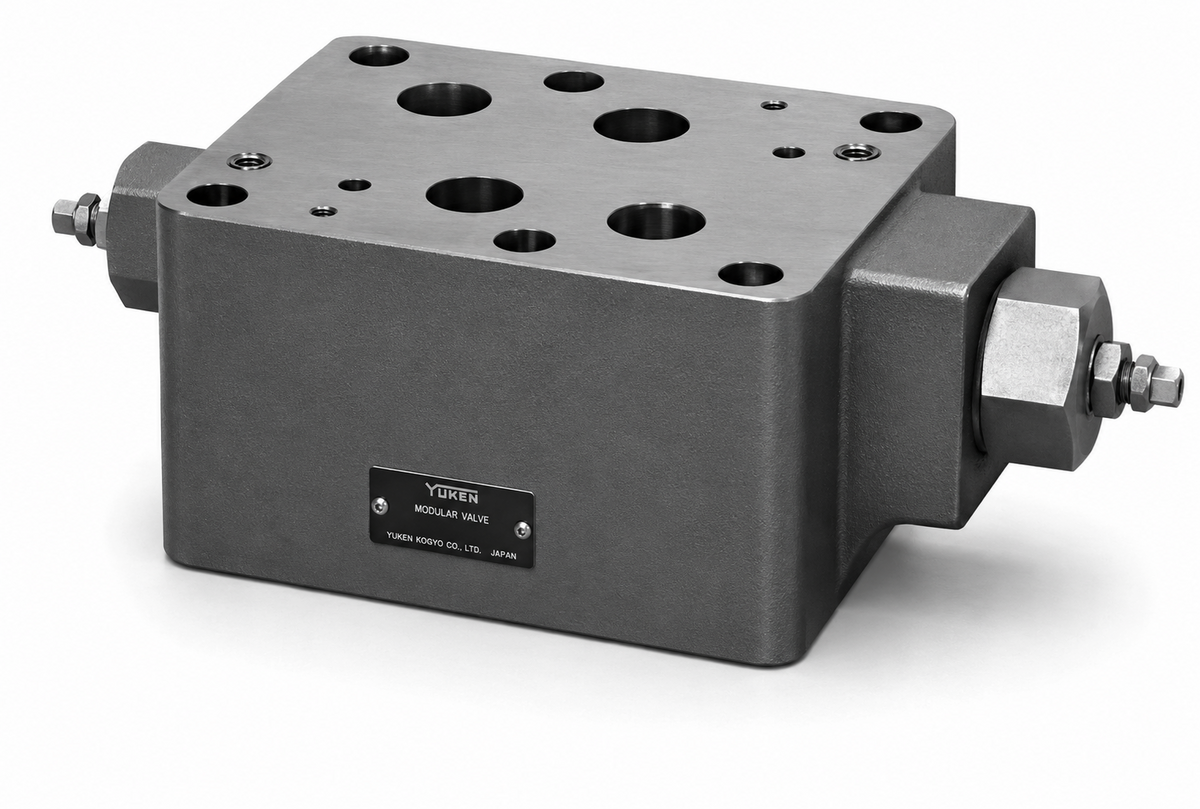

Yuken — 10 Series Throttle & Check Modular Valve (Sandwich Type)

Yuken — 10 Series Throttle & Check Modular Valve (Sandwich Type)

10 (1¼) Series Throttle and Check Modular Valves.

Key features

  • Sandwich/stack mounting (ISO 4401)
  • A/B/A·B-line, meter-out (X) / meter-in (Y)
  • Max 25 MPa / 800 L/min

Specifications

Series 10 (1¼) Modular
Mounting Sandwich/stack (ISO 4401)
Throttle Adjustment screw (continuous)
Max Pressure 25 MPa
Max Flow 800 L/min
MSA-10-X-30 Throttle & check modular valve, A-line, meter-out | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSA-10-Y-30 Throttle & check modular valve, A-line, meter-in | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSB-10-X-30 Throttle & check modular valve, B-line, meter-out | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (B-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSB-10-Y-30 Throttle & check modular valve, B-line, meter-in | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (B-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSW-10-X-30 Throttle & check modular valve, A·B-line, meter-out | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A·B-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSW-10-Y-30 Throttle & check modular valve, A·B-line, meter-in | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A·B-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
Flow Control ModularYuken
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken — 10 Series Throttle & Check Modular Valve (Sandwich Type)

Brand Yuken·Flow Control Modular

Available part numbers (6)

MSA-10-X-30, MSA-10-Y-30, MSB-10-X-30, MSB-10-Y-30, MSW-10-X-30, MSW-10-Y-30

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSA-10-X-30Throttle & check modular valve, A-line, meter-out | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSA-10-Y-30Throttle & check modular valve, A-line, meter-in | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSB-10-X-30Throttle & check modular valve, B-line, meter-out | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (B-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSB-10-Y-30Throttle & check modular valve, B-line, meter-in | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (B-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSW-10-X-30Throttle & check modular valve, A·B-line, meter-out | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A·B-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
MSW-10-Y-30Throttle & check modular valve, A·B-line, meter-in | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A·B-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min
