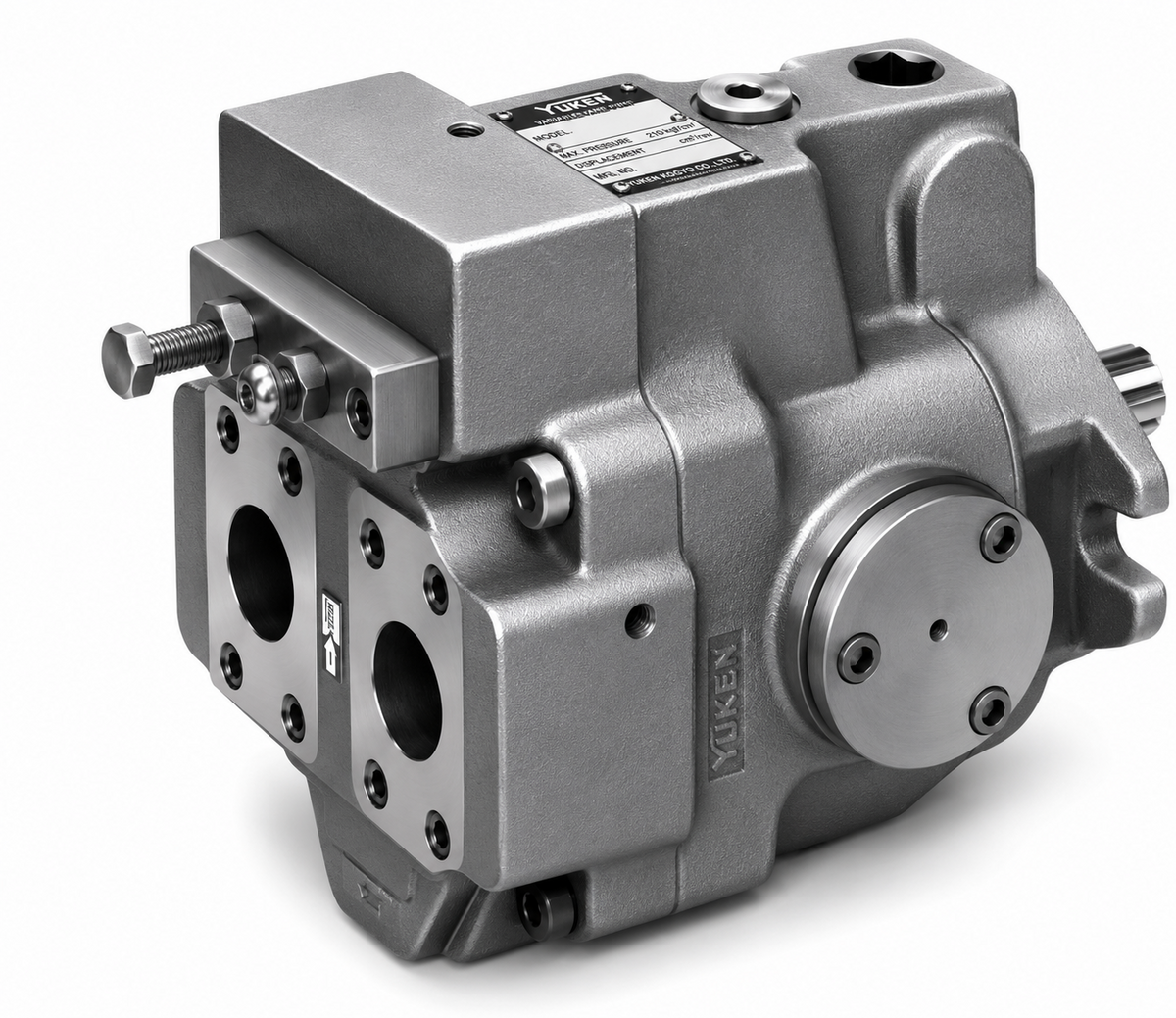

• Yuken A Series A16 Variable Displacement Piston Pump (Two-Pressure Two-Flow by Solenoid Valve, 15.8 cm3/rev)
1 1

Yuken A Series A16 Variable Displacement Piston Pump (Two-Pressure Two-Flow by Solenoid Valve, 15.8 cm3/rev)

Yuken A Series A16 Variable Displacement Piston Pump (Two-Pressure Two-Flow by Solenoid Valve, 15.8 cm3/rev)

"A" Series Variable Displacement Piston Pumps - Single Pump, Two-Pressure Two-Flow Control Type By Solenoid Valve.

Specifications

Series A
Frame A16
Geometric Displacement 15.8 cm3/rev
Direction of Rotation Clockwise (viewed from shaft end)
Control Type Two-Pressure Two-Flow by Solenoid Valve (06)
Port Position Side port
Shaft End Parallel key (K)
High-Flow Range (QH) 2.6-15.8 cm3/rev
Low-Flow Range (QL) 2.6-11.1 cm3/rev
Flow Setting Two-flow setpoints (QH/QL) specified at order (RFQ)
Solenoid Coil Specify at order (AC/DC, RFQ)
Design Number 33
A16-F-R-06-S-K-33 Yuken A16 (15.8 cm3/rev) Two-Pressure Two-Flow by Solenoid Valve, Flange mount, side port | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Two-Pressure Two-Flow by Solenoid Valve (06) | Port Position: Side port | Shaft End: Parallel key (K) | High-Flow Range (QH): 2.6-15.8 cm3/rev | Low-Flow Range (QL): 2.6-11.1 cm3/rev | Flow Setting: Two-flow setpoints (QH/QL) specified at order (RFQ) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 33 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min
A16-L-R-06-S-K-33 Yuken A16 (15.8 cm3/rev) Two-Pressure Two-Flow by Solenoid Valve, Foot mount, side port | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Two-Pressure Two-Flow by Solenoid Valve (06) | Port Position: Side port | Shaft End: Parallel key (K) | High-Flow Range (QH): 2.6-15.8 cm3/rev | Low-Flow Range (QL): 2.6-11.1 cm3/rev | Flow Setting: Two-flow setpoints (QH/QL) specified at order (RFQ) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 33 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min
Piston PumpsYuken
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken A Series A16 Variable Displacement Piston Pump (Two-Pressure Two-Flow by Solenoid Valve, 15.8 cm3/rev)

Brand Yuken·Piston Pumps

Available part numbers (2)

A16-F-R-06-S-K-33, A16-L-R-06-S-K-33

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A16-F-R-06-S-K-33Yuken A16 (15.8 cm3/rev) Two-Pressure Two-Flow by Solenoid Valve, Flange mount, side port | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Two-Pressure Two-Flow by Solenoid Valve (06) | Port Position: Side port | Shaft End: Parallel key (K) | High-Flow Range (QH): 2.6-15.8 cm3/rev | Low-Flow Range (QL): 2.6-11.1 cm3/rev | Flow Setting: Two-flow setpoints (QH/QL) specified at order (RFQ) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 33 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min
A16-L-R-06-S-K-33Yuken A16 (15.8 cm3/rev) Two-Pressure Two-Flow by Solenoid Valve, Foot mount, side port | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Two-Pressure Two-Flow by Solenoid Valve (06) | Port Position: Side port | Shaft End: Parallel key (K) | High-Flow Range (QH): 2.6-15.8 cm3/rev | Low-Flow Range (QL): 2.6-11.1 cm3/rev | Flow Setting: Two-flow setpoints (QH/QL) specified at order (RFQ) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 33 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min
