• Yuken A Series A16 Variable Displacement Piston Pump (Unloading Pressure Compensator, 15.8 cm3/rev)
1 1

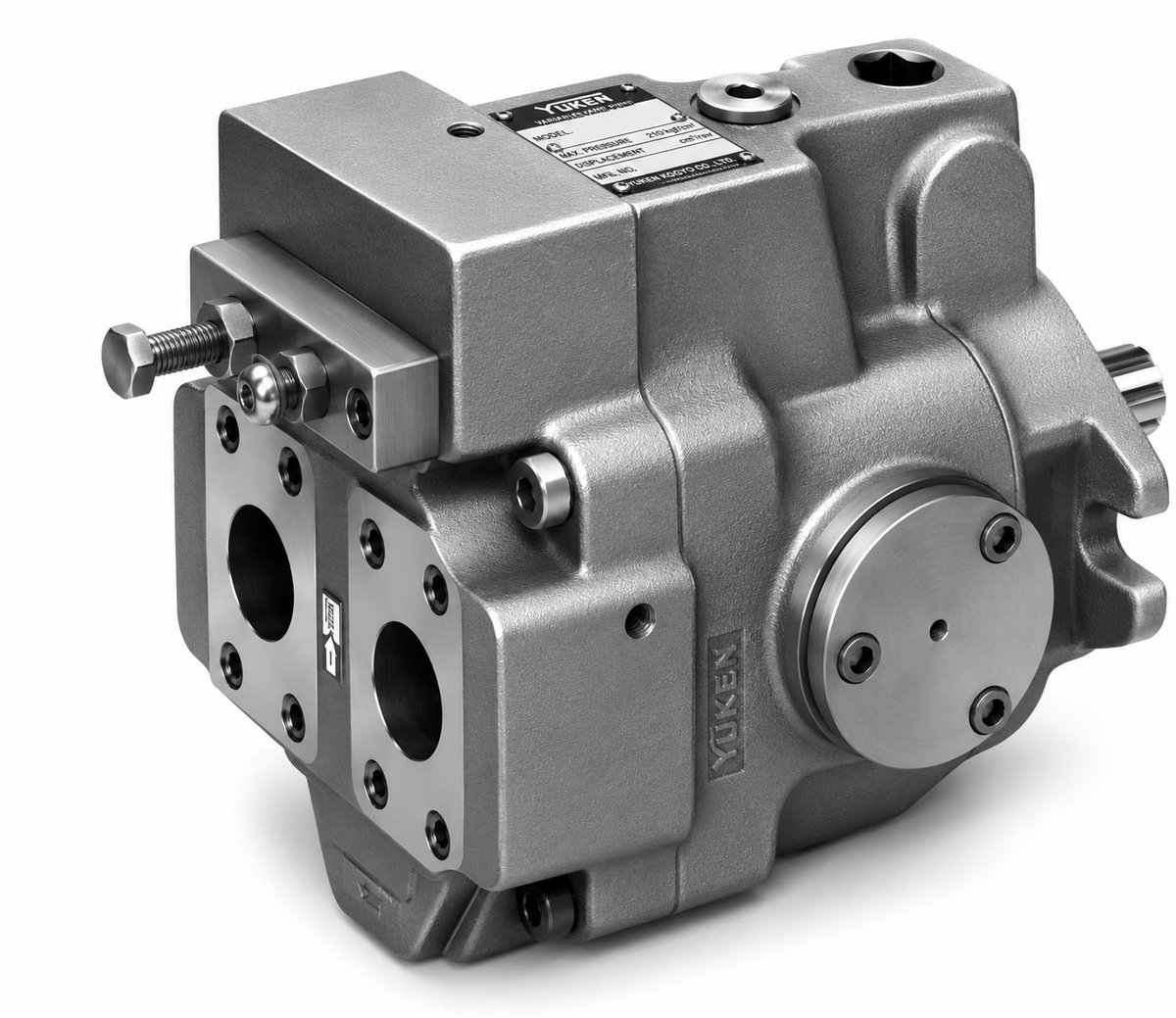

Yuken A Series A16 Variable Displacement Piston Pump (Unloading Pressure Compensator, 15.8 cm3/rev)

Yuken A Series A16 Variable Displacement Piston Pump (Unloading Pressure Compensator, 15.8 cm3/rev)

"A" Series Variable Displacement Piston Pumps - Single Pump, Pressure Compensator with Unloading Type.

Specifications

Series A
Frame A16
Geometric Displacement 15.8 cm3/rev
Min. Adjustment Flow 4 cm3/rev
Direction of Rotation Clockwise (viewed from shaft end)
Control Type Pressure Compensator with Unloading (03)
Shaft End Parallel key (K)
Solenoid Coil Specify at order (AC/DC, RFQ)
Design Number 32
Rated Pressure 16 MPa
Max. Working Pressure 21 MPa
Min. Adjustment Pressure 1.2 MPa
A16-F-R-03-K-32 Yuken A16 (15.8 cm3/rev) unloading, Flange mount, Axial port, coil specified at order | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Min. Adjustment Flow: 4 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator with Unloading (03) | Port Position: Axial port | Shaft End: Parallel key (K) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Min. Adjustment Pressure: 1.2 MPa | Allowable Speed: 600-1800 r/min
A16-F-R-03-S-K-32 Yuken A16 (15.8 cm3/rev) unloading, Flange mount, Side port, coil specified at order | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Min. Adjustment Flow: 4 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator with Unloading (03) | Port Position: Side port | Shaft End: Parallel key (K) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Min. Adjustment Pressure: 1.2 MPa | Allowable Speed: 600-1800 r/min
A16-L-R-03-K-32 Yuken A16 (15.8 cm3/rev) unloading, Foot mount, Axial port, coil specified at order | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Min. Adjustment Flow: 4 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator with Unloading (03) | Port Position: Axial port | Shaft End: Parallel key (K) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Min. Adjustment Pressure: 1.2 MPa | Allowable Speed: 600-1800 r/min
A16-L-R-03-S-K-32 Yuken A16 (15.8 cm3/rev) unloading, Foot mount, Side port, coil specified at order | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Min. Adjustment Flow: 4 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator with Unloading (03) | Port Position: Side port | Shaft End: Parallel key (K) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Min. Adjustment Pressure: 1.2 MPa | Allowable Speed: 600-1800 r/min
Piston PumpsYuken
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken A Series A16 Variable Displacement Piston Pump (Unloading Pressure Compensator, 15.8 cm3/rev)

Brand Yuken·Piston Pumps

Available part numbers (4)

A16-F-R-03-K-32, A16-F-R-03-S-K-32, A16-L-R-03-K-32, A16-L-R-03-S-K-32

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A16-F-R-03-K-32Yuken A16 (15.8 cm3/rev) unloading, Flange mount, Axial port, coil specified at order | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Min. Adjustment Flow: 4 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator with Unloading (03) | Port Position: Axial port | Shaft End: Parallel key (K) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Min. Adjustment Pressure: 1.2 MPa | Allowable Speed: 600-1800 r/min
A16-F-R-03-S-K-32Yuken A16 (15.8 cm3/rev) unloading, Flange mount, Side port, coil specified at order | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Min. Adjustment Flow: 4 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator with Unloading (03) | Port Position: Side port | Shaft End: Parallel key (K) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Min. Adjustment Pressure: 1.2 MPa | Allowable Speed: 600-1800 r/min
A16-L-R-03-K-32Yuken A16 (15.8 cm3/rev) unloading, Foot mount, Axial port, coil specified at order | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Min. Adjustment Flow: 4 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator with Unloading (03) | Port Position: Axial port | Shaft End: Parallel key (K) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Min. Adjustment Pressure: 1.2 MPa | Allowable Speed: 600-1800 r/min
A16-L-R-03-S-K-32Yuken A16 (15.8 cm3/rev) unloading, Foot mount, Side port, coil specified at order | Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Min. Adjustment Flow: 4 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator with Unloading (03) | Port Position: Side port | Shaft End: Parallel key (K) | Solenoid Coil: Specify at order (AC/DC, RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Min. Adjustment Pressure: 1.2 MPa | Allowable Speed: 600-1800 r/min

Need a different model, or a part not listed here? Send us your parts list →
