• Yuken A Series A37 Variable Displacement Piston Pump (Simple Two-Pressure Two-Flow, 36.9 cm3/rev)
1 1

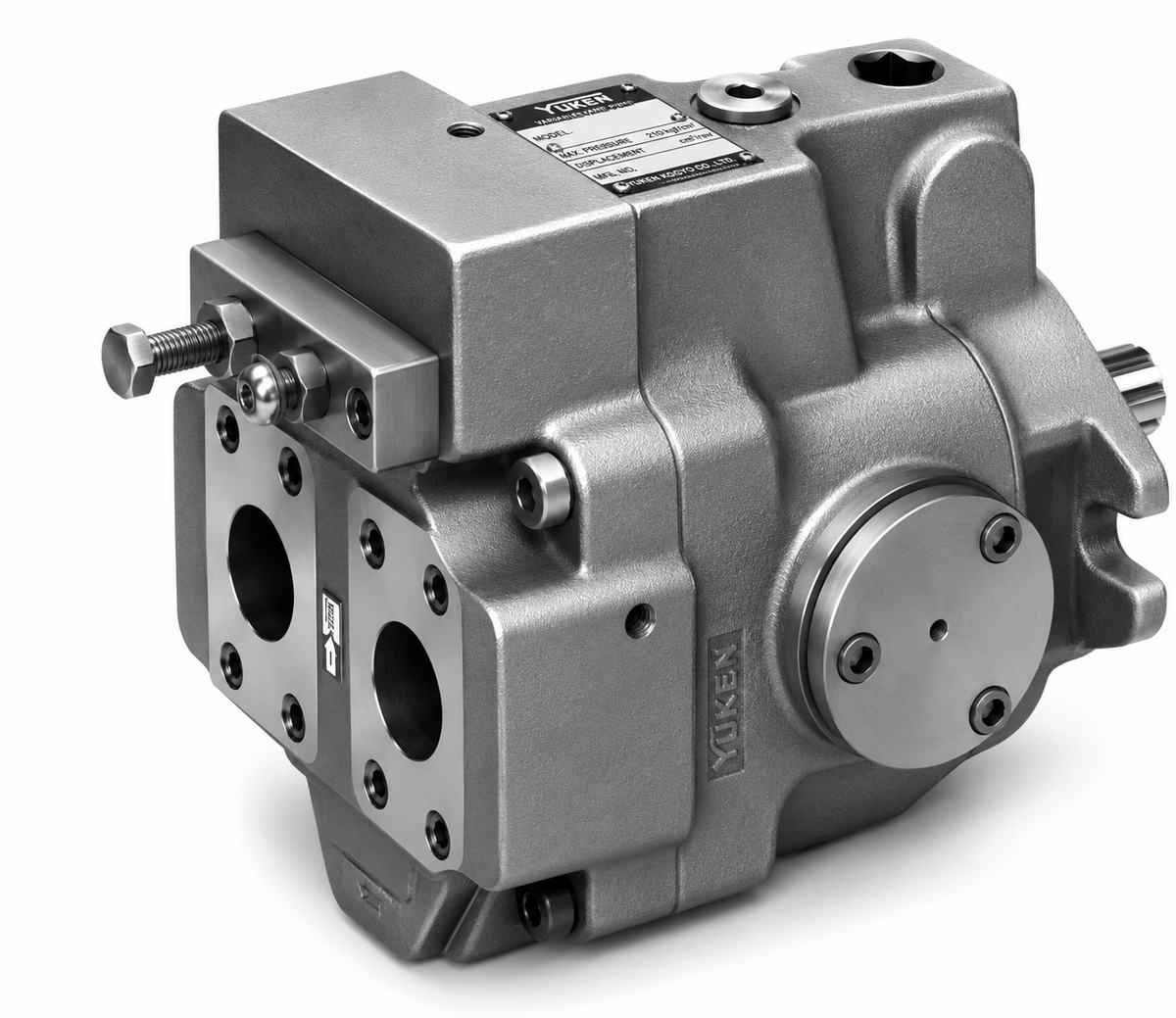

Yuken A Series A37 Variable Displacement Piston Pump (Simple Two-Pressure Two-Flow, 36.9 cm3/rev)

Yuken A Series A37 Variable Displacement Piston Pump (Simple Two-Pressure Two-Flow, 36.9 cm3/rev)

"A" Series Variable Displacement Piston Pumps - Single Pump, Simple Two-Pressure Two-Flow Control Type.

Specifications

Series A
Frame A37
Geometric Displacement 36.9 cm3/rev
Direction of Rotation Clockwise (viewed from shaft end)
Control Type Simple Two-Pressure Two-Flow (00-Z500)
Port Position Axial port
Pressure Adjustment Range H (1.2-21 MPa)
High-Flow Range (QH) 7-36.9 cm3/rev
Low-Flow Range (QL) 3-18 cm3/rev
Shaft End Parallel key (K)
Design Number 32500
Rated Pressure 16 MPa
A37-F-R-00-H-K-32500 Yuken A37 (36.9 cm3/rev) simple 2-pressure 2-flow, Flange mount, Axial port | Series: A | Frame: A37 | Geometric Displacement: 36.9 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Simple Two-Pressure Two-Flow (00-Z500) | Port Position: Axial port | Pressure Adjustment Range: H (1.2-21 MPa) | High-Flow Range (QH): 7-36.9 cm3/rev | Low-Flow Range (QL): 3-18 cm3/rev | Shaft End: Parallel key (K) | Design Number: 32500 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Note: No full cutoff; external PH relief valve required on delivery line
A37-L-R-00-H-K-32500 Yuken A37 (36.9 cm3/rev) simple 2-pressure 2-flow, Foot mount, Axial port | Series: A | Frame: A37 | Geometric Displacement: 36.9 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Simple Two-Pressure Two-Flow (00-Z500) | Port Position: Axial port | Pressure Adjustment Range: H (1.2-21 MPa) | High-Flow Range (QH): 7-36.9 cm3/rev | Low-Flow Range (QL): 3-18 cm3/rev | Shaft End: Parallel key (K) | Design Number: 32500 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Note: No full cutoff; external PH relief valve required on delivery line
Piston PumpsYuken
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken A Series A37 Variable Displacement Piston Pump (Simple Two-Pressure Two-Flow, 36.9 cm3/rev)

Brand Yuken·Piston Pumps

Available part numbers (2)

A37-F-R-00-H-K-32500, A37-L-R-00-H-K-32500

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A37-F-R-00-H-K-32500Yuken A37 (36.9 cm3/rev) simple 2-pressure 2-flow, Flange mount, Axial port | Series: A | Frame: A37 | Geometric Displacement: 36.9 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Simple Two-Pressure Two-Flow (00-Z500) | Port Position: Axial port | Pressure Adjustment Range: H (1.2-21 MPa) | High-Flow Range (QH): 7-36.9 cm3/rev | Low-Flow Range (QL): 3-18 cm3/rev | Shaft End: Parallel key (K) | Design Number: 32500 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Note: No full cutoff; external PH relief valve required on delivery line
A37-L-R-00-H-K-32500Yuken A37 (36.9 cm3/rev) simple 2-pressure 2-flow, Foot mount, Axial port | Series: A | Frame: A37 | Geometric Displacement: 36.9 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Simple Two-Pressure Two-Flow (00-Z500) | Port Position: Axial port | Pressure Adjustment Range: H (1.2-21 MPa) | High-Flow Range (QH): 7-36.9 cm3/rev | Low-Flow Range (QL): 3-18 cm3/rev | Shaft End: Parallel key (K) | Design Number: 32500 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Note: No full cutoff; external PH relief valve required on delivery line
