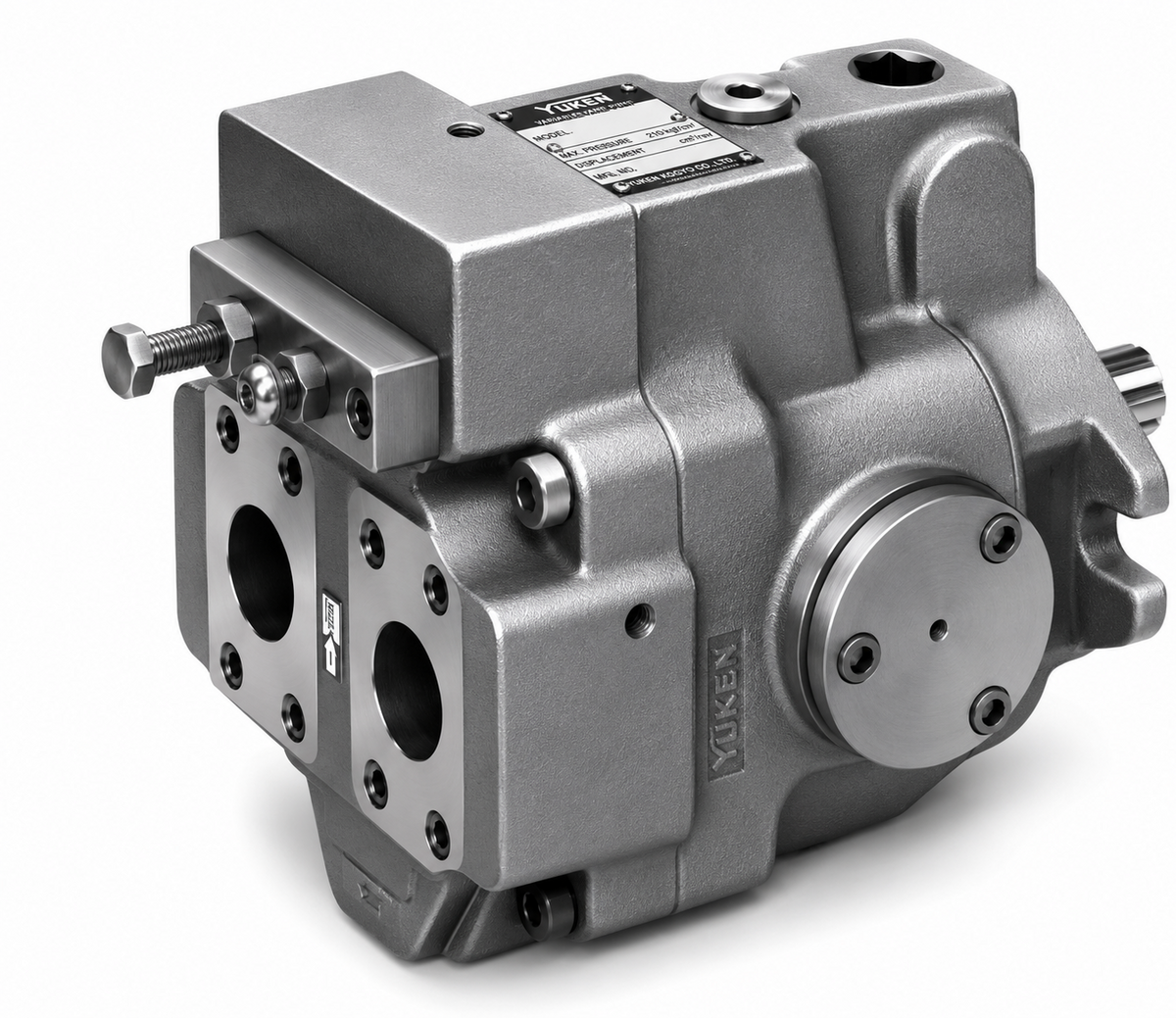

• Yuken A Series A37 Variable Displacement Piston Pump (Two-Pressure Two-Flow by System Pressure, 36.9 cm3/rev)
1 1

Yuken A Series A37 Variable Displacement Piston Pump (Two-Pressure Two-Flow by System Pressure, 36.9 cm3/rev)

Yuken A Series A37 Variable Displacement Piston Pump (Two-Pressure Two-Flow by System Pressure, 36.9 cm3/rev)

"A" Series Variable Displacement Piston Pumps - Single Pump, Two-Pressure Two-Flow Control Type By System Pressure.

Specifications

Series A
Frame A37
Geometric Displacement 36.9 cm3/rev
Direction of Rotation Clockwise (viewed from shaft end)
Control Type Two-Pressure Two-Flow by System Pressure (05)
Port Position Side port
Shaft End Parallel key (K)
High-Flow Range (QH) 4.1-36.9 cm3/rev
Low-Flow Range (QL) 4.1-20.1 cm3/rev
Flow Setting Two-flow setpoints (QH/QL) specified at order (RFQ)
Design Number 32
Rated Pressure 16 MPa
A37-F-R-05-S-K-32 Yuken A37 (36.9 cm3/rev) Two-Pressure Two-Flow by System Pressure, Flange mount, side port | Series: A | Frame: A37 | Geometric Displacement: 36.9 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Two-Pressure Two-Flow by System Pressure (05) | Port Position: Side port | Shaft End: Parallel key (K) | High-Flow Range (QH): 4.1-36.9 cm3/rev | Low-Flow Range (QL): 4.1-20.1 cm3/rev | Flow Setting: Two-flow setpoints (QH/QL) specified at order (RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min
A37-L-R-05-S-K-32 Yuken A37 (36.9 cm3/rev) Two-Pressure Two-Flow by System Pressure, Foot mount, side port | Series: A | Frame: A37 | Geometric Displacement: 36.9 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Two-Pressure Two-Flow by System Pressure (05) | Port Position: Side port | Shaft End: Parallel key (K) | High-Flow Range (QH): 4.1-36.9 cm3/rev | Low-Flow Range (QL): 4.1-20.1 cm3/rev | Flow Setting: Two-flow setpoints (QH/QL) specified at order (RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min
Piston PumpsYuken
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken A Series A37 Variable Displacement Piston Pump (Two-Pressure Two-Flow by System Pressure, 36.9 cm3/rev)

Brand Yuken·Piston Pumps

Available part numbers (2)

A37-F-R-05-S-K-32, A37-L-R-05-S-K-32

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A37-F-R-05-S-K-32Yuken A37 (36.9 cm3/rev) Two-Pressure Two-Flow by System Pressure, Flange mount, side port | Series: A | Frame: A37 | Geometric Displacement: 36.9 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Two-Pressure Two-Flow by System Pressure (05) | Port Position: Side port | Shaft End: Parallel key (K) | High-Flow Range (QH): 4.1-36.9 cm3/rev | Low-Flow Range (QL): 4.1-20.1 cm3/rev | Flow Setting: Two-flow setpoints (QH/QL) specified at order (RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min
A37-L-R-05-S-K-32Yuken A37 (36.9 cm3/rev) Two-Pressure Two-Flow by System Pressure, Foot mount, side port | Series: A | Frame: A37 | Geometric Displacement: 36.9 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Two-Pressure Two-Flow by System Pressure (05) | Port Position: Side port | Shaft End: Parallel key (K) | High-Flow Range (QH): 4.1-36.9 cm3/rev | Low-Flow Range (QL): 4.1-20.1 cm3/rev | Flow Setting: Two-flow setpoints (QH/QL) specified at order (RFQ) | Design Number: 32 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min

Need a different model, or a part not listed here? Send us your parts list →
