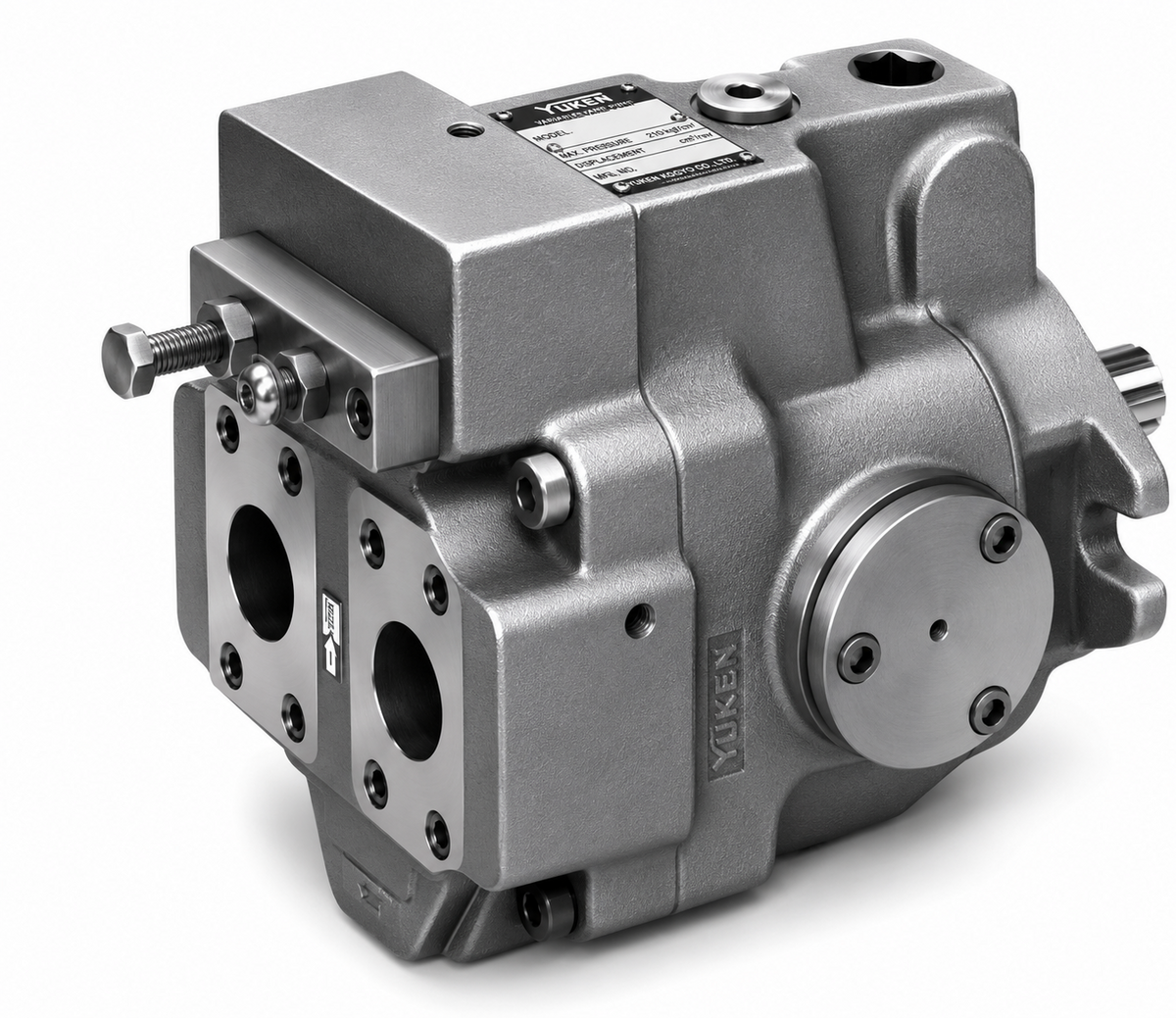

• Yuken A Series A70 Variable Displacement Piston Pump (Simple Two-Pressure Two-Flow, 70.0 cm3/rev)
1 1

Yuken A Series A70 Variable Displacement Piston Pump (Simple Two-Pressure Two-Flow, 70.0 cm3/rev)

Yuken A Series A70 Variable Displacement Piston Pump (Simple Two-Pressure Two-Flow, 70.0 cm3/rev)

"A" Series Variable Displacement Piston Pumps - Single Pump, Simple Two-Pressure Two-Flow Control Type.

Specifications

Series A
Frame A70
Geometric Displacement 70.0 cm3/rev
Direction of Rotation Clockwise (viewed from shaft end)
Control Type Simple Two-Pressure Two-Flow (00-Z500)
Port Position Side port
Pressure Adjustment Range H (2-21 MPa)
High-Flow Range (QH) 36-70.0 cm3/rev
Low-Flow Range (QL) up to 24 cm3/rev (lower limit per external relief valve)
Design Number 60500
Rated Pressure 21 MPa
Max. Working Pressure 21 MPa
A70-FR00HS-60500 Yuken A70 (70.0 cm3/rev) simple 2-pressure 2-flow, Flange mount, Side port | Series: A | Frame: A70 | Geometric Displacement: 70.0 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Simple Two-Pressure Two-Flow (00-Z500) | Port Position: Side port | Pressure Adjustment Range: H (2-21 MPa) | High-Flow Range (QH): 36-70.0 cm3/rev | Low-Flow Range (QL): up to 24 cm3/rev (lower limit per external relief valve) | Design Number: 60500 | Rated Pressure: 21 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Note: No full cutoff; external PH relief valve required on delivery line
A70-LR00HS-60500 Yuken A70 (70.0 cm3/rev) simple 2-pressure 2-flow, Foot mount, Side port | Series: A | Frame: A70 | Geometric Displacement: 70.0 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Simple Two-Pressure Two-Flow (00-Z500) | Port Position: Side port | Pressure Adjustment Range: H (2-21 MPa) | High-Flow Range (QH): 36-70.0 cm3/rev | Low-Flow Range (QL): up to 24 cm3/rev (lower limit per external relief valve) | Design Number: 60500 | Rated Pressure: 21 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Note: No full cutoff; external PH relief valve required on delivery line
Piston PumpsYuken
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken A Series A70 Variable Displacement Piston Pump (Simple Two-Pressure Two-Flow, 70.0 cm3/rev)

Brand Yuken·Piston Pumps

Available part numbers (2)

A70-FR00HS-60500, A70-LR00HS-60500

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A70-FR00HS-60500Yuken A70 (70.0 cm3/rev) simple 2-pressure 2-flow, Flange mount, Side port | Series: A | Frame: A70 | Geometric Displacement: 70.0 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Simple Two-Pressure Two-Flow (00-Z500) | Port Position: Side port | Pressure Adjustment Range: H (2-21 MPa) | High-Flow Range (QH): 36-70.0 cm3/rev | Low-Flow Range (QL): up to 24 cm3/rev (lower limit per external relief valve) | Design Number: 60500 | Rated Pressure: 21 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Note: No full cutoff; external PH relief valve required on delivery line
A70-LR00HS-60500Yuken A70 (70.0 cm3/rev) simple 2-pressure 2-flow, Foot mount, Side port | Series: A | Frame: A70 | Geometric Displacement: 70.0 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Simple Two-Pressure Two-Flow (00-Z500) | Port Position: Side port | Pressure Adjustment Range: H (2-21 MPa) | High-Flow Range (QH): 36-70.0 cm3/rev | Low-Flow Range (QL): up to 24 cm3/rev (lower limit per external relief valve) | Design Number: 60500 | Rated Pressure: 21 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Note: No full cutoff; external PH relief valve required on delivery line

Need a different model, or a part not listed here? Send us your parts list →
