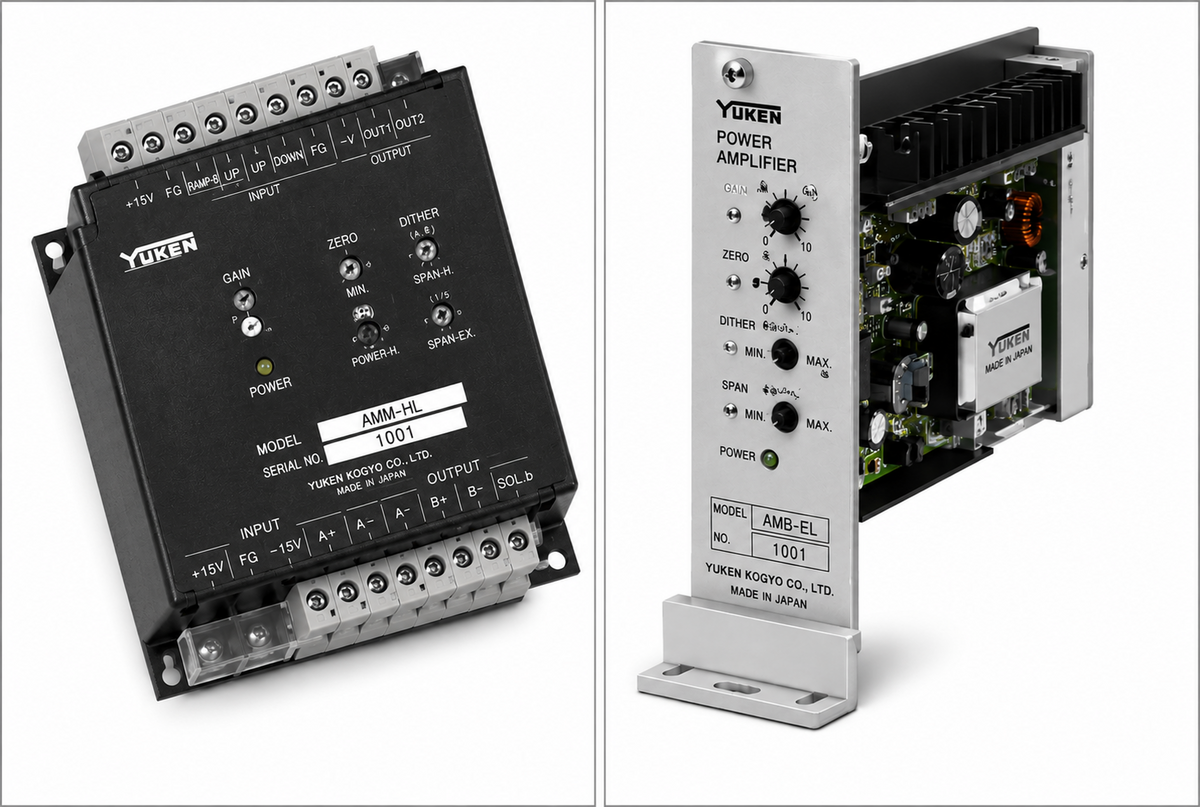

Yuken AMB-EL-01 Eurocard High-Response Power Amplifier (for ELDFG-01, compensation by inquiry)

Yuken AMB-EL-01 Eurocard High-Response Power Amplifier (for ELDFG-01, compensation by inquiry)

High Response Type Power Amplifiers For Directional and Flow Control Valves.

Key features

  • AMB-EL Eurocard (3U, 100×160 mm) amplifier for the high-response valve ELDFG-01
  • For valve size 01 the compensation code is specified separately by inquiry (RFQ); spool form (3C2/3C40 or 3C2P) and I/O code (A–F: voltage ±10 V / current 4–20 mA / current ±10 mA, PBAT or PABT) are selected to match the valve
  • Max output current 2.5 A, supply DC21–28 V, 30 W, mass 280 g, open-collector alarm
  • Please consult with the matched ELDFG-01 specification

Specifications

Type Eurocard high-response power amplifier (compensation by inquiry)
Brand Yuken
Model AMB-EL-01
Function EL (minor-feedback DC-input, Eurocard 3U)
Compatible Valve Size 01
Compensation By separate inquiry (RFQ)
Spool Form 3C2/3C40 or 3C2P (per valve)
I/O Code A–F (voltage ±10 V / current 4–20 mA / current ±10 mA; PBAT or PABT) per valve
Max Output Current 2.5 A
Power Supply DC21–28 V
Power Consumption 30 W
Mass 280 g
AMB-EL-01 Yuken AMB-EL-01 Eurocard high-response amplifier for ELDFG-01 (compensation by inquiry, RFQ) | Type: Eurocard high-response power amplifier (compensation by inquiry) | Brand: Yuken | Model: AMB-EL-01 | Function: EL (minor-feedback DC-input, Eurocard 3U) | Compatible Valve Size: 01 | Compensation: By separate inquiry (RFQ) | Spool Form: 3C2/3C40 or 3C2P (per valve) | I/O Code: A–F (voltage ±10 V / current 4–20 mA / current ±10 mA; PBAT or PABT) per valve | Max Output Current: 2.5 A | Power Supply: DC21–28 V | Power Consumption: 30 W | Mass: 280 g | Alarm: open collector max DC30V/10 mA | Drives: ELDFG-01 | Design No.: 20 | Note: Compensation/spool/I/O specified per matched valve — RFQ
Proportional Valve AmplifiersYuken
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken AMB-EL-01 Eurocard High-Response Power Amplifier (for ELDFG-01, compensation by inquiry)

Brand Yuken·Proportional Valve Amplifiers

Available part numbers (1)

AMB-EL-01
