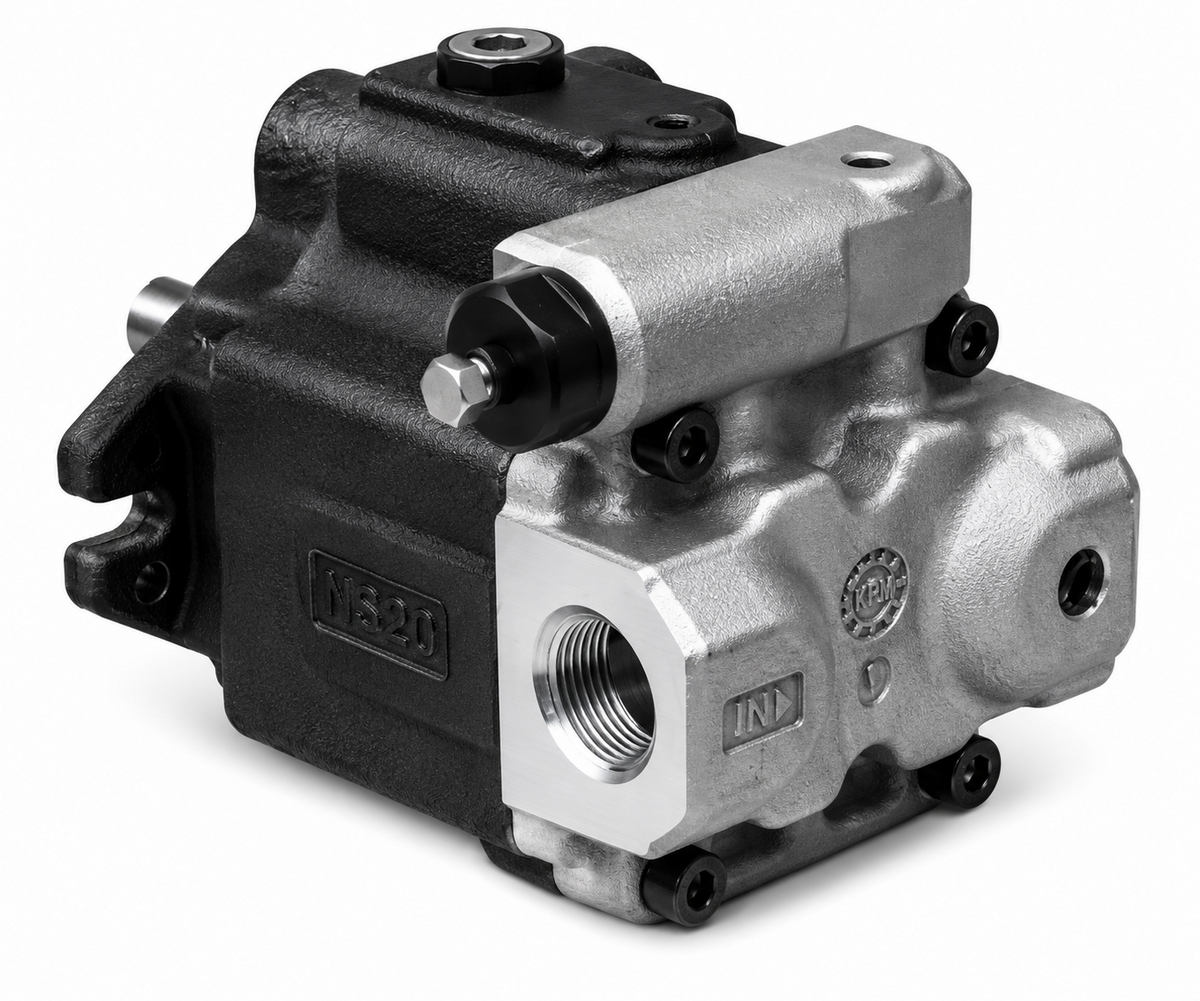

Yuken ARL1 Series Variable Displacement Piston Pump (Pressure Compensator, 6.2-16.3 cm3/rev)

Yuken ARL1 Series Variable Displacement Piston Pump (Pressure Compensator, 6.2-16.3 cm3/rev)

"ARL1" Series Piston Pumps - Single Pump, Pressure Compensator Type.

Specifications

Series ARL1
Direction of Rotation Clockwise (viewed from shaft end)
Control Type Pressure Compensator
Design Number 10
Min. Adjustment Pressure 1.2 MPa
Max. Working Pressure 7 MPa
Allowable Speed 600-1800 r/min
Port Connections Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-6-FR01S-10 Yuken ARL1-6 (6.2 cm3/rev), Flange mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-6-FR01A-10 Yuken ARL1-6 (6.2 cm3/rev), Flange mount, Suction port downward | Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-6-LR01S-10 Yuken ARL1-6 (6.2 cm3/rev), Foot mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-FR01S-10 Yuken ARL1-8 (8.5 cm3/rev), Flange mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-FR01A-10 Yuken ARL1-8 (8.5 cm3/rev), Flange mount, Suction port downward | Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-LR01S-10 Yuken ARL1-8 (8.5 cm3/rev), Foot mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-FR01S-10 Yuken ARL1-12 (12.3 cm3/rev), Flange mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-FR01A-10 Yuken ARL1-12 (12.3 cm3/rev), Flange mount, Suction port downward | Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-LR01S-10 Yuken ARL1-12 (12.3 cm3/rev), Foot mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-FR01S-10 Yuken ARL1-16 (16.3 cm3/rev), Flange mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-FR01A-10 Yuken ARL1-16 (16.3 cm3/rev), Flange mount, Suction port downward | Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-LR01S-10 Yuken ARL1-16 (16.3 cm3/rev), Foot mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
Piston PumpsYuken
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken ARL1 Series Variable Displacement Piston Pump (Pressure Compensator, 6.2-16.3 cm3/rev)

Brand Yuken·Piston Pumps

Available part numbers (12)

ARL1-6-FR01S-10, ARL1-6-FR01A-10, ARL1-6-LR01S-10, ARL1-8-FR01S-10, ARL1-8-FR01A-10, ARL1-8-LR01S-10, ARL1-12-FR01S-10, ARL1-12-FR01A-10, ARL1-12-LR01S-10, ARL1-16-FR01S-10 + 2 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARL1-6-FR01S-10Yuken ARL1-6 (6.2 cm3/rev), Flange mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-6-FR01A-10Yuken ARL1-6 (6.2 cm3/rev), Flange mount, Suction port downward | Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-6-LR01S-10Yuken ARL1-6 (6.2 cm3/rev), Foot mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-FR01S-10Yuken ARL1-8 (8.5 cm3/rev), Flange mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-FR01A-10Yuken ARL1-8 (8.5 cm3/rev), Flange mount, Suction port downward | Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-LR01S-10Yuken ARL1-8 (8.5 cm3/rev), Foot mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-FR01S-10Yuken ARL1-12 (12.3 cm3/rev), Flange mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-FR01A-10Yuken ARL1-12 (12.3 cm3/rev), Flange mount, Suction port downward | Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-LR01S-10Yuken ARL1-12 (12.3 cm3/rev), Foot mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-FR01S-10Yuken ARL1-16 (16.3 cm3/rev), Flange mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-FR01A-10Yuken ARL1-16 (16.3 cm3/rev), Flange mount, Suction port downward | Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-LR01S-10Yuken ARL1-16 (16.3 cm3/rev), Foot mount, Side port (standard) | Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
