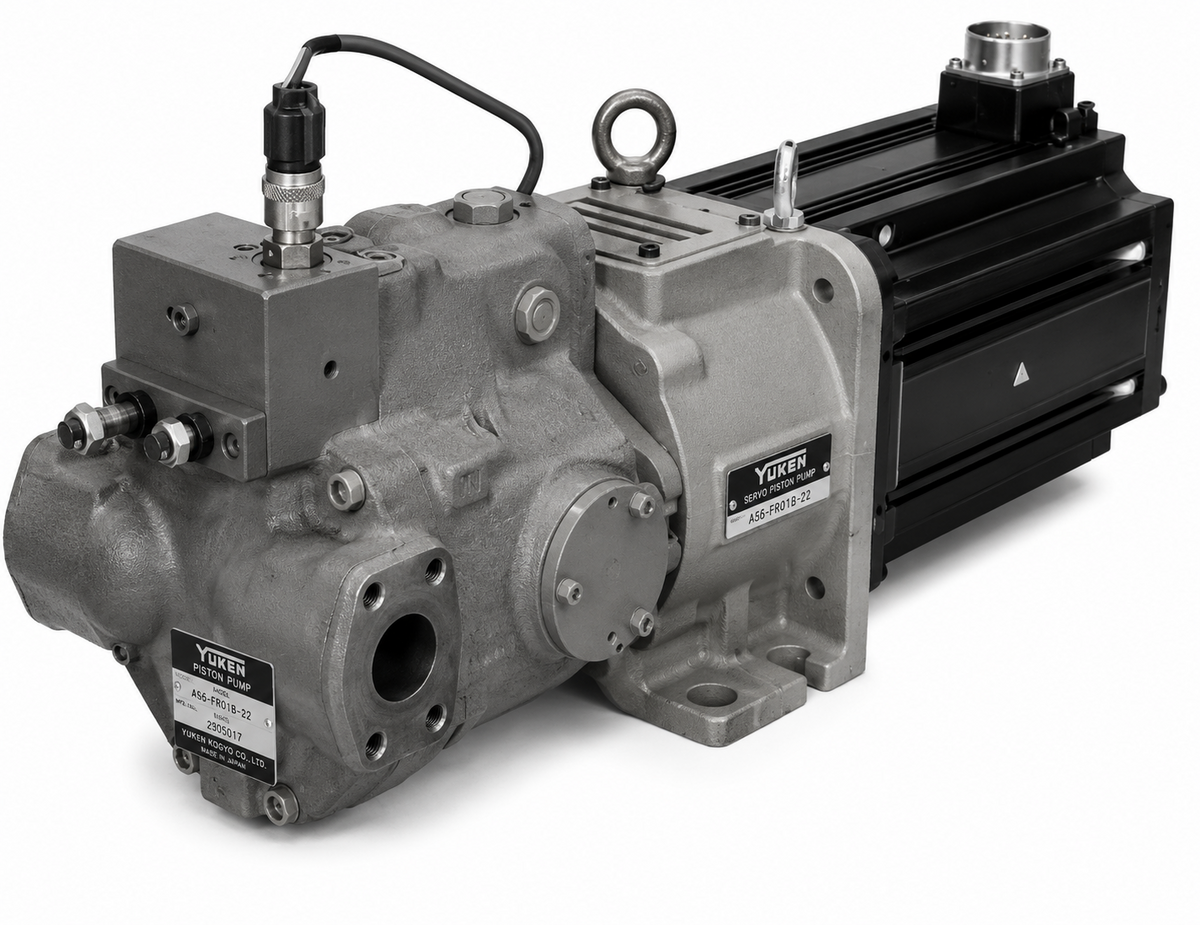

Yuken ASR1 AC Servo Motor Driven Pump (4.5 kW, 39.5 L/min, 21 MPa)

Yuken ASR1 AC Servo Motor Driven Pump (4.5 kW, 39.5 L/min, 21 MPa)

'ASR' Series AC Servo Motor Driven Pumps (ASR1).

Key features

  • Max flow: 39.5 L/min
  • Max working pressure: 21 MPa
  • AC servo motor output: 4.5 kW
  • Available in 1-displacement and 2-displacement types
  • Flow/pressure controlled to high precision by the dedicated AMSR controller
  • Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number

Specifications

Series ASR1
Type AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor)
Power Capacity Code C (4.5 kW)
Max Flow 39.5 L/min
Min Control Flow 1%
Flow Hysteresis/Repeatability <=1% / <=1%
Flow Command Signal 31.6 L/min/5V (max 39.5 L/min/6.25V)
Max Working Pressure 21 MPa (code H)
Min Adjustable Pressure 0.1 MPa
Pressure Command Signal 17.5 MPa/5V (max 21 MPa/6V)
AC Servo Motor Output 4.5 kW
Insulation Class F
ASR1-C-HX-12 ASR1 servo pump, 4.5kW, 1-displacement (single), 21 MPa | Series: ASR1 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: C (4.5 kW) | Displacement Type: X = 1-displacement (single) | Max Flow: 39.5 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 31.6 L/min/5V (max 39.5 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 4.5 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 54 kg | Matched Controller: AMSR-C series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR1-C-HW-12 ASR1 servo pump, 4.5kW, 2-displacement (dual), 21 MPa | Series: ASR1 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: C (4.5 kW) | Displacement Type: W = 2-displacement (dual) | Max Flow: 39.5 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 31.6 L/min/5V (max 39.5 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 4.5 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 55 kg | Matched Controller: AMSR-C series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
Servo PumpsYuken
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken ASR1 AC Servo Motor Driven Pump (4.5 kW, 39.5 L/min, 21 MPa)

Brand Yuken·Servo Pumps

Available part numbers (2)

ASR1-C-HX-12, ASR1-C-HW-12

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASR1-C-HX-12ASR1 servo pump, 4.5kW, 1-displacement (single), 21 MPa | Series: ASR1 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: C (4.5 kW) | Displacement Type: X = 1-displacement (single) | Max Flow: 39.5 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 31.6 L/min/5V (max 39.5 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 4.5 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 54 kg | Matched Controller: AMSR-C series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR1-C-HW-12ASR1 servo pump, 4.5kW, 2-displacement (dual), 21 MPa | Series: ASR1 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: C (4.5 kW) | Displacement Type: W = 2-displacement (dual) | Max Flow: 39.5 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 31.6 L/min/5V (max 39.5 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 4.5 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 55 kg | Matched Controller: AMSR-C series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
