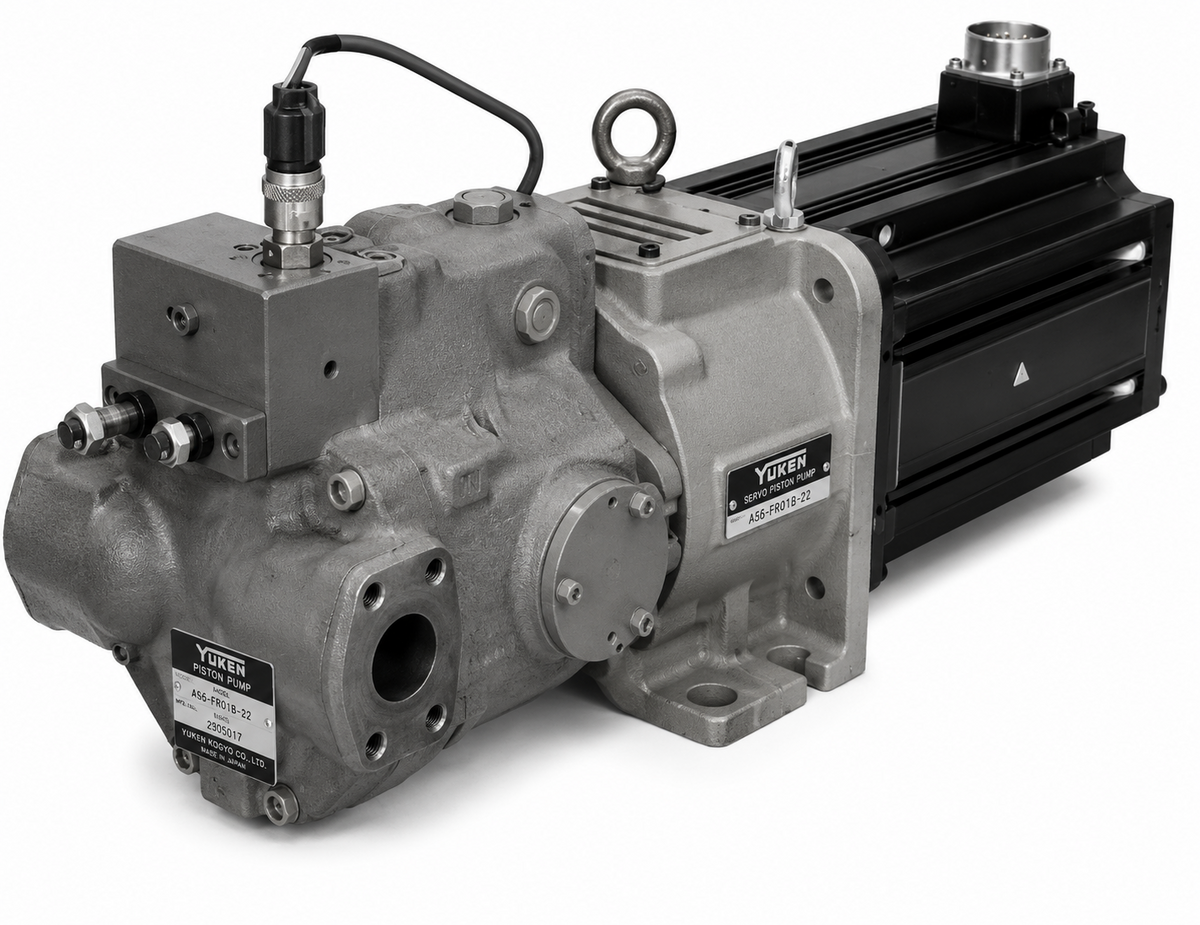

Yuken ASR2 AC Servo Motor Driven Pump (4.5 kW, 55.5 L/min, 16 MPa)

Yuken ASR2 AC Servo Motor Driven Pump (4.5 kW, 55.5 L/min, 16 MPa)

'ASR' Series AC Servo Motor Driven Pumps (ASR2).

Key features

  • Max flow: 55.5 L/min
  • Max working pressure: 16 MPa
  • AC servo motor output: 4.5 kW
  • Available in 1-displacement and 2-displacement types
  • Flow/pressure controlled to high precision by the dedicated AMSR controller
  • Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number

Specifications

Series ASR2
Type AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor)
Power Capacity Code C (4.5 kW)
Max Flow 55.5 L/min
Min Control Flow 1%
Flow Hysteresis/Repeatability <=1% / <=1%
Flow Command Signal 44.4 L/min/5V (max 55.5 L/min/6.25V)
Max Working Pressure 16 MPa (code C)
Min Adjustable Pressure 0.1 MPa
Pressure Command Signal 16 MPa/4.57V
AC Servo Motor Output 4.5 kW
Insulation Class F
ASR2-C-CX-12 ASR2 servo pump, 4.5kW, 1-displacement (single), 16 MPa | Series: ASR2 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: C (4.5 kW) | Displacement Type: X = 1-displacement (single) | Max Flow: 55.5 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 44.4 L/min/5V (max 55.5 L/min/6.25V) | Max Working Pressure: 16 MPa (code C) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 16 MPa/4.57V | AC Servo Motor Output: 4.5 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 54 kg | Matched Controller: AMSR-C series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR2-C-CW-12 ASR2 servo pump, 4.5kW, 2-displacement (dual), 16 MPa | Series: ASR2 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: C (4.5 kW) | Displacement Type: W = 2-displacement (dual) | Max Flow: 55.5 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 44.4 L/min/5V (max 55.5 L/min/6.25V) | Max Working Pressure: 16 MPa (code C) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 16 MPa/4.57V | AC Servo Motor Output: 4.5 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 55 kg | Matched Controller: AMSR-C series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
Servo PumpsYuken
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken ASR2 AC Servo Motor Driven Pump (4.5 kW, 55.5 L/min, 16 MPa)

Brand Yuken·Servo Pumps

Available part numbers (2)

ASR2-C-CX-12, ASR2-C-CW-12

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASR2-C-CX-12ASR2 servo pump, 4.5kW, 1-displacement (single), 16 MPa | Series: ASR2 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: C (4.5 kW) | Displacement Type: X = 1-displacement (single) | Max Flow: 55.5 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 44.4 L/min/5V (max 55.5 L/min/6.25V) | Max Working Pressure: 16 MPa (code C) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 16 MPa/4.57V | AC Servo Motor Output: 4.5 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 54 kg | Matched Controller: AMSR-C series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR2-C-CW-12ASR2 servo pump, 4.5kW, 2-displacement (dual), 16 MPa | Series: ASR2 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: C (4.5 kW) | Displacement Type: W = 2-displacement (dual) | Max Flow: 55.5 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 44.4 L/min/5V (max 55.5 L/min/6.25V) | Max Working Pressure: 16 MPa (code C) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 16 MPa/4.57V | AC Servo Motor Output: 4.5 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 55 kg | Matched Controller: AMSR-C series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
