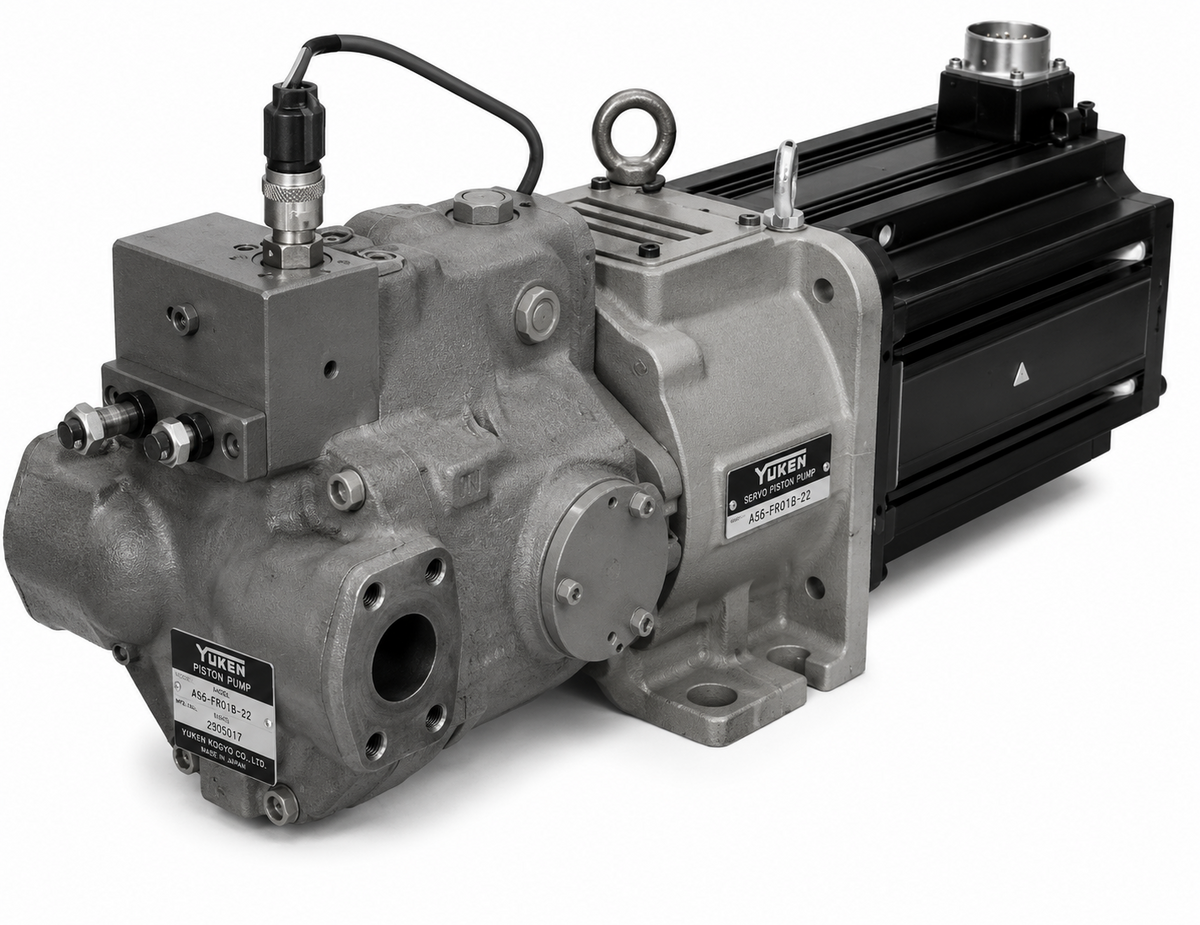

Yuken ASR3 AC Servo Motor Driven Pump (6/8 kW, 92.2 L/min, 21 MPa)

Yuken ASR3 AC Servo Motor Driven Pump (6/8 kW, 92.2 L/min, 21 MPa)

'ASR' Series AC Servo Motor Driven Pumps (ASR3).

Key features

  • Max flow: 92.2 L/min
  • Max working pressure: 21 MPa
  • AC servo motor output: 6/8 kW
  • Available in 1-displacement and 2-displacement types
  • Flow/pressure controlled to high precision by the dedicated AMSR controller
  • Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number

Specifications

Series ASR3
Type AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor)
Max Flow 92.2 L/min
Min Control Flow 1%
Flow Hysteresis/Repeatability <=1% / <=1%
Flow Command Signal 73.8 L/min/5V (max 92.2 L/min/6.25V)
Max Working Pressure 21 MPa (code H)
Min Adjustable Pressure 0.1 MPa
Pressure Command Signal 17.5 MPa/5V (max 21 MPa/6V)
Insulation Class F
Cooling Totally enclosed, self-cooled
Ambient 0 to +40C (no freezing), <=80%RH (no condensation)
ASR3-E-HX-12 ASR3 servo pump, 6kW, 1-displacement (single), 21 MPa | Series: ASR3 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: E (6 kW) | Displacement Type: X = 1-displacement (single) | Max Flow: 92.2 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 73.8 L/min/5V (max 92.2 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 6 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 80 kg | Matched Controller: AMSR-DE series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR3-E-HW-12 ASR3 servo pump, 6kW, 2-displacement (dual), 21 MPa | Series: ASR3 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: E (6 kW) | Displacement Type: W = 2-displacement (dual) | Max Flow: 92.2 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 73.8 L/min/5V (max 92.2 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 6 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 82 kg | Matched Controller: AMSR-DE series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR3-G-HX-12 ASR3 servo pump, 8kW, 1-displacement (single), 21 MPa | Series: ASR3 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: G (8 kW) | Displacement Type: X = 1-displacement (single) | Max Flow: 92.2 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 73.8 L/min/5V (max 92.2 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 8 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 87 kg | Matched Controller: AMSR-FGI series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR3-G-HW-12 ASR3 servo pump, 8kW, 2-displacement (dual), 21 MPa | Series: ASR3 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: G (8 kW) | Displacement Type: W = 2-displacement (dual) | Max Flow: 92.2 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 73.8 L/min/5V (max 92.2 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 8 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 89 kg | Matched Controller: AMSR-FGI series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
Servo PumpsYuken
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken ASR3 AC Servo Motor Driven Pump (6/8 kW, 92.2 L/min, 21 MPa)

Brand Yuken·Servo Pumps

Available part numbers (4)

ASR3-E-HX-12, ASR3-E-HW-12, ASR3-G-HX-12, ASR3-G-HW-12

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASR3-E-HX-12ASR3 servo pump, 6kW, 1-displacement (single), 21 MPa | Series: ASR3 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: E (6 kW) | Displacement Type: X = 1-displacement (single) | Max Flow: 92.2 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 73.8 L/min/5V (max 92.2 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 6 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 80 kg | Matched Controller: AMSR-DE series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR3-E-HW-12ASR3 servo pump, 6kW, 2-displacement (dual), 21 MPa | Series: ASR3 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: E (6 kW) | Displacement Type: W = 2-displacement (dual) | Max Flow: 92.2 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 73.8 L/min/5V (max 92.2 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 6 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 82 kg | Matched Controller: AMSR-DE series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR3-G-HX-12ASR3 servo pump, 8kW, 1-displacement (single), 21 MPa | Series: ASR3 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: G (8 kW) | Displacement Type: X = 1-displacement (single) | Max Flow: 92.2 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 73.8 L/min/5V (max 92.2 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 8 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 87 kg | Matched Controller: AMSR-FGI series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
ASR3-G-HW-12ASR3 servo pump, 8kW, 2-displacement (dual), 21 MPa | Series: ASR3 | Type: AC Servo Motor Driven Piston Pump (system: pump + AMSR controller + regenerative resistor) | Power Capacity Code: G (8 kW) | Displacement Type: W = 2-displacement (dual) | Max Flow: 92.2 L/min | Min Control Flow: 1% | Flow Hysteresis/Repeatability: <=1% / <=1% | Flow Command Signal: 73.8 L/min/5V (max 92.2 L/min/6.25V) | Max Working Pressure: 21 MPa (code H) | Min Adjustable Pressure: 0.1 MPa | Pressure Command Signal: 17.5 MPa/5V (max 21 MPa/6V) | AC Servo Motor Output: 8 kW | Insulation Class: F | Cooling: Totally enclosed, self-cooled | Ambient: 0 to +40C (no freezing), <=80%RH (no condensation) | Mass (approx): 89 kg | Matched Controller: AMSR-FGI series | Design No: 12 | Options: Configured-to-order (RFQ): supply voltage (no-code AC200V / 4 AC400V), port direction, solenoid valve coil voltage, electrical wiring type, function select (A standalone / B summation), parameter number | Note: Maintenance/pump-only orders prefix 'N-' (function & parameter set to no-code)
