• Yuken Balancing Valve (RBG-03/06)
1 1

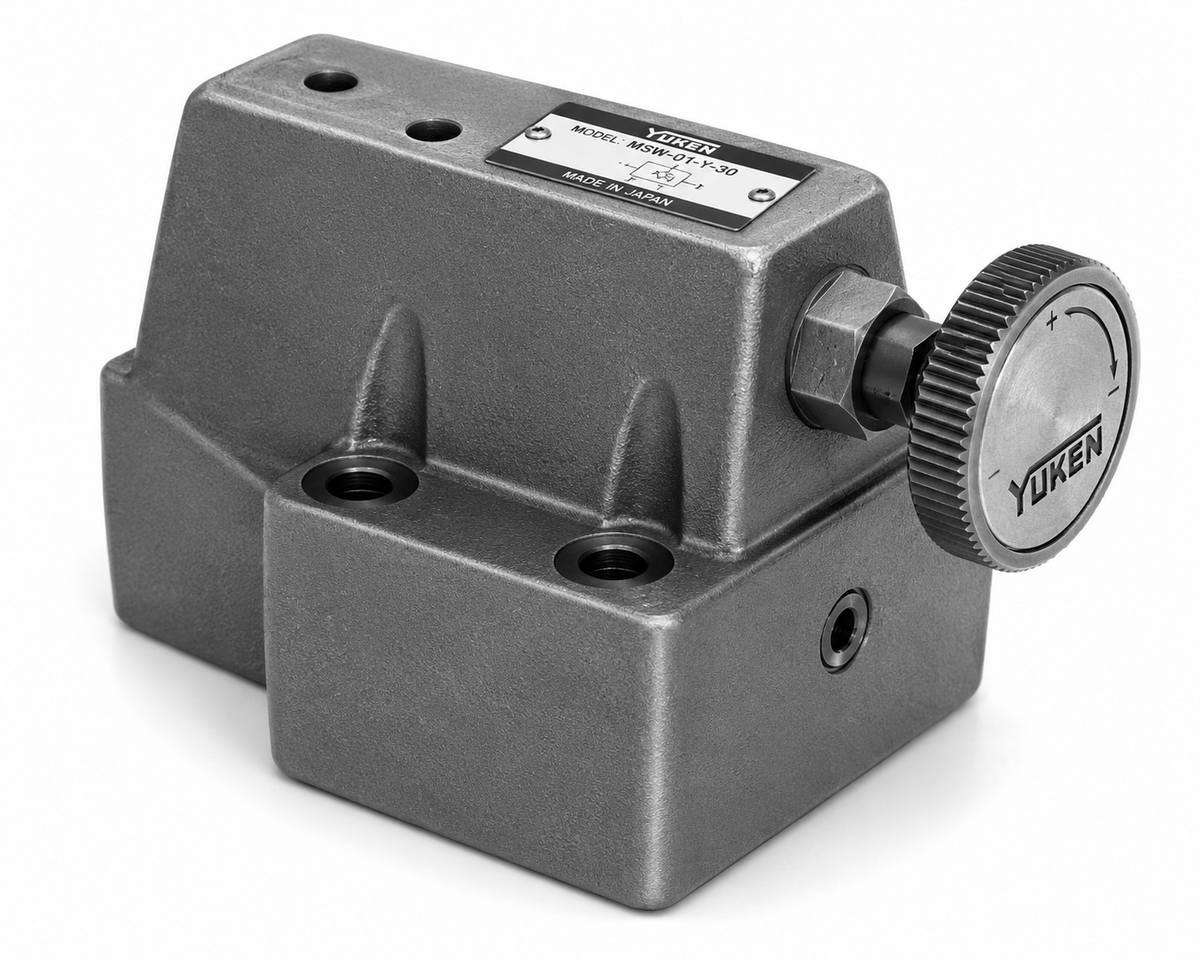

Yuken Balancing Valve (RBG-03/06)

Yuken Balancing Valve (RBG-03/06)

Pressure Reducing and Relieving Valves.

Key features

  • Combined pressure reducing and counter-balance functions
  • Max. operating pressure: 14 MPa (03) / 25 MPa (06)
  • Pressure adjustment range: 0.6–13.5 MPa (03) / 0.8–24.5 MPa (06)
  • Max. flow: 50/125 L/min
  • Internal or external (-R) drain
  • Sub-plate mounting

Specifications

Type Pressure Reducing and Relieving Valve
Mounting Sub-plate
Design No. 10
RBG-03-10 Balancing Valve RBG-03, sub-plate, internal drain | Type: Pressure Reducing and Relieving Valve | Mounting: Sub-plate | Valve Size: 03 | Drain: Internal | Max. Operating Pressure: 14 MPa | Pressure Adjustment Range: 0.6–13.5 MPa | Max. Flow: 50 L/min | Relief Flow: 50 L/min | Drain Flow: 0.6–1 L/min | Mass: 4.2 kg | Design No.: 10
RBG-03-R-10 Balancing Valve RBG-03-R, sub-plate, external drain | Type: Pressure Reducing and Relieving Valve | Mounting: Sub-plate | Valve Size: 03 | Drain: External (-R) | Max. Operating Pressure: 14 MPa | Pressure Adjustment Range: 0.6–13.5 MPa | Max. Flow: 50 L/min | Relief Flow: 50 L/min | Drain Flow: 0.6–1 L/min | Mass: 4.2 kg | Design No.: 10
RBG-06-10 Balancing Valve RBG-06, sub-plate, internal drain | Type: Pressure Reducing and Relieving Valve | Mounting: Sub-plate | Valve Size: 06 | Drain: Internal | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: 0.8–24.5 MPa | Max. Flow: 125 L/min | Relief Flow: 125 L/min | Drain Flow: 1.5–2 L/min | Mass: 11 kg | Design No.: 10
RBG-06-R-10 Balancing Valve RBG-06-R, sub-plate, external drain | Type: Pressure Reducing and Relieving Valve | Mounting: Sub-plate | Valve Size: 06 | Drain: External (-R) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: 0.8–24.5 MPa | Max. Flow: 125 L/min | Relief Flow: 125 L/min | Drain Flow: 1.5–2 L/min | Mass: 11 kg | Design No.: 10
Pressure Reducing ValvesYuken
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken Balancing Valve (RBG-03/06)

Brand Yuken·Pressure Reducing Valves

Available part numbers (4)

RBG-03-10, RBG-03-R-10, RBG-06-10, RBG-06-R-10

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RBG-03-10Balancing Valve RBG-03, sub-plate, internal drain | Type: Pressure Reducing and Relieving Valve | Mounting: Sub-plate | Valve Size: 03 | Drain: Internal | Max. Operating Pressure: 14 MPa | Pressure Adjustment Range: 0.6–13.5 MPa | Max. Flow: 50 L/min | Relief Flow: 50 L/min | Drain Flow: 0.6–1 L/min | Mass: 4.2 kg | Design No.: 10
RBG-03-R-10Balancing Valve RBG-03-R, sub-plate, external drain | Type: Pressure Reducing and Relieving Valve | Mounting: Sub-plate | Valve Size: 03 | Drain: External (-R) | Max. Operating Pressure: 14 MPa | Pressure Adjustment Range: 0.6–13.5 MPa | Max. Flow: 50 L/min | Relief Flow: 50 L/min | Drain Flow: 0.6–1 L/min | Mass: 4.2 kg | Design No.: 10
RBG-06-10Balancing Valve RBG-06, sub-plate, internal drain | Type: Pressure Reducing and Relieving Valve | Mounting: Sub-plate | Valve Size: 06 | Drain: Internal | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: 0.8–24.5 MPa | Max. Flow: 125 L/min | Relief Flow: 125 L/min | Drain Flow: 1.5–2 L/min | Mass: 11 kg | Design No.: 10
RBG-06-R-10Balancing Valve RBG-06-R, sub-plate, external drain | Type: Pressure Reducing and Relieving Valve | Mounting: Sub-plate | Valve Size: 06 | Drain: External (-R) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: 0.8–24.5 MPa | Max. Flow: 125 L/min | Relief Flow: 125 L/min | Drain Flow: 1.5–2 L/min | Mass: 11 kg | Design No.: 10
