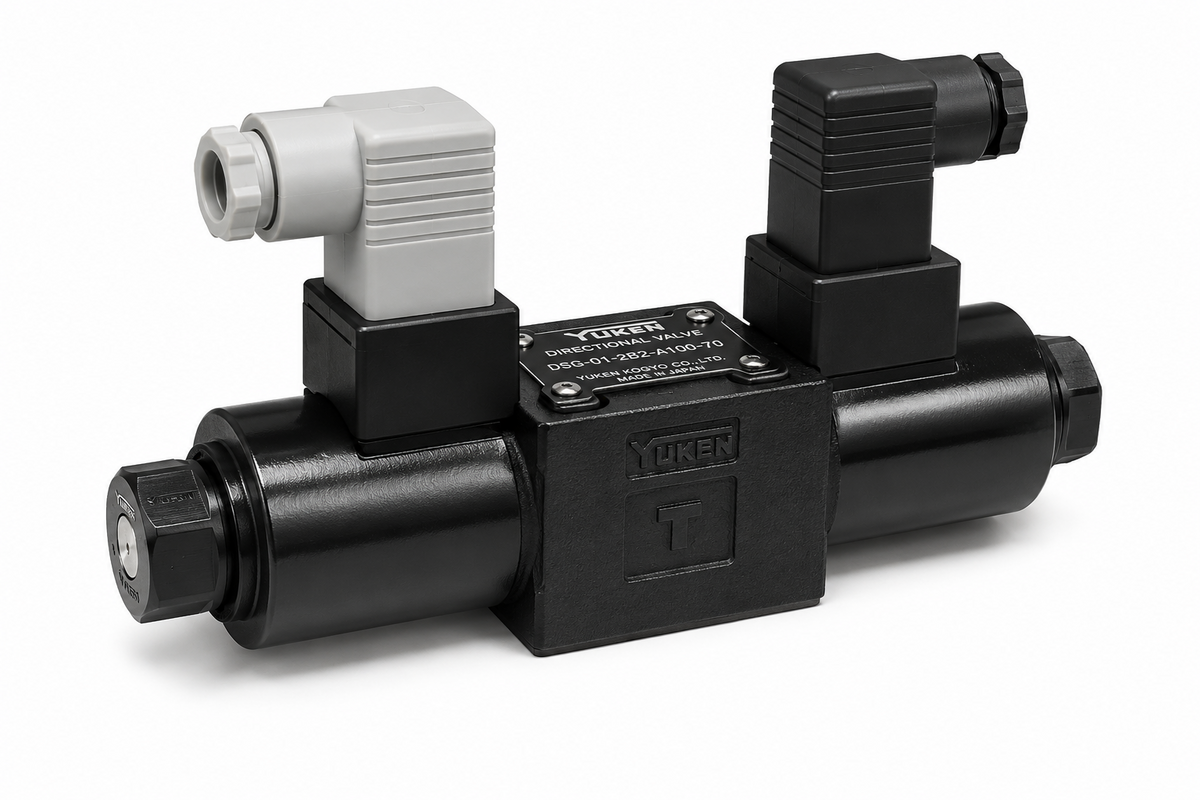

Yuken — E-DSG-01 Low-Wattage (5W) Solenoid Operated Directional Valve

Yuken — E-DSG-01 Low-Wattage (5W) Solenoid Operated Directional Valve

Low Wattage (5W) Type Solenoid Operated Directional Valves, E-DSG-01.

Key features

  • DC solenoid reduced to 5W (vs DSG-01 29W) for direct drive from PLC/sequence-controller output: max. operating pressure 16 MPa, max. flow 45 L/min, tank back pressure 16 MPa, max. switching frequency 240 min-1
  • Subplate mounting

Specifications

Type Low-wattage 5W (Solenoid Operated)
Valve Size 01 (Rc 1/8)
Max Pressure 16 MPa
Max Flow 45 L/min
Tank Back Pressure 16 MPa
Max Switching Freq 240 min-1
Coil Power 5W
Mounting Subplate (ISO 4401)
Standard CE
Coil DC D12/D24 only (RFQ)
Wiring Terminal box / DIN connector / N1 lamp DIN (RFQ)
Manual Override Push pin std / button-lock C (RFQ)
E-DSG-01-3C2-*-70 E-DSG-01 solenoid directional valve, spool 3C2 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-3C3-*-70 E-DSG-01 solenoid directional valve, spool 3C3 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C3 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-3C4-*-70 E-DSG-01 solenoid directional valve, spool 3C4 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C4 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-3C40-*-70 E-DSG-01 solenoid directional valve, spool 3C40 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C40 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-3C11-*-70 E-DSG-01 solenoid directional valve, spool 3C11 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C11 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-2D2-*-70 E-DSG-01 solenoid directional valve, spool 2D2 (2-position, no-spring detented) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2D2 | Spring: 2-position, no-spring detented | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-2B2-*-70 E-DSG-01 solenoid directional valve, spool 2B2 (2-position, spring offset) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-2B3-*-70 E-DSG-01 solenoid directional valve, spool 2B3 (2-position, spring offset) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2B3 | Spring: 2-position, spring offset | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-2B8-*-70 E-DSG-01 solenoid directional valve, spool 2B8 (2-position, spring offset) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2B8 | Spring: 2-position, spring offset | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
Solenoid OperatedYuken
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken — E-DSG-01 Low-Wattage (5W) Solenoid Operated Directional Valve

Brand Yuken·Solenoid Operated

Available part numbers (9)

E-DSG-01-3C2-*-70, E-DSG-01-3C3-*-70, E-DSG-01-3C4-*-70, E-DSG-01-3C40-*-70, E-DSG-01-3C11-*-70, E-DSG-01-2D2-*-70, E-DSG-01-2B2-*-70, E-DSG-01-2B3-*-70, E-DSG-01-2B8-*-70

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E-DSG-01-3C2-*-70E-DSG-01 solenoid directional valve, spool 3C2 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-3C3-*-70E-DSG-01 solenoid directional valve, spool 3C3 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C3 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-3C4-*-70E-DSG-01 solenoid directional valve, spool 3C4 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C4 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-3C40-*-70E-DSG-01 solenoid directional valve, spool 3C40 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C40 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-3C11-*-70E-DSG-01 solenoid directional valve, spool 3C11 (3-position, spring centered) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C11 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-2D2-*-70E-DSG-01 solenoid directional valve, spool 2D2 (2-position, no-spring detented) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2D2 | Spring: 2-position, no-spring detented | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-2B2-*-70E-DSG-01 solenoid directional valve, spool 2B2 (2-position, spring offset) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-2B3-*-70E-DSG-01 solenoid directional valve, spool 2B3 (2-position, spring offset) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2B3 | Spring: 2-position, spring offset | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
E-DSG-01-2B8-*-70E-DSG-01 solenoid directional valve, spool 2B8 (2-position, spring offset) | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 16 MPa | Max Flow: 45 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2B8 | Spring: 2-position, spring offset | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70
