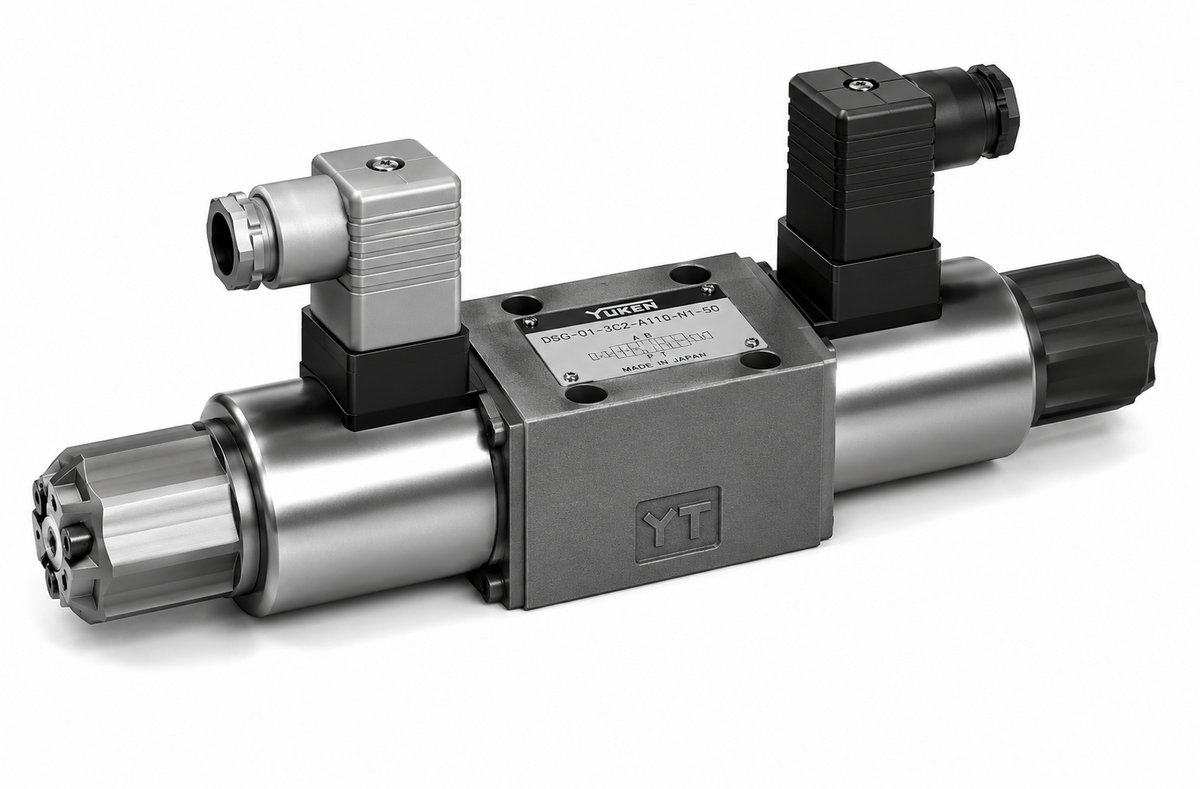

Yuken EDFG-01 Shockless Proportional Directional & Flow Control Valve (E series, 25 MPa, rated 30 L/min)

Yuken EDFG-01 Shockless Proportional Directional & Flow Control Valve (E series, 25 MPa, rated 30 L/min)

Shockless Type Proportional Electro-Hydraulic Directional and Flow Control Valves.

Key features

  • Use with a dedicated Yuken power amplifier (pattern control AMN-G-10 / analog control AMN-W-10)
  • Sub-plate mounting, valve size 01
  • Max operating pressure 25 MPa, rated flow 30 L/min, tank port pressure 14 MPa, rated current 1100 mA, coil 10.8Ω. Spool forms 3C2 and 3C40; meter-in/meter-out (XY) control
  • Step response ≤100 ms

Specifications

Type Shockless Proportional Directional & Flow Control Valve (E series)
Series EDFG
Mounting Sub-plate
Valve Size 01
Rated Flow 30 L/min
Max Pressure 25 MPa
Tank Port Pressure 14 MPa
Control Direction XY (meter-in/meter-out)
Rated Current 1100 mA
Coil 10.8Ω
Step Response ≤100 ms
Drive Current input (use with dedicated power amplifier)
EDFG-01-30-3C2-XY-50 EDFG-01 Shockless Dir&Flow (E), 3C2, XY, rated 30 L/min | Type: Shockless Proportional Directional & Flow Control Valve (E series) | Series: EDFG | Mounting: Sub-plate | Valve Size: 01 | Rated Flow: 30 L/min | Max Pressure: 25 MPa | Tank Port Pressure: 14 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Rated Current: 1100 mA | Coil: 10.8Ω | Step Response: ≤100 ms | Drive: Current input (use with dedicated power amplifier) | Design No.: 50
EDFG-01-30-3C40-XY-50 EDFG-01 Shockless Dir&Flow (E), 3C40, XY, rated 30 L/min | Type: Shockless Proportional Directional & Flow Control Valve (E series) | Series: EDFG | Mounting: Sub-plate | Valve Size: 01 | Rated Flow: 30 L/min | Max Pressure: 25 MPa | Tank Port Pressure: 14 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Rated Current: 1100 mA | Coil: 10.8Ω | Step Response: ≤100 ms | Drive: Current input (use with dedicated power amplifier) | Design No.: 50
Proportional Directional & FlowYuken
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken EDFG-01 Shockless Proportional Directional & Flow Control Valve (E series, 25 MPa, rated 30 L/min)

Brand Yuken·Proportional Directional & Flow

Available part numbers (2)

EDFG-01-30-3C2-XY-50, EDFG-01-30-3C40-XY-50

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EDFG-01-30-3C2-XY-50EDFG-01 Shockless Dir&Flow (E), 3C2, XY, rated 30 L/min | Type: Shockless Proportional Directional & Flow Control Valve (E series) | Series: EDFG | Mounting: Sub-plate | Valve Size: 01 | Rated Flow: 30 L/min | Max Pressure: 25 MPa | Tank Port Pressure: 14 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Rated Current: 1100 mA | Coil: 10.8Ω | Step Response: ≤100 ms | Drive: Current input (use with dedicated power amplifier) | Design No.: 50
EDFG-01-30-3C40-XY-50EDFG-01 Shockless Dir&Flow (E), 3C40, XY, rated 30 L/min | Type: Shockless Proportional Directional & Flow Control Valve (E series) | Series: EDFG | Mounting: Sub-plate | Valve Size: 01 | Rated Flow: 30 L/min | Max Pressure: 25 MPa | Tank Port Pressure: 14 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Rated Current: 1100 mA | Coil: 10.8Ω | Step Response: ≤100 ms | Drive: Current input (use with dedicated power amplifier) | Design No.: 50
