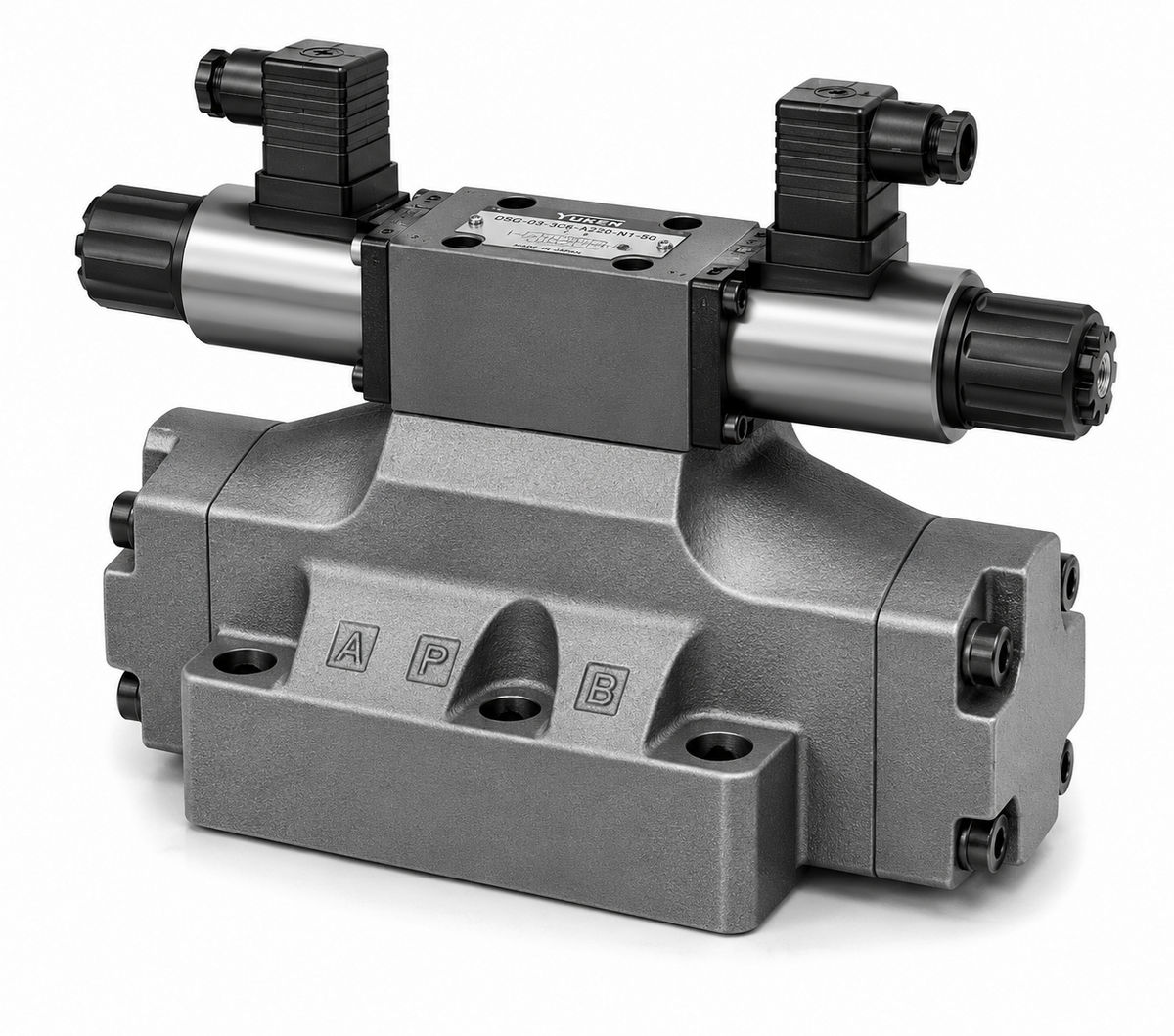

Proportional Electro-Hydraulic Directional and Flow Control Valves.

Key features

  • A two-stage directional/flow valve that uses a proportional reducing valve with two proportional solenoids as its pilot: flow is controlled by converting the input current in the solenoid, and direction is set by which of the two solenoids is energised
  • Used with a dedicated Yuken power amplifier, it handles actuator speed, acceleration/deceleration and direction in a single valve, simplifying the circuit and cutting cost
  • Sub-plate mounting, valve size 03
  • Max operating pressure 25 MPa, rated flow 100 L/min, pilot pressure 1.5–16 MPa, tank port pressure 16 MPa, rated current 800 mA, coil 10Ω. Spool forms 3C2/3C40; meter-in/meter-out (XY); internal/external pilot

Specifications

Type Proportional Directional & Flow Control Valve (E series, 2-stage)
Series EDFHG
Mounting Sub-plate
Valve Size 03
Rated Flow 100 L/min
Max Pressure 25 MPa
Pilot Pressure 1.5–16 MPa
Tank Port Pressure 16 MPa
Control Direction XY (meter-in/meter-out)
Rated Current 800 mA
Coil 10Ω
Drive Current input (use with dedicated power amplifier)
EDFHG-03-100-3C2-XY-E-31 EDFHG-03 Dir&Flow (E), 3C2, External pilot (standard), rated 100 L/min | Type: Proportional Directional & Flow Control Valve (E series, 2-stage) | Series: EDFHG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 100 L/min | Max Pressure: 25 MPa | Pilot Pressure: 1.5–16 MPa | Tank Port Pressure: 16 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Pilot: External pilot (standard) | Rated Current: 800 mA | Coil: 10Ω | Drive: Current input (use with dedicated power amplifier) | Design No.: 31
EDFHG-03-100-3C2-XY-31 EDFHG-03 Dir&Flow (E), 3C2, Internal pilot, rated 100 L/min | Type: Proportional Directional & Flow Control Valve (E series, 2-stage) | Series: EDFHG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 100 L/min | Max Pressure: 25 MPa | Pilot Pressure: 1.5–16 MPa | Tank Port Pressure: 16 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Pilot: Internal pilot | Rated Current: 800 mA | Coil: 10Ω | Drive: Current input (use with dedicated power amplifier) | Design No.: 31
EDFHG-03-100-3C40-XY-E-31 EDFHG-03 Dir&Flow (E), 3C40, External pilot (standard), rated 100 L/min | Type: Proportional Directional & Flow Control Valve (E series, 2-stage) | Series: EDFHG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 100 L/min | Max Pressure: 25 MPa | Pilot Pressure: 1.5–16 MPa | Tank Port Pressure: 16 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Pilot: External pilot (standard) | Rated Current: 800 mA | Coil: 10Ω | Drive: Current input (use with dedicated power amplifier) | Design No.: 31
EDFHG-03-100-3C40-XY-31 EDFHG-03 Dir&Flow (E), 3C40, Internal pilot, rated 100 L/min | Type: Proportional Directional & Flow Control Valve (E series, 2-stage) | Series: EDFHG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 100 L/min | Max Pressure: 25 MPa | Pilot Pressure: 1.5–16 MPa | Tank Port Pressure: 16 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Pilot: Internal pilot | Rated Current: 800 mA | Coil: 10Ω | Drive: Current input (use with dedicated power amplifier) | Design No.: 31
