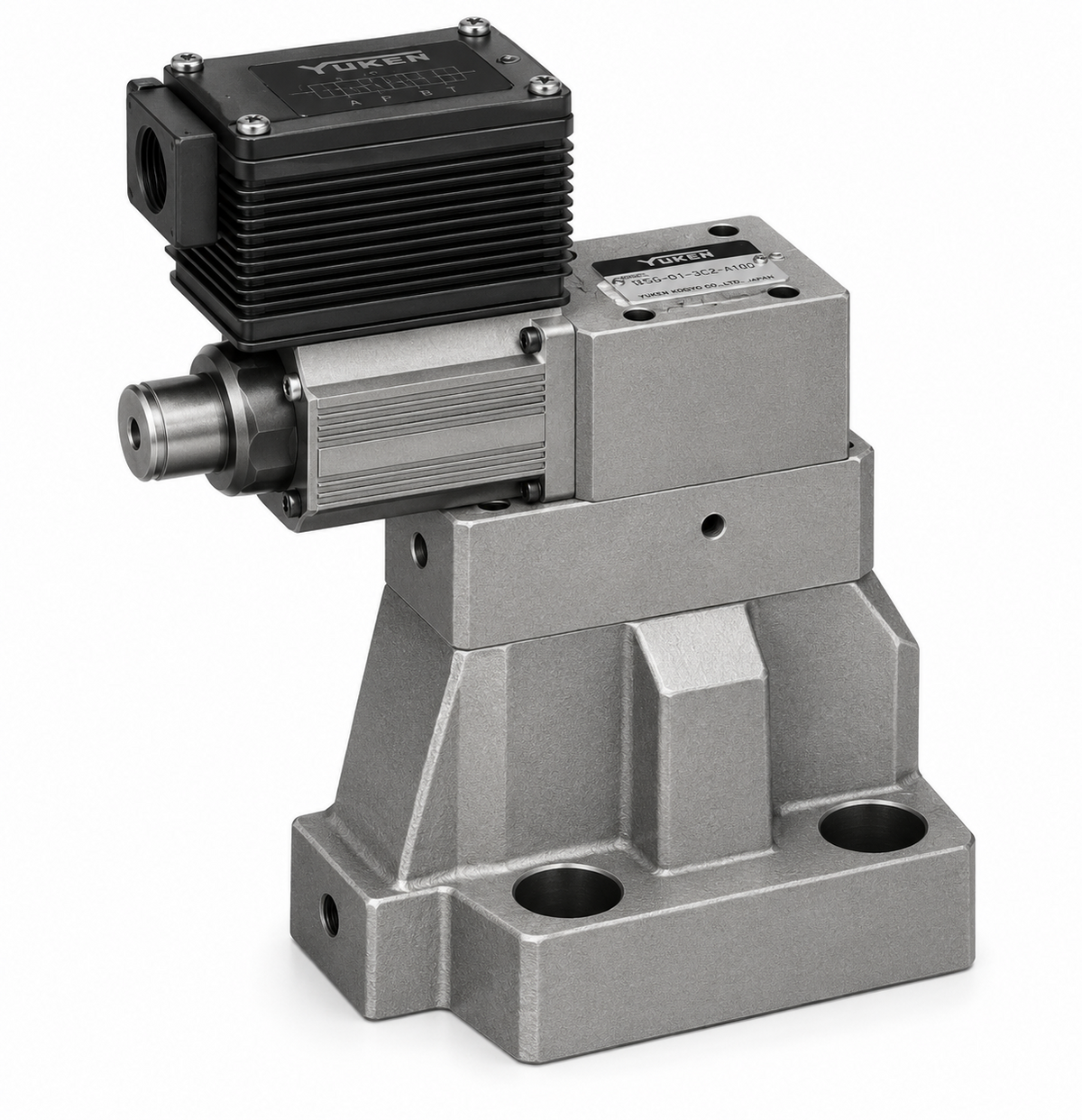

Yuken EHBG-03 Proportional Relief Valve (24.5 MPa, max 100 L/min, size 03)

Yuken EHBG-03 Proportional Relief Valve (24.5 MPa, max 100 L/min, size 03)

Proportional Electro-Hydraulic Relief Valves.

Key features

  • Integrates the compact high-performance EH-series 1/8 proportional pilot relief valve with a low-noise relief valve; controls system pressure proportionally to input voltage
  • Sub-plate mounting, valve size 03
  • Max operating pressure 24.5 MPa, max flow 100 L/min
  • Pressure adjustment range C: 0.6–15.7 MPa / H: 0.6–24.5 MPa
  • Coil resistance 10Ω, supply DC24V (28W max)
  • Open-loop, sensor-equipped (S) and closed-loop (L) versions

Specifications

Type Proportional Relief Valve
Series EHBG
Mounting Sub-plate (G)
Valve Size 03
Max Flow 100 L/min
Coil 10Ω, DC24V
Design No. 50
EHBG-03-C-50 EHBG-03 Relief, C 0.6–15.7 MPa, Open loop, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: C (0.6–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-C-S-50 EHBG-03 Relief, C 0.6–15.7 MPa, Open loop + built-in sensor, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: C (0.6–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-C-L-50 EHBG-03 Relief, C 0.6–15.7 MPa, Closed loop, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: C (0.6–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Closed loop | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-H-50 EHBG-03 Relief, H 0.6–24.5 MPa, Open loop, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: H (0.6–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-H-S-50 EHBG-03 Relief, H 0.6–24.5 MPa, Open loop + built-in sensor, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: H (0.6–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-H-L-50 EHBG-03 Relief, H 0.6–24.5 MPa, Closed loop, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: H (0.6–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Closed loop | Coil: 10Ω, DC24V | Design No.: 50
Proportional Relief ValvesYuken
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken EHBG-03 Proportional Relief Valve (24.5 MPa, max 100 L/min, size 03)

Brand Yuken·Proportional Relief Valves

Available part numbers (6)

EHBG-03-C-50, EHBG-03-C-S-50, EHBG-03-C-L-50, EHBG-03-H-50, EHBG-03-H-S-50, EHBG-03-H-L-50

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EHBG-03-C-50EHBG-03 Relief, C 0.6–15.7 MPa, Open loop, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: C (0.6–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-C-S-50EHBG-03 Relief, C 0.6–15.7 MPa, Open loop + built-in sensor, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: C (0.6–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-C-L-50EHBG-03 Relief, C 0.6–15.7 MPa, Closed loop, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: C (0.6–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Closed loop | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-H-50EHBG-03 Relief, H 0.6–24.5 MPa, Open loop, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: H (0.6–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-H-S-50EHBG-03 Relief, H 0.6–24.5 MPa, Open loop + built-in sensor, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: H (0.6–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
EHBG-03-H-L-50EHBG-03 Relief, H 0.6–24.5 MPa, Closed loop, max 100 L/min | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Flow: 100 L/min | Pressure Adj. Range: H (0.6–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Closed loop | Coil: 10Ω, DC24V | Design No.: 50
