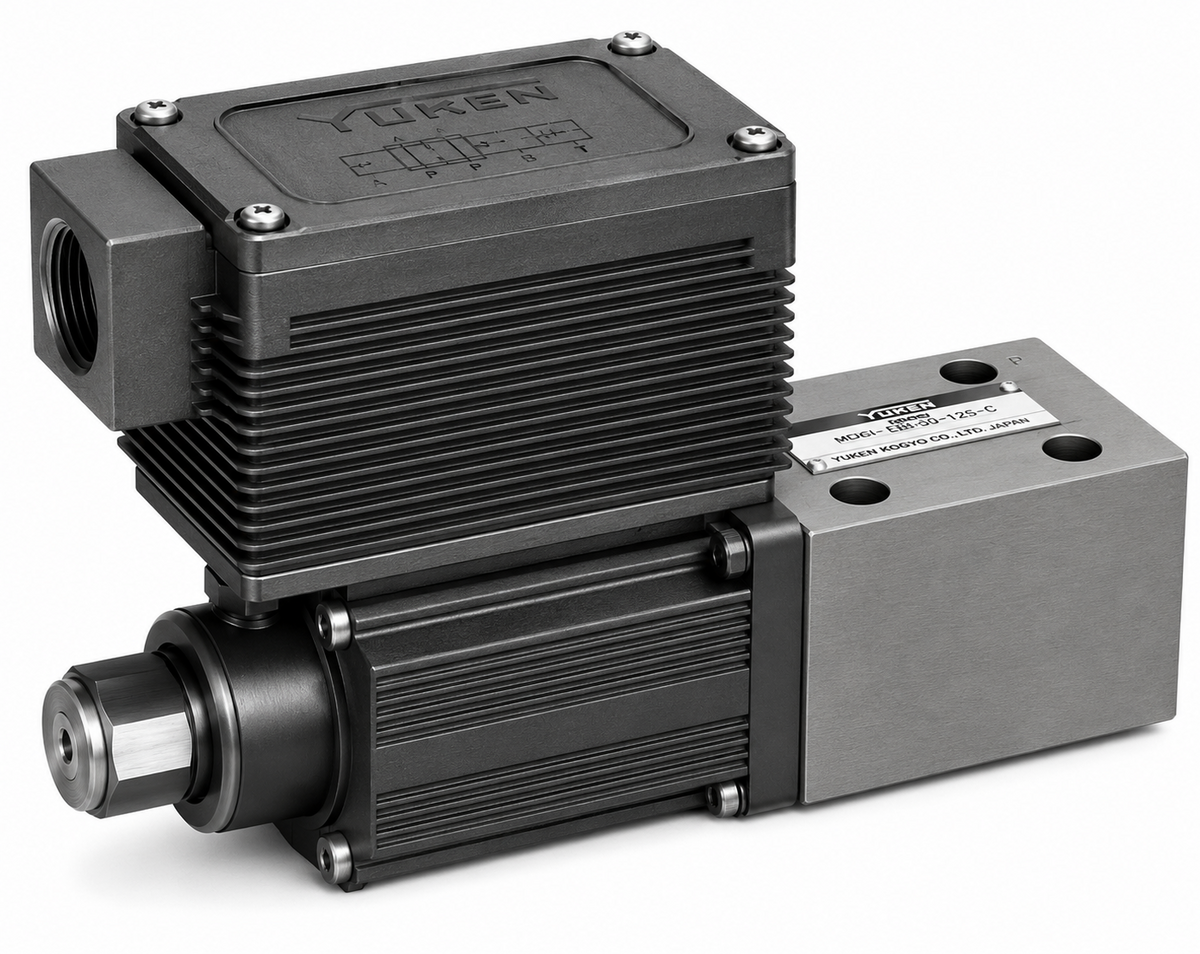

Yuken EHDG-01-B Proportional Pilot Relief Valve (24.5 MPa, 0.5–6.9 MPa adj. range, size 01)

Yuken EHDG-01-B Proportional Pilot Relief Valve (24.5 MPa, 0.5–6.9 MPa adj. range, size 01)

Proportional Electro-Hydraulic Pilot Relief Valves.

Key features

  • Pressure adjustment range B: 0.5–6.9 MPa
  • Max. operating pressure 24.5 MPa
  • Max. flow 2 L/min
  • Min. flow 0.3 L/min
  • Coil resistance 10Ω. Supply DC24V (28W max)
  • Sub-plate mounting

Specifications

Type Proportional Pilot Relief Valve
Series EHDG
Mounting Sub-plate (G)
Valve Size 01
Pressure Adj. Range B (0.5–6.9 MPa)
P-line Orifice PN (none, standard)
T-line Orifice T15 (standard for B)
Max Pressure 24.5 MPa
Max Flow 2 L/min
Coil 10Ω, DC24V
Design No. 50
EHDG-01-B-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-1-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-1-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-1-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-1-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-S-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-S-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-S-1-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-S-1-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-S-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-S-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-S-1-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-S-1-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-L-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Closed loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Closed loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-L-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Closed loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Closed loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-L-1-PNT15-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Closed loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Closed loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-L-1-PNT15M10-50 EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Closed loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Closed loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
Proportional Relief ValvesYuken
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken EHDG-01-B Proportional Pilot Relief Valve (24.5 MPa, 0.5–6.9 MPa adj. range, size 01)

Brand Yuken·Proportional Relief Valves

Available part numbers (20)

EHDG-01-B-PNT15-50, EHDG-01-B-PNT15M10-50, EHDG-01-B-1-PNT15-50, EHDG-01-B-1-PNT15M10-50, EHDG-01V-B-PNT15-50, EHDG-01V-B-PNT15M10-50, EHDG-01V-B-1-PNT15-50, EHDG-01V-B-1-PNT15M10-50, EHDG-01-B-S-PNT15-50, EHDG-01-B-S-PNT15M10-50 + 10 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EHDG-01-B-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-1-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-1-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-1-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-1-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-S-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-S-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-S-1-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01-B-S-1-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: General purpose | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-S-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-S-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-S-1-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-S-1-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Open loop + built-in sensor, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Open loop + built-in sensor | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-L-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Closed loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Closed loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-L-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Closed loop, Without safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Closed loop | Safety Valve: Without safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-L-1-PNT15-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Closed loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Closed loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: No P–B line orifice | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50
EHDG-01V-B-L-1-PNT15M10-50EHDG-01 Pilot Relief, B 0.5–6.9 MPa, Closed loop, Built-in safety valve | Type: Proportional Pilot Relief Valve | Series: EHDG | Mounting: Sub-plate (G) | Valve Size: 01 | Usage: Relief-valve vent control | Pressure Adj. Range: B (0.5–6.9 MPa) | Control: Closed loop | Safety Valve: Built-in safety valve | P-line Orifice: PN (none, standard) | T-line Orifice: T15 (standard for B) | P-B line Orifice: Standard P–B line orifice (M10) | Max Pressure: 24.5 MPa | Max Flow: 2 L/min | Coil: 10Ω, DC24V | Design No.: 50

Need a different model, or a part not listed here? Send us your parts list →
