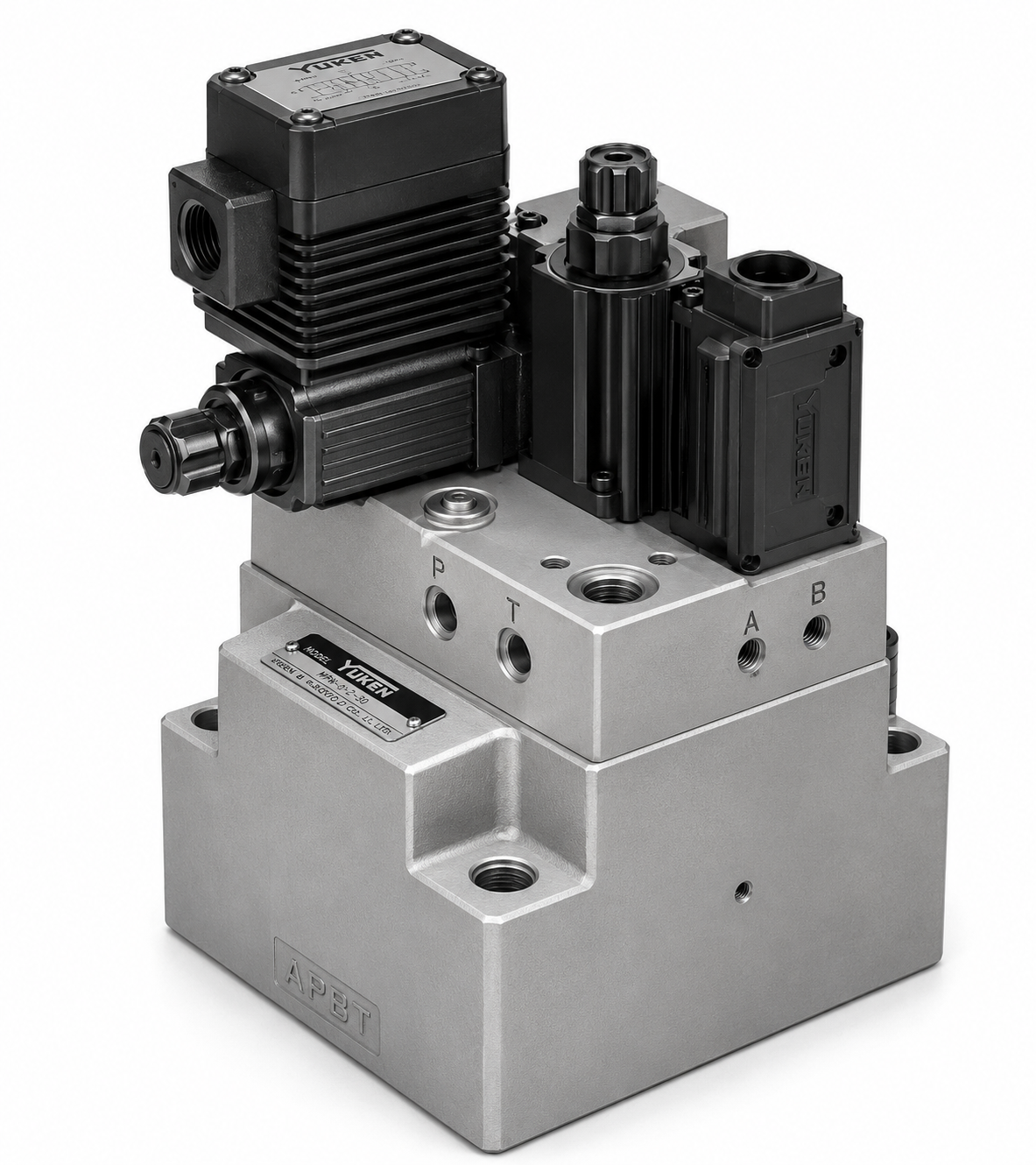

Yuken EHFBG-03 Proportional Power-Saving Valve (24.5 MPa, max 60/125 L/min, size 03)

Yuken EHFBG-03 Proportional Power-Saving Valve (24.5 MPa, max 60/125 L/min, size 03)

Proportional Electro-Hydraulic Flow Control and Relief Valves.

Key features

  • Sub-plate mounting, valve size 03
  • Max operating pressure 24.5 MPa, max flow 60/125 L/min
  • Pilot-relief pressure range C: 1.2–15.7 MPa / H: 1.4–24.5 MPa
  • Versions with/without built-in pilot relief, internal/external flow pilot, and optional pressure sensor
  • Coil resistance 10Ω, supply DC24V (28W max)

Specifications

Type Proportional Power-Saving Valve (Flow Control + Relief)
Series EHFBG
Mounting Sub-plate (G)
Valve Size 03
Valve Pressure Drop 0.6 MPa
Max Pressure 24.5 MPa
Coil 10Ω, DC24V
Design No. 50
EHFBG-03-60-50 EHFBG-03 Power-Saving, 60L/min, no pilot relief valve (flow control only), Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: Internal pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-E-50 EHFBG-03 Power-Saving, 60L/min, no pilot relief valve (flow control only), External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: External pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-C-50 EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-C-E-50 EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-C-S-50 EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop + sensor, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-C-E-S-50 EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop + sensor, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-H-50 EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-H-E-50 EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-H-S-50 EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop + sensor, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-H-E-S-50 EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop + sensor, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-50 EHFBG-03 Power-Saving, 125L/min, no pilot relief valve (flow control only), Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: Internal pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-E-50 EHFBG-03 Power-Saving, 125L/min, no pilot relief valve (flow control only), External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: External pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-C-50 EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-C-E-50 EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-C-S-50 EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop + sensor, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-C-E-S-50 EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop + sensor, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-H-50 EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-H-E-50 EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-H-S-50 EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop + sensor, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-H-E-S-50 EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop + sensor, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
Proportional Power SavingYuken
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken EHFBG-03 Proportional Power-Saving Valve (24.5 MPa, max 60/125 L/min, size 03)

Brand Yuken·Proportional Power Saving

Available part numbers (20)

EHFBG-03-60-50, EHFBG-03-60-E-50, EHFBG-03-60-C-50, EHFBG-03-60-C-E-50, EHFBG-03-60-C-S-50, EHFBG-03-60-C-E-S-50, EHFBG-03-60-H-50, EHFBG-03-60-H-E-50, EHFBG-03-60-H-S-50, EHFBG-03-60-H-E-S-50 + 10 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EHFBG-03-60-50EHFBG-03 Power-Saving, 60L/min, no pilot relief valve (flow control only), Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: Internal pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-E-50EHFBG-03 Power-Saving, 60L/min, no pilot relief valve (flow control only), External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: External pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-C-50EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-C-E-50EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-C-S-50EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop + sensor, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-C-E-S-50EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop + sensor, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-H-50EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-H-E-50EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-H-S-50EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop + sensor, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-60-H-E-S-50EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop + sensor, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-50EHFBG-03 Power-Saving, 125L/min, no pilot relief valve (flow control only), Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: Internal pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-E-50EHFBG-03 Power-Saving, 125L/min, no pilot relief valve (flow control only), External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: External pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-C-50EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-C-E-50EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-C-S-50EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop + sensor, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-C-E-S-50EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop + sensor, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-H-50EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-H-E-50EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-H-S-50EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop + sensor, Internal pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
EHFBG-03-125-H-E-S-50EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop + sensor, External pilot | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50
