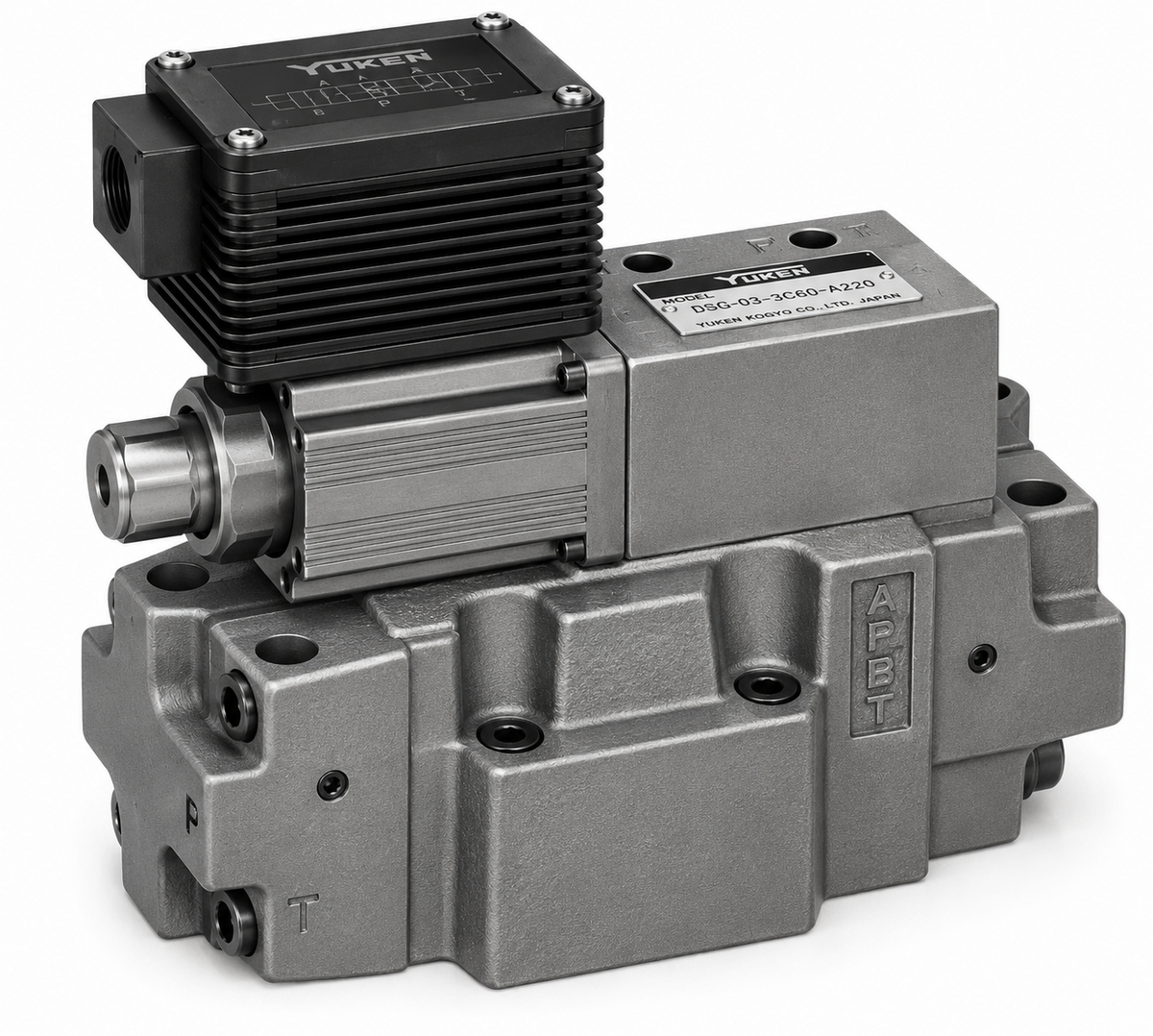

Yuken EHRBG-10 Proportional Relieving & Reducing Valve (24.5 MPa, max 250 L/min, size 10)

Yuken EHRBG-10 Proportional Relieving & Reducing Valve (24.5 MPa, max 250 L/min, size 10)

Proportional Electro-Hydraulic Relieving and Reducing Valves.

Key features

  • Integrates the compact high-performance EH-series 1/8 proportional pilot relief valve with a relief-built-in reducing valve; controls system pressure proportionally to input voltage with good response on pressure drop even at large flow
  • Sub-plate mounting, valve size 10
  • Max operating pressure 24.5 MPa, max flow 250 L/min, max relief flow 15 L/min
  • Pressure adjustment range B: 0.9–6.9 MPa / C: 1.2–13.7 MPa / H: 1.5–20.6 MPa
  • Coil resistance 10Ω, supply DC24V (28W max)
  • Open-loop and sensor-equipped (S) versions

Specifications

Type Proportional Relieving and Reducing Valve
Series EHRBG
Mounting Sub-plate (G)
Valve Size 10
Max Flow 250 L/min
Max Relief Flow 15 L/min
Coil 10Ω, DC24V
Design No. 50
EHRBG-10-B-50 EHRBG-10 Relieving/Reducing, B 0.9–6.9 MPa, Open loop, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: B (0.9–6.9 MPa) | Max Pressure: 6.9 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-B-S-50 EHRBG-10 Relieving/Reducing, B 0.9–6.9 MPa, Open loop + built-in sensor, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: B (0.9–6.9 MPa) | Max Pressure: 6.9 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-C-50 EHRBG-10 Relieving/Reducing, C 1.2–13.7 MPa, Open loop, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: C (1.2–13.7 MPa) | Max Pressure: 13.7 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-C-S-50 EHRBG-10 Relieving/Reducing, C 1.2–13.7 MPa, Open loop + built-in sensor, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: C (1.2–13.7 MPa) | Max Pressure: 13.7 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-H-50 EHRBG-10 Relieving/Reducing, H 1.5–20.6 MPa, Open loop, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: H (1.5–20.6 MPa) | Max Pressure: 20.6 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-H-S-50 EHRBG-10 Relieving/Reducing, H 1.5–20.6 MPa, Open loop + built-in sensor, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: H (1.5–20.6 MPa) | Max Pressure: 20.6 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
Proportional Pressure ReducingYuken
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken EHRBG-10 Proportional Relieving & Reducing Valve (24.5 MPa, max 250 L/min, size 10)

Brand Yuken·Proportional Pressure Reducing

Available part numbers (6)

EHRBG-10-B-50, EHRBG-10-B-S-50, EHRBG-10-C-50, EHRBG-10-C-S-50, EHRBG-10-H-50, EHRBG-10-H-S-50

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EHRBG-10-B-50EHRBG-10 Relieving/Reducing, B 0.9–6.9 MPa, Open loop, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: B (0.9–6.9 MPa) | Max Pressure: 6.9 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-B-S-50EHRBG-10 Relieving/Reducing, B 0.9–6.9 MPa, Open loop + built-in sensor, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: B (0.9–6.9 MPa) | Max Pressure: 6.9 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-C-50EHRBG-10 Relieving/Reducing, C 1.2–13.7 MPa, Open loop, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: C (1.2–13.7 MPa) | Max Pressure: 13.7 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-C-S-50EHRBG-10 Relieving/Reducing, C 1.2–13.7 MPa, Open loop + built-in sensor, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: C (1.2–13.7 MPa) | Max Pressure: 13.7 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-H-50EHRBG-10 Relieving/Reducing, H 1.5–20.6 MPa, Open loop, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: H (1.5–20.6 MPa) | Max Pressure: 20.6 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50
EHRBG-10-H-S-50EHRBG-10 Relieving/Reducing, H 1.5–20.6 MPa, Open loop + built-in sensor, max 250 L/min | Type: Proportional Relieving and Reducing Valve | Series: EHRBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 250 L/min | Max Relief Flow: 15 L/min | Pressure Adj. Range: H (1.5–20.6 MPa) | Max Pressure: 20.6 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50
