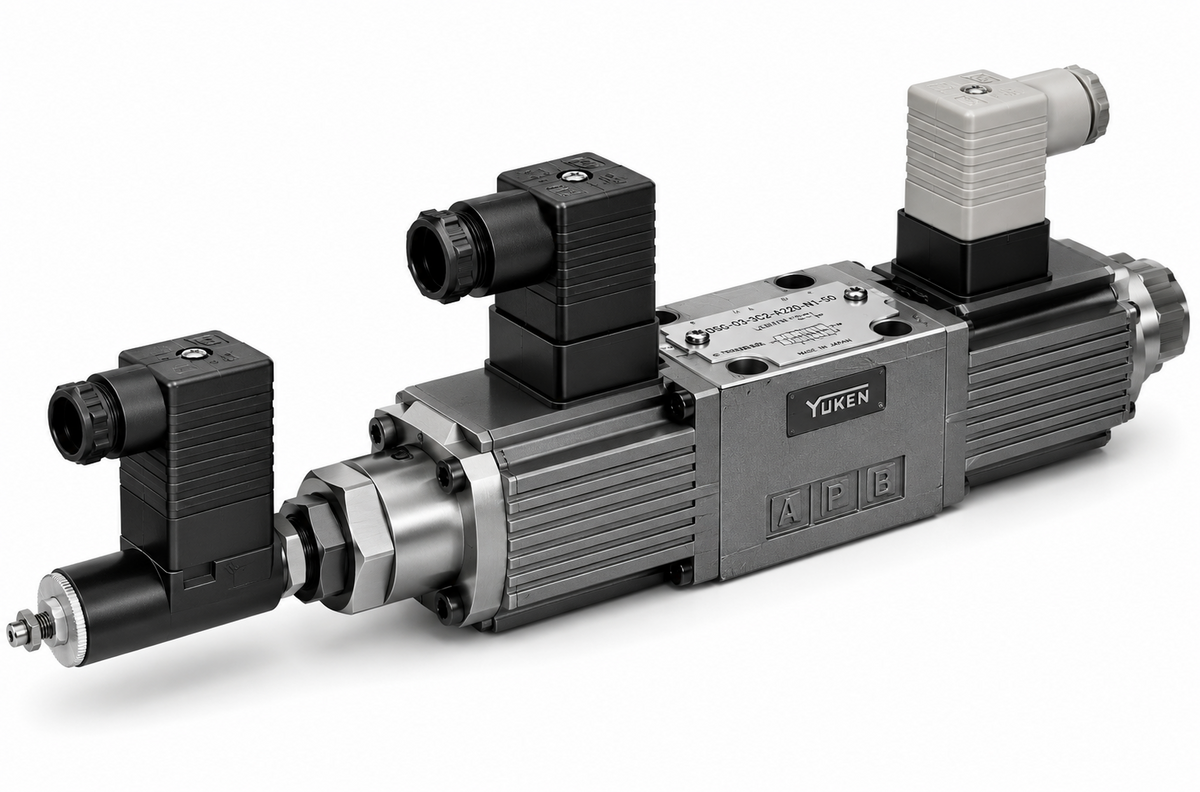

Yuken ELDFG-03 High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series, 31.5 MPa, rated 40/80 L/min, size 03)

Yuken ELDFG-03 High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series, 31.5 MPa, rated 40/80 L/min, size 03)

High Response Type Proportional Electro-Hydraulic Directional and Flow Control Valves.

Key features

  • Use with a dedicated Yuken external power amplifier
  • Sub-plate mounting, valve size 03, rated flow 40/80 L/min at 1.5 MPa valve pressure drop
  • Max operating pressure 31.5 MPa, tank pressure 21 MPa
  • Spool forms 3C2/3C40/3C2P; meter-in/meter-out (XY)
  • Hysteresis 0.5%
  • Coil 3Ω, rated current max 3 A (27 W max)

Specifications

Type High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series)
Series ELDFG
Mounting Sub-plate
Valve Size 03
Max Pressure 31.5 MPa
Tank Pressure 21 MPa
Control Direction XY (meter-in/meter-out)
Hysteresis 0.5%
Coil 3Ω, rated current max 3 A
Feedback Spool-position differential transformer (closed loop)
Drive Use with dedicated external power amplifier
Design No. 10
ELDFG-03-40-3C2-XY-10 ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C2 | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-40-3C40-XY-10 ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C40 | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-40-3C2P-XY-10 ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C2P | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2P (zero-lap) | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-80-3C2-XY-10 ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C2 | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-80-3C40-XY-10 ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C40 | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-80-3C2P-XY-10 ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C2P | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2P (zero-lap) | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
Proportional Directional & FlowYuken
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken ELDFG-03 High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series, 31.5 MPa, rated 40/80 L/min, size 03)

Brand Yuken·Proportional Directional & Flow

Available part numbers (6)

ELDFG-03-40-3C2-XY-10, ELDFG-03-40-3C40-XY-10, ELDFG-03-40-3C2P-XY-10, ELDFG-03-80-3C2-XY-10, ELDFG-03-80-3C40-XY-10, ELDFG-03-80-3C2P-XY-10

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ELDFG-03-40-3C2-XY-10ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C2 | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-40-3C40-XY-10ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C40 | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-40-3C2P-XY-10ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C2P | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2P (zero-lap) | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-80-3C2-XY-10ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C2 | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-80-3C40-XY-10ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C40 | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
ELDFG-03-80-3C2P-XY-10ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C2P | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2P (zero-lap) | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10
