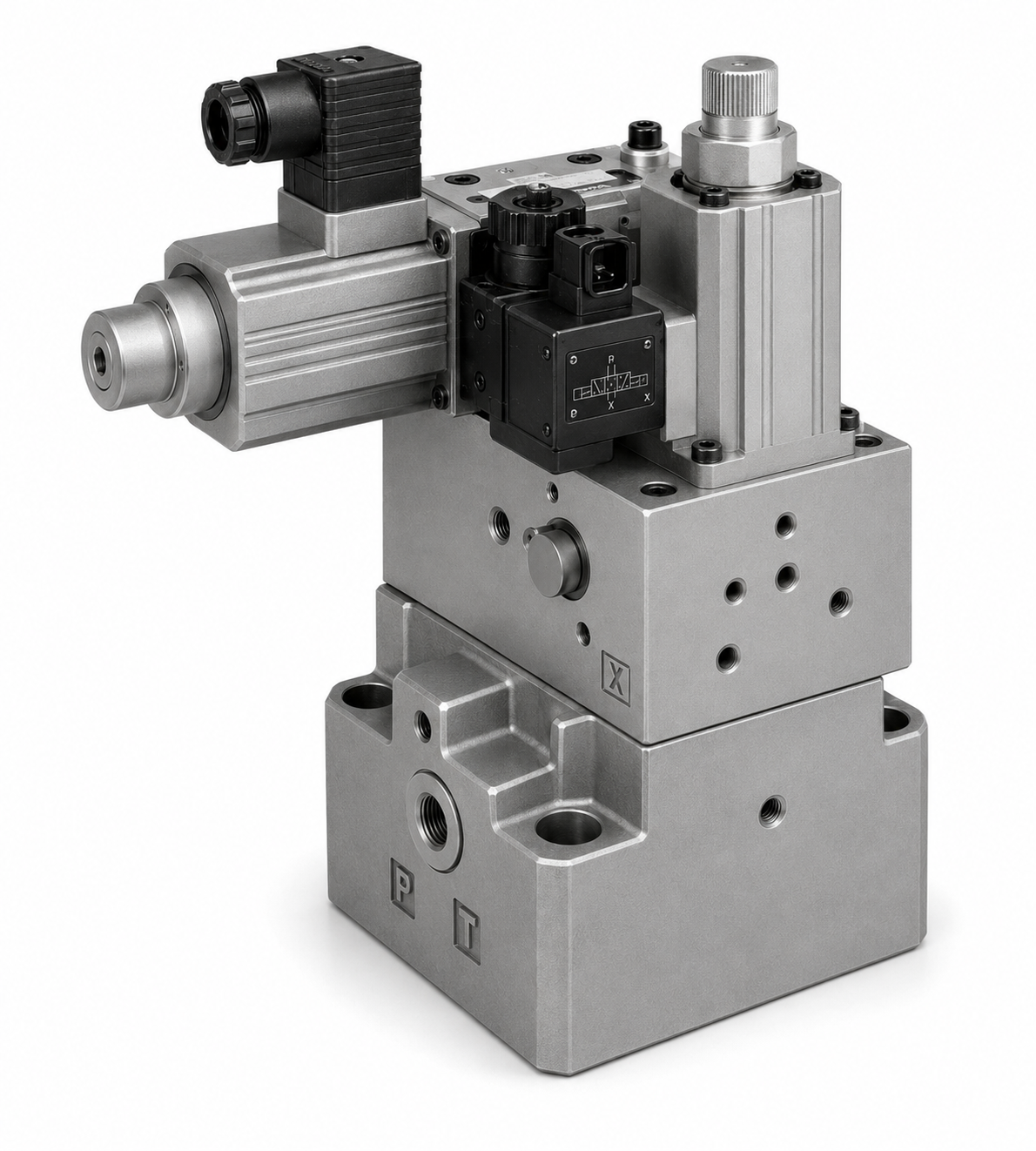

Yuken ELFBG-03-170 High-Performance Proportional Power-Saving Valve (E series, 25 MPa, max 170 L/min)

Yuken ELFBG-03-170 High-Performance Proportional Power-Saving Valve (E series, 25 MPa, max 170 L/min)

High-Performance Proportional Electro-Hydraulic Flow Control and Relief Valves.

Key features

  • The flow-control system is voltage-driven (DC10V input, coil 4Ω) while the pressure-control system is current-driven (coil 10Ω)
  • Use with a dedicated Yuken power amplifier
  • Sub-plate mounting, valve size 03
  • Max operating pressure 25 MPa, max flow 170 L/min (1–170 L/min)
  • Pilot-relief pressure range C: 2.3–18 MPa
  • Internal/external pilot

Specifications

Type High-Performance Proportional Power-Saving Valve (Flow Control + Relief, E series)
Series ELFBG
Mounting Sub-plate (G)
Valve Size 03
Max Adjustable Flow 170 L/min
Flow Adj. Range 1–170 L/min
Max Pressure 25 MPa
Pilot Relief Pressure C (2.3–18 MPa)
Pressure-control Rated Current 970 mA
Flow-control Voltage input DC10V, coil 4Ω, LVDT spool-position feedback
Pressure-control Current input, coil 10Ω
Valve Pressure Drop 0.85–1 MPa
ELFBG-03-170-C-10 ELFBG-03-170 High-Performance Power-Saving (E), pilot relief C, Internal pilot | Type: High-Performance Proportional Power-Saving Valve (Flow Control + Relief, E series) | Series: ELFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 170 L/min | Flow Adj. Range: 1–170 L/min | Max Pressure: 25 MPa | Pilot Relief Pressure: C (2.3–18 MPa) | Pressure-control Rated Current: 970 mA | Pilot: Internal pilot | Flow-control: Voltage input DC10V, coil 4Ω, LVDT spool-position feedback | Pressure-control: Current input, coil 10Ω | Valve Pressure Drop: 0.85–1 MPa | Hysteresis: 0.5% | Drive: Use with dedicated power amplifier | Design No.: 10
ELFBG-03-170-C-E-10 ELFBG-03-170 High-Performance Power-Saving (E), pilot relief C, External pilot | Type: High-Performance Proportional Power-Saving Valve (Flow Control + Relief, E series) | Series: ELFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 170 L/min | Flow Adj. Range: 1–170 L/min | Max Pressure: 25 MPa | Pilot Relief Pressure: C (2.3–18 MPa) | Pressure-control Rated Current: 970 mA | Pilot: External pilot | Flow-control: Voltage input DC10V, coil 4Ω, LVDT spool-position feedback | Pressure-control: Current input, coil 10Ω | Valve Pressure Drop: 0.85–1 MPa | Hysteresis: 0.5% | Drive: Use with dedicated power amplifier | Design No.: 10
Proportional Power SavingYuken
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken ELFBG-03-170 High-Performance Proportional Power-Saving Valve (E series, 25 MPa, max 170 L/min)

Brand Yuken·Proportional Power Saving

Available part numbers (2)

ELFBG-03-170-C-10, ELFBG-03-170-C-E-10

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ELFBG-03-170-C-10ELFBG-03-170 High-Performance Power-Saving (E), pilot relief C, Internal pilot | Type: High-Performance Proportional Power-Saving Valve (Flow Control + Relief, E series) | Series: ELFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 170 L/min | Flow Adj. Range: 1–170 L/min | Max Pressure: 25 MPa | Pilot Relief Pressure: C (2.3–18 MPa) | Pressure-control Rated Current: 970 mA | Pilot: Internal pilot | Flow-control: Voltage input DC10V, coil 4Ω, LVDT spool-position feedback | Pressure-control: Current input, coil 10Ω | Valve Pressure Drop: 0.85–1 MPa | Hysteresis: 0.5% | Drive: Use with dedicated power amplifier | Design No.: 10
ELFBG-03-170-C-E-10ELFBG-03-170 High-Performance Power-Saving (E), pilot relief C, External pilot | Type: High-Performance Proportional Power-Saving Valve (Flow Control + Relief, E series) | Series: ELFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 170 L/min | Flow Adj. Range: 1–170 L/min | Max Pressure: 25 MPa | Pilot Relief Pressure: C (2.3–18 MPa) | Pressure-control Rated Current: 970 mA | Pilot: External pilot | Flow-control: Voltage input DC10V, coil 4Ω, LVDT spool-position feedback | Pressure-control: Current input, coil 10Ω | Valve Pressure Drop: 0.85–1 MPa | Hysteresis: 0.5% | Drive: Use with dedicated power amplifier | Design No.: 10
