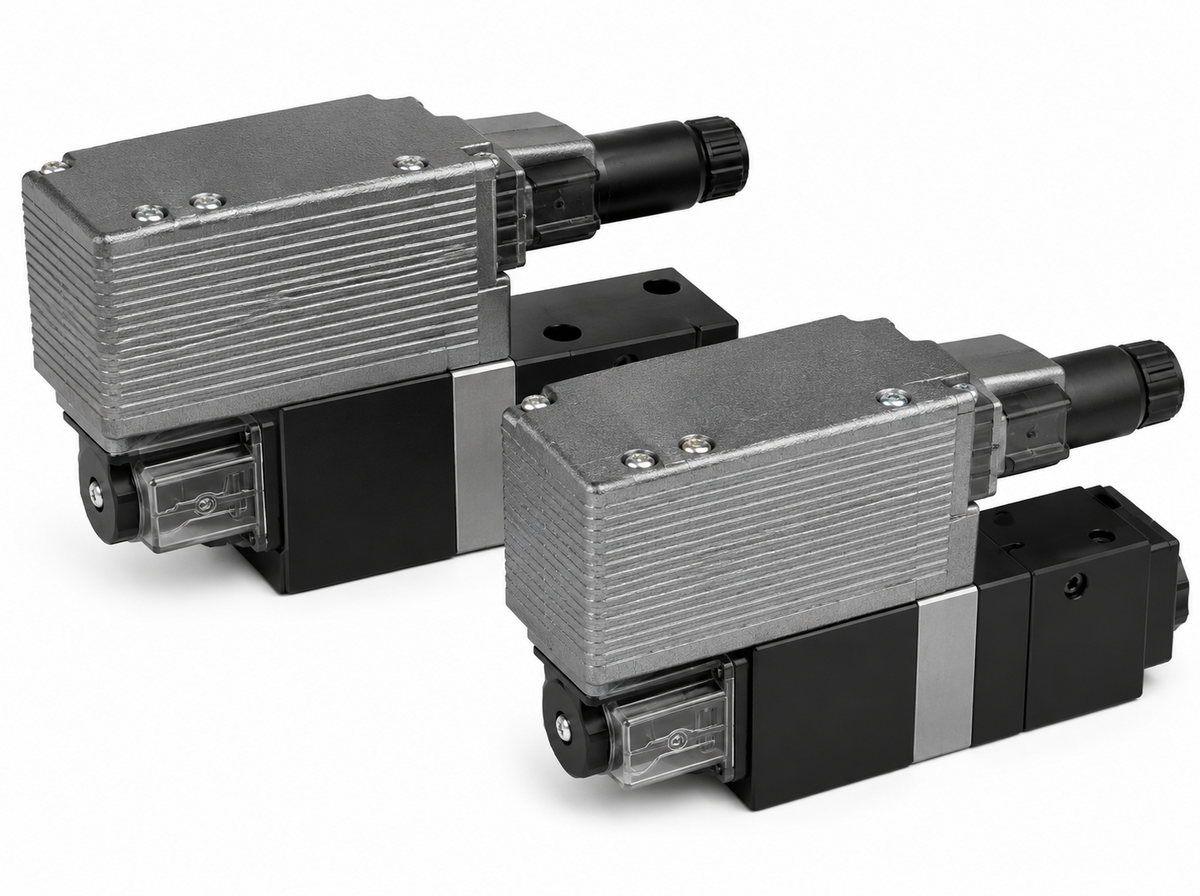

Yuken LSVG-01EH On-Board Electronic Direct Linear Servo Valve

Yuken LSVG-01EH On-Board Electronic Direct Linear Servo Valve

On-board electronic (OBE) type direct-operated linear servo valve, realizing the 'high precision, simple, convenient' concept of the LSVG and LSVHG-EH series in a direct-operated form.

Key features

  • Hysteresis 0.1% or less; step response 3 ms; frequency response up to 260 Hz
  • Operates from a DC 24 V supply with command-signal input only; built-in amplifier with fault-diagnosis indicator
  • Usable to NAS 1638 class 10 (ISO4406 21/19/15)
  • Safety device PABT / PBAT / neutral; connector 6+PE / 11+PE; dry (Y-port) or wet (no Y-port) type — selectable per order

Specifications

Type Direct (single-stage), on-board electronic (OBE) amp-mounted
Valve Frame 01 (ISO 4401-03)
Max Operating Pressure 35 MPa
Tank Port Pressure 21 (7) MPa
Step Response (0↔100%) 3 ms (3.5)
Frequency Resp. (−3 dB gain) 240 Hz (230)
Frequency Resp. (−90° phase) 300 Hz (270)
Spool Rated Stroke ±0.5 mm
Mass 4.3 kg
Mounting Bolts M5×55L ×4 (6.0–8.0 N·m)
Built-in Amplifier On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA
Safety Device (select) A=PABT-open / B=PBAT-open / C=neutral
LSVG-01EH-4-A LSVG-01EH OBE Direct Servo Valve, 4 L/min, input A | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 4 L/min | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.4 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-4-B LSVG-01EH OBE Direct Servo Valve, 4 L/min, input B | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 4 L/min | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.4 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-4-C LSVG-01EH OBE Direct Servo Valve, 4 L/min, input C | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 4 L/min | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.4 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-4-D LSVG-01EH OBE Direct Servo Valve, 4 L/min, input D | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 4 L/min | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.4 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-4-E LSVG-01EH OBE Direct Servo Valve, 4 L/min, input E | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 4 L/min | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.4 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-4-F LSVG-01EH OBE Direct Servo Valve, 4 L/min, input F | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 4 L/min | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.4 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-10-A LSVG-01EH OBE Direct Servo Valve, 10 L/min, input A | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 10 L/min | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.8 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-10-B LSVG-01EH OBE Direct Servo Valve, 10 L/min, input B | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 10 L/min | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.8 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-10-C LSVG-01EH OBE Direct Servo Valve, 10 L/min, input C | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 10 L/min | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.8 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-10-D LSVG-01EH OBE Direct Servo Valve, 10 L/min, input D | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 10 L/min | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.8 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-10-E LSVG-01EH OBE Direct Servo Valve, 10 L/min, input E | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 10 L/min | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.8 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-10-F LSVG-01EH OBE Direct Servo Valve, 10 L/min, input F | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 10 L/min | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 0.8 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-20-A LSVG-01EH OBE Direct Servo Valve, 20 L/min, input A | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 20 L/min | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.2 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-20-B LSVG-01EH OBE Direct Servo Valve, 20 L/min, input B | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 20 L/min | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.2 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-20-C LSVG-01EH OBE Direct Servo Valve, 20 L/min, input C | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 20 L/min | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.2 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-20-D LSVG-01EH OBE Direct Servo Valve, 20 L/min, input D | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 20 L/min | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.2 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-20-E LSVG-01EH OBE Direct Servo Valve, 20 L/min, input E | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 20 L/min | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.2 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
LSVG-01EH-20-F LSVG-01EH OBE Direct Servo Valve, 20 L/min, input F | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 01 (ISO 4401-03) | Rated Flow (ΔP=7MPa): 20 L/min | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Max Operating Pressure: 35 MPa | Tank Port Pressure: 21 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.2 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 240 Hz (230) | Frequency Resp. (−90° phase): 300 Hz (270) | Spool Rated Stroke: ±0.5 mm | Mass: 4.3 kg | Mounting Bolts: M5×55L ×4 (6.0–8.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23
