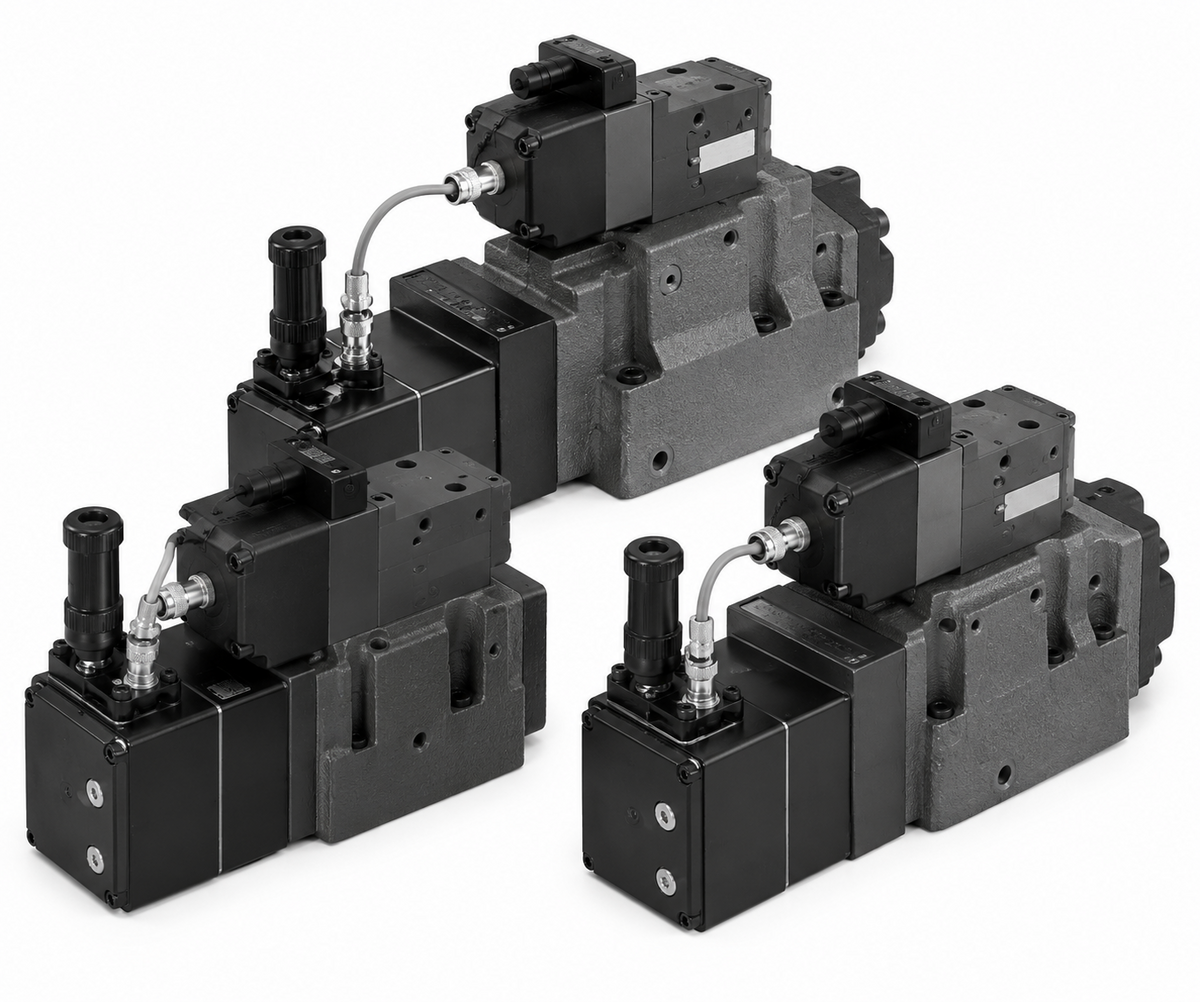

Yuken LSVHG-03EH-270 Two-Stage OBE Linear Servo Valve (270 L/min)

Yuken LSVHG-03EH-270 Two-Stage OBE Linear Servo Valve (270 L/min)

On-board electronic (OBE) two-stage linear servo valve, based on the two-stage high-speed linear servo valve with a miniaturized pilot stage and a compact integrated dedicated amplifier, realizing 'high precision, simple, convenient'. Rated flow 270 L/min.

Key features

  • Hysteresis 0.1% or less
  • DC 24 V supply with command-signal input only; built-in fault-diagnosis indicator
  • Dry and wet pilot types selectable
  • Usable to NAS 1638 class 10 (ISO4406 21/19/15)
  • Input-signal versions ±10 V / 4–20 mA / ±10 mA with spool monitor

Specifications

Type Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted
Valve Frame 03 (ISO 4401-05)
Rated Flow (ΔP=7MPa) 270 L/min
Max Operating Pressure 31.5 MPa
Tank Port Pressure 21 MPa
Pilot Supply Pressure 1.5–21 MPa
Pilot Flow ≥9 (8) L/min
Drain Port DR Back Pressure 0.05 MPa max (W type: no DR port, wet)
Step Response (0↔100%) 7 ms (9)
Frequency Resp. (−3 dB gain) 125 Hz (110)
Frequency Resp. (−90° phase) 110 Hz (100)
Main Spool Rated Stroke ±3.5 mm
LSVHG-03EH-270-2-A LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2, input A | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2 | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (per spool): EC (solenoid valve attached, neutral) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2-B LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2, input B | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2 | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (per spool): EC (solenoid valve attached, neutral) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2-C LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2, input C | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2 | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (per spool): EC (solenoid valve attached, neutral) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2-D LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2, input D | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2 | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (per spool): EC (solenoid valve attached, neutral) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2-E LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2, input E | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2 | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (per spool): EC (solenoid valve attached, neutral) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2-F LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2, input F | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2 | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (per spool): EC (solenoid valve attached, neutral) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-40-A LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 40, input A | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 40 (A,B,T connected at neutral) | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-40-B LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 40, input B | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 40 (A,B,T connected at neutral) | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-40-C LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 40, input C | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 40 (A,B,T connected at neutral) | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-40-D LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 40, input D | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 40 (A,B,T connected at neutral) | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-40-E LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 40, input E | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 40 (A,B,T connected at neutral) | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-40-F LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 40, input F | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 40 (A,B,T connected at neutral) | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2P-A LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2P, input A | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2P (zero-lap, dual flow gain) | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2P-B LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2P, input B | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2P (zero-lap, dual flow gain) | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2P-C LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2P, input C | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2P (zero-lap, dual flow gain) | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2P-D LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2P, input D | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2P (zero-lap, dual flow gain) | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2P-E LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2P, input E | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2P (zero-lap, dual flow gain) | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
LSVHG-03EH-270-2P-F LSVHG-03EH-270 2-Stage OBE Servo Valve, spool 2P, input F | Type: Two-stage (pilot-operated), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 270 L/min | Spool Type: 2P (zero-lap, dual flow gain) | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (per spool): blank=PBAT full-open / A=PABT full-open (no solenoid) | Max Operating Pressure: 31.5 MPa | Tank Port Pressure: 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥9 (8) L/min | Drain Port DR Back Pressure: 0.05 MPa max (W type: no DR port, wet) | Step Response (0↔100%): 7 ms (9) | Frequency Resp. (−3 dB gain): 125 Hz (110) | Frequency Resp. (−90° phase): 110 Hz (100) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple) | Linear Motor: 2.1 A max, coil 9.6 Ω | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-31/I-32/I-33
