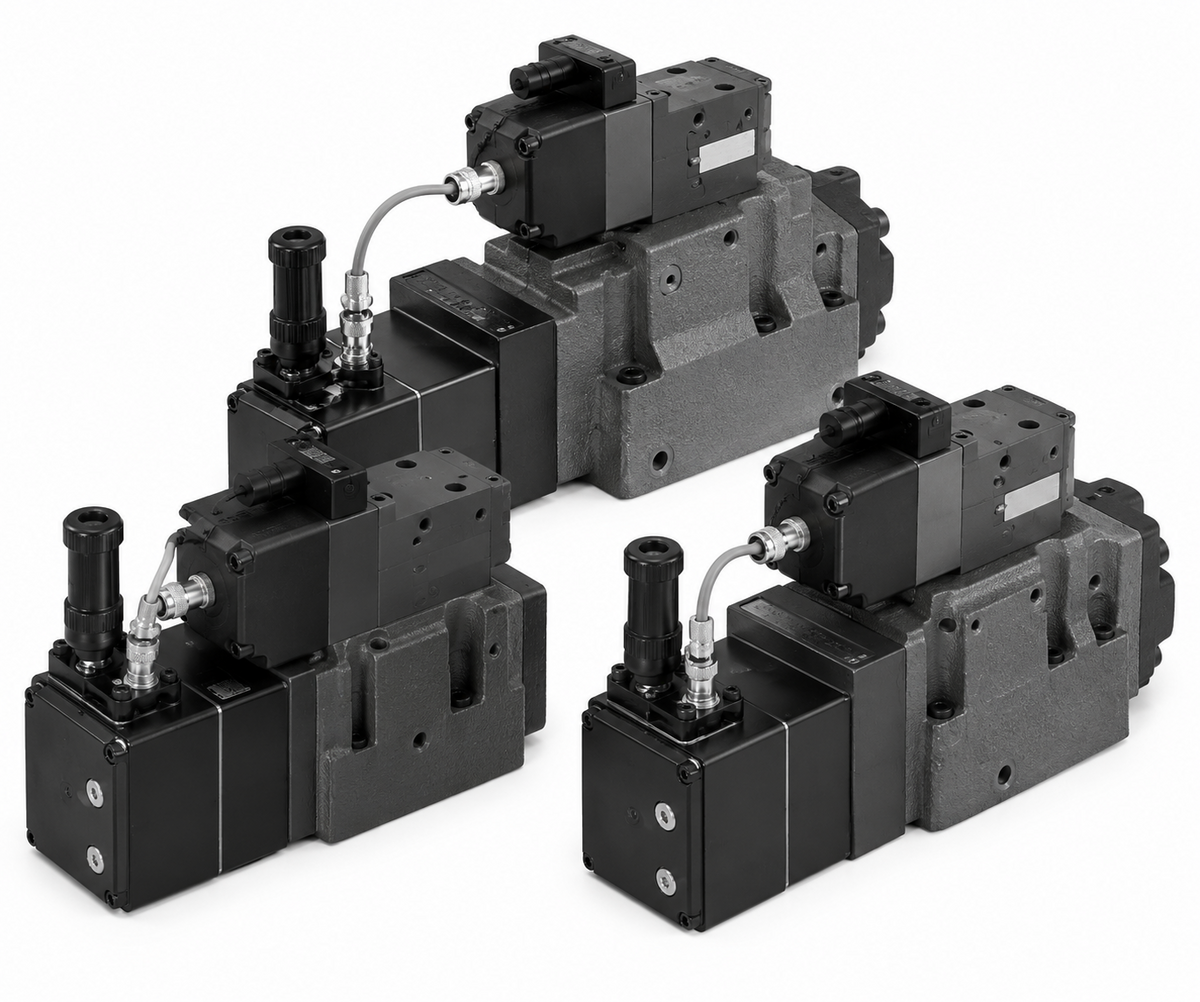

Yuken LSVHG-03EH-S High-Performance Two-Stage OBE Linear Servo Valve (60–160 L/min)

Yuken LSVHG-03EH-S High-Performance Two-Stage OBE Linear Servo Valve (60–160 L/min)

High-performance on-board electronic (OBE) two-stage linear servo valve.

Key features

  • Based on the standard-type OBE linear servo valve with an added sleeve; spool and sleeve are machined together to ensure a precise 1% overlap, suiting systems that demand higher precision and durability
  • Hysteresis 0.1% or less; step response from 7 ms. 1% overlap spool (form S), available as 3-way (A-port) or 4-way valve
  • Rated flow 60/100/160 L/min
  • DC 24 V supply, command-signal input only, built-in fault-diagnosis indicator
  • Usable to NAS 1638 class 10 (ISO4406 21/19/15)
  • Note: 3-way version accepts input signals D/E/F only

Specifications

Type Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap)
Valve Frame 03 (ISO 4401-05)
Max Operating Pressure 31.5 MPa
Tank Port Pressure (T) 21 MPa
Pilot Supply Pressure 1.5–21 MPa
Pilot Flow ≥4 L/min
Step Response (0↔100%) 7 ms (8)
Frequency Resp. (−3 dB gain) 110 Hz (80)
Frequency Resp. (−90° phase) 110 Hz (90)
Main Spool Rated Stroke ±3.5 mm
Main Spool Pressure Area 1.3 cm²
Built-in Amplifier On-board (OBE), DC 24 V
LSVHG-03EH-60-S4-A LSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input A | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-B LSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input B | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-C LSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input C | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-D LSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-E LSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-F LSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S3-D LSVHG-03EH-60 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.3 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S3-E LSVHG-03EH-60 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.3 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S3-F LSVHG-03EH-60 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.3 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-A LSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input A | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-B LSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input B | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-C LSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input C | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-D LSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-E LSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-F LSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S3-D LSVHG-03EH-100 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S3-E LSVHG-03EH-100 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S3-F LSVHG-03EH-100 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-A LSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input A | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-B LSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input B | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-C LSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input C | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-D LSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-E LSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-F LSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S3-D LSVHG-03EH-160 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S3-E LSVHG-03EH-160 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S3-F LSVHG-03EH-160 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
Servo ValvesYuken
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken LSVHG-03EH-S High-Performance Two-Stage OBE Linear Servo Valve (60–160 L/min)

Brand Yuken·Servo Valves

Available part numbers (27)

LSVHG-03EH-60-S4-A, LSVHG-03EH-60-S4-B, LSVHG-03EH-60-S4-C, LSVHG-03EH-60-S4-D, LSVHG-03EH-60-S4-E, LSVHG-03EH-60-S4-F, LSVHG-03EH-60-S3-D, LSVHG-03EH-60-S3-E, LSVHG-03EH-60-S3-F, LSVHG-03EH-100-S4-A + 17 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSVHG-03EH-60-S4-ALSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input A | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-BLSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input B | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-CLSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input C | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-DLSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-ELSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S4-FLSVHG-03EH-60 High-Perf OBE Servo Valve, S4 (4-way valve), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S3-DLSVHG-03EH-60 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.3 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S3-ELSVHG-03EH-60 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.3 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-60-S3-FLSVHG-03EH-60 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 60 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.3 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-ALSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input A | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-BLSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input B | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-CLSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input C | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-DLSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-ELSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S4-FLSVHG-03EH-100 High-Perf OBE Servo Valve, S4 (4-way valve), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S3-DLSVHG-03EH-100 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S3-ELSVHG-03EH-100 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-100-S3-FLSVHG-03EH-100 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 100 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 0.6 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-ALSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input A | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-BLSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input B | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-CLSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input C | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-DLSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-ELSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S4-FLSVHG-03EH-160 High-Perf OBE Servo Valve, S4 (4-way valve), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=7MPa) | Spool / Control: S (1% overlap) / 4-way valve | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open / A=PABT full-open / EA=sol PBAT 10% / EB=sol PABT 10% | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 2.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S3-DLSVHG-03EH-160 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input D | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S3-ELSVHG-03EH-160 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input E | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53
LSVHG-03EH-160-S3-FLSVHG-03EH-160 High-Perf OBE Servo Valve, S3 (3-way valve (A-port, ΔP=3.5MPa rating)), input F | Type: Two-stage (pilot-operated) OBE, high-performance (sleeve-type, 1% overlap) | Valve Frame: 03 (ISO 4401-05) | Rated Flow: 160 L/min (ΔP=3.5MPa) | Spool / Control: S (1% overlap) / 3-way valve (A-port, ΔP=3.5MPa rating) | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Safety Device (select): blank=PBAT full-open (no solenoid) / EB=sol PABT 10% [★ 3-way: input D/E/F only] | Max Operating Pressure: 31.5 MPa | Tank Port Pressure (T): 21 MPa | Pilot Supply Pressure: 1.5–21 MPa | Pilot Flow: ≥4 L/min | Main Valve Internal Leakage: 1.1 L/min (14MPa, 32mm²/s) | Step Response (0↔100%): 7 ms (8) | Frequency Resp. (−3 dB gain): 110 Hz (80) | Frequency Resp. (−90° phase): 110 Hz (90) | Main Spool Rated Stroke: ±3.5 mm | Main Spool Pressure Area: 1.3 cm² | Built-in Amplifier: On-board (OBE), DC 24 V | Pilot / Drain Form: Internal pilot+ext drain (std) / E=ext pilot / T=int drain / W=no DR port (wet) | Connector (select): 1=6+PE / 2=11+PE | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Mass: 8.5 [11] kg ([ ] = with safety solenoid valve) | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals); W type not for water-glycol | Source: Yuken Cat. I-Edit0, I-52/I-53

Need a different model, or a part not listed here? Send us your parts list →
