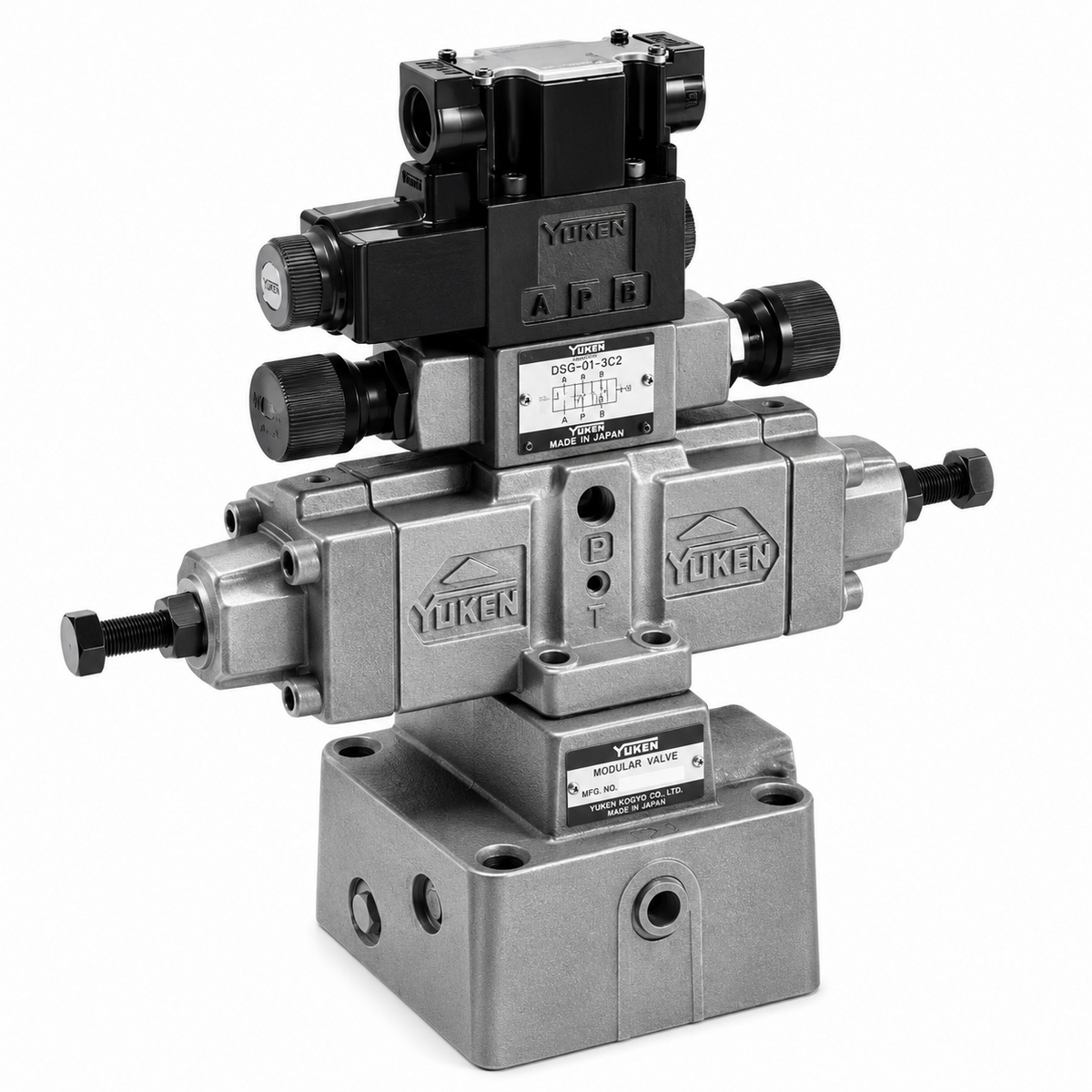

Yuken Pilot Operated Flow Control and Check Valve (FHCG)

Yuken Pilot Operated Flow Control and Check Valve (FHCG)

Pilot Operated Flow Control Valves · Pilot Operated Flow Control and Check Valves.

Key features

  • Max. operating pressure: 21 MPa
  • Min. pilot pressure: 1.5 MPa
  • Max. adjustable flow: 30 (02) / 125 (03) / 250 (06) / 500 (10) L/min
  • Pressure-compensated piston opening adjustment (-N) and pilot-valve-less (-O) options
  • Pilot valve = solenoid valve (DSG-01) + throttle check modular valve (MSW-01)
  • Coil (specify): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt)

Specifications

Type Pilot Operated Flow Control and Check Valve
Mounting Sub-plate
Check Valve Yes (free reverse flow)
Max. Operating Pressure 21 MPa
Min. Pilot Pressure 1.5 MPa
Design No. 13
FHCG-02-30-13 Pilot Operated Flow Control and Check Valve FHCG-02-30 | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 02 | Max. Adjustable Flow: 30 L/min | Min. Adjustable Flow: 0.05 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 13 kg | Design No.: 13
FHCG-02-30-O-13 Pilot Operated Flow Control and Check Valve FHCG-02-30-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 02 | Max. Adjustable Flow: 30 L/min | Min. Adjustable Flow: 0.05 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 13 kg | Design No.: 13
FHCG-02-30-N-13 Pilot Operated Flow Control and Check Valve FHCG-02-30-N | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 02 | Max. Adjustable Flow: 30 L/min | Min. Adjustable Flow: 0.05 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 13 kg | Design No.: 13
FHCG-02-30-N-O-13 Pilot Operated Flow Control and Check Valve FHCG-02-30-N-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 02 | Max. Adjustable Flow: 30 L/min | Min. Adjustable Flow: 0.05 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 13 kg | Design No.: 13
FHCG-03-125-13 Pilot Operated Flow Control and Check Valve FHCG-03-125 | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 03 | Max. Adjustable Flow: 125 L/min | Min. Adjustable Flow: 0.2 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 17 kg | Design No.: 13
FHCG-03-125-O-13 Pilot Operated Flow Control and Check Valve FHCG-03-125-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 03 | Max. Adjustable Flow: 125 L/min | Min. Adjustable Flow: 0.2 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 17 kg | Design No.: 13
FHCG-03-125-N-13 Pilot Operated Flow Control and Check Valve FHCG-03-125-N | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 03 | Max. Adjustable Flow: 125 L/min | Min. Adjustable Flow: 0.2 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 17 kg | Design No.: 13
FHCG-03-125-N-O-13 Pilot Operated Flow Control and Check Valve FHCG-03-125-N-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 03 | Max. Adjustable Flow: 125 L/min | Min. Adjustable Flow: 0.2 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 17 kg | Design No.: 13
FHCG-06-250-13 Pilot Operated Flow Control and Check Valve FHCG-06-250 | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 06 | Max. Adjustable Flow: 250 L/min | Min. Adjustable Flow: 2 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 32 kg | Design No.: 13
FHCG-06-250-O-13 Pilot Operated Flow Control and Check Valve FHCG-06-250-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 06 | Max. Adjustable Flow: 250 L/min | Min. Adjustable Flow: 2 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 32 kg | Design No.: 13
FHCG-06-250-N-13 Pilot Operated Flow Control and Check Valve FHCG-06-250-N | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 06 | Max. Adjustable Flow: 250 L/min | Min. Adjustable Flow: 2 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 32 kg | Design No.: 13
FHCG-06-250-N-O-13 Pilot Operated Flow Control and Check Valve FHCG-06-250-N-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 06 | Max. Adjustable Flow: 250 L/min | Min. Adjustable Flow: 2 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 32 kg | Design No.: 13
FHCG-10-500-13 Pilot Operated Flow Control and Check Valve FHCG-10-500 | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 10 | Max. Adjustable Flow: 500 L/min | Min. Adjustable Flow: 4 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 61 kg | Design No.: 13
FHCG-10-500-O-13 Pilot Operated Flow Control and Check Valve FHCG-10-500-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 10 | Max. Adjustable Flow: 500 L/min | Min. Adjustable Flow: 4 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 61 kg | Design No.: 13
FHCG-10-500-N-13 Pilot Operated Flow Control and Check Valve FHCG-10-500-N | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 10 | Max. Adjustable Flow: 500 L/min | Min. Adjustable Flow: 4 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 61 kg | Design No.: 13
FHCG-10-500-N-O-13 Pilot Operated Flow Control and Check Valve FHCG-10-500-N-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 10 | Max. Adjustable Flow: 500 L/min | Min. Adjustable Flow: 4 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 61 kg | Design No.: 13
Flow Control & Pilot OperatedYuken
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken Pilot Operated Flow Control and Check Valve (FHCG)

Brand Yuken·Flow Control & Pilot Operated

Available part numbers (16)

FHCG-02-30-13, FHCG-02-30-O-13, FHCG-02-30-N-13, FHCG-02-30-N-O-13, FHCG-03-125-13, FHCG-03-125-O-13, FHCG-03-125-N-13, FHCG-03-125-N-O-13, FHCG-06-250-13, FHCG-06-250-O-13 + 6 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FHCG-02-30-13Pilot Operated Flow Control and Check Valve FHCG-02-30 | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 02 | Max. Adjustable Flow: 30 L/min | Min. Adjustable Flow: 0.05 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 13 kg | Design No.: 13
FHCG-02-30-O-13Pilot Operated Flow Control and Check Valve FHCG-02-30-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 02 | Max. Adjustable Flow: 30 L/min | Min. Adjustable Flow: 0.05 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 13 kg | Design No.: 13
FHCG-02-30-N-13Pilot Operated Flow Control and Check Valve FHCG-02-30-N | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 02 | Max. Adjustable Flow: 30 L/min | Min. Adjustable Flow: 0.05 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 13 kg | Design No.: 13
FHCG-02-30-N-O-13Pilot Operated Flow Control and Check Valve FHCG-02-30-N-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 02 | Max. Adjustable Flow: 30 L/min | Min. Adjustable Flow: 0.05 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 13 kg | Design No.: 13
FHCG-03-125-13Pilot Operated Flow Control and Check Valve FHCG-03-125 | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 03 | Max. Adjustable Flow: 125 L/min | Min. Adjustable Flow: 0.2 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 17 kg | Design No.: 13
FHCG-03-125-O-13Pilot Operated Flow Control and Check Valve FHCG-03-125-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 03 | Max. Adjustable Flow: 125 L/min | Min. Adjustable Flow: 0.2 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 17 kg | Design No.: 13
FHCG-03-125-N-13Pilot Operated Flow Control and Check Valve FHCG-03-125-N | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 03 | Max. Adjustable Flow: 125 L/min | Min. Adjustable Flow: 0.2 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 17 kg | Design No.: 13
FHCG-03-125-N-O-13Pilot Operated Flow Control and Check Valve FHCG-03-125-N-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 03 | Max. Adjustable Flow: 125 L/min | Min. Adjustable Flow: 0.2 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 17 kg | Design No.: 13
FHCG-06-250-13Pilot Operated Flow Control and Check Valve FHCG-06-250 | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 06 | Max. Adjustable Flow: 250 L/min | Min. Adjustable Flow: 2 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 32 kg | Design No.: 13
FHCG-06-250-O-13Pilot Operated Flow Control and Check Valve FHCG-06-250-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 06 | Max. Adjustable Flow: 250 L/min | Min. Adjustable Flow: 2 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 32 kg | Design No.: 13
FHCG-06-250-N-13Pilot Operated Flow Control and Check Valve FHCG-06-250-N | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 06 | Max. Adjustable Flow: 250 L/min | Min. Adjustable Flow: 2 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 32 kg | Design No.: 13
FHCG-06-250-N-O-13Pilot Operated Flow Control and Check Valve FHCG-06-250-N-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 06 | Max. Adjustable Flow: 250 L/min | Min. Adjustable Flow: 2 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 32 kg | Design No.: 13
FHCG-10-500-13Pilot Operated Flow Control and Check Valve FHCG-10-500 | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 10 | Max. Adjustable Flow: 500 L/min | Min. Adjustable Flow: 4 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 61 kg | Design No.: 13
FHCG-10-500-O-13Pilot Operated Flow Control and Check Valve FHCG-10-500-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 10 | Max. Adjustable Flow: 500 L/min | Min. Adjustable Flow: 4 L/min | Pressure-Compensated Piston Opening Adj.: No | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 61 kg | Design No.: 13
FHCG-10-500-N-13Pilot Operated Flow Control and Check Valve FHCG-10-500-N | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 10 | Max. Adjustable Flow: 500 L/min | Min. Adjustable Flow: 4 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: Yes | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 61 kg | Design No.: 13
FHCG-10-500-N-O-13Pilot Operated Flow Control and Check Valve FHCG-10-500-N-O | Type: Pilot Operated Flow Control and Check Valve | Mounting: Sub-plate | Valve Size: 10 | Max. Adjustable Flow: 500 L/min | Min. Adjustable Flow: 4 L/min | Pressure-Compensated Piston Opening Adj.: Yes (-N) | Pilot Valve: No (-O) | Coil (RFQ): N/A (no pilot valve) | Wiring (RFQ): N/A (no pilot valve) | Check Valve: Yes (free reverse flow) | Max. Operating Pressure: 21 MPa | Min. Pilot Pressure: 1.5 MPa | Mass: 61 kg | Design No.: 13
