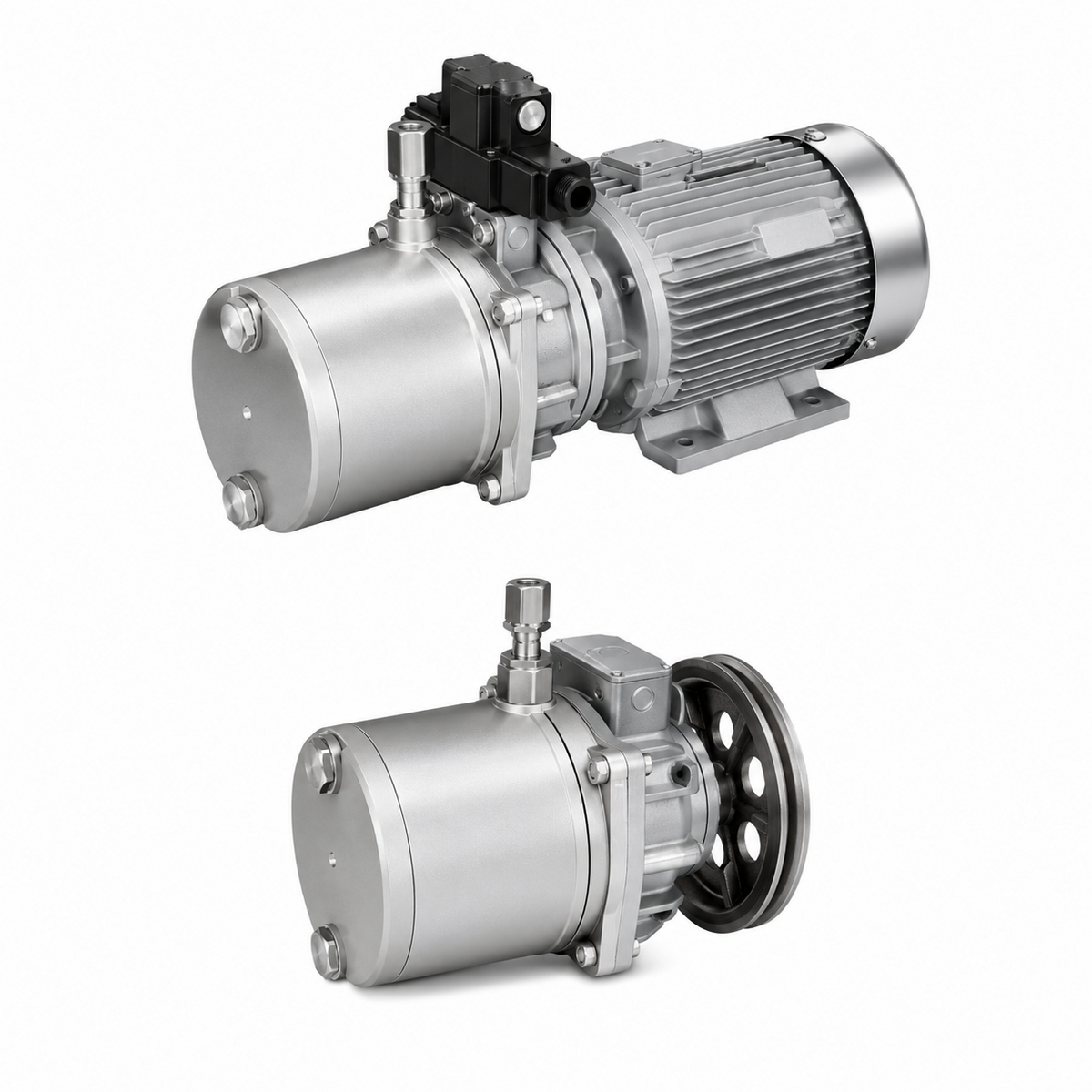

Yuken PMR2 Power Package (Motor-Driven Integrated Type, 14 MPa)

Yuken PMR2 Power Package (Motor-Driven Integrated Type, 14 MPa)

Power Package (Motor-Driven Integrated Type).

Key features

  • YUKEN's power package compactly integrates a small high-pressure vane pump, relief valve and oil tank, and allows a hydraulic circuit to be configured simply by stacking 1/8 solenoid valves (or manual selector valves) and modular valves
  • The PMR2 is a motor-driven (motor-integrated) package driven on AC 200/220 V, suited to small machines and general industrial machinery
  • Circuits can be added or changed simply by adding or changing the modular valves stacked on the package, and the package can be used immediately just by hydraulic piping between it and the actuator
  • Fifteen standard circuits are available (see Yuken Cat
  • K-48/K-49)
  • Solenoid valves use the DSG-01 series; manual selector valves use the DMG-01 series

Specifications

Type Power Package, Motor-Driven Integrated Type
Max Use Pressure 14 MPa
Relief Setting Range 3.5-14 MPa (specify as MPa x 10)
Pump Rotation Clockwise (viewed from motor fan side)
Tank Capacity 3.4 L
Circuit 00 (no valve) or 01-08 standard circuits (Cat. K-48/49)
Selector Valve Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08
Design No. 40
PMR2-6-A PMR2 motor-driven power package, 5.8cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 5.8 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-6-B PMR2 motor-driven power package, 5.8cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 5.8 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-8-A PMR2 motor-driven power package, 8.0cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 8.0 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-8-B PMR2 motor-driven power package, 8.0cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 8.0 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-10-A PMR2 motor-driven power package, 9.4cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 9.4 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-10-B PMR2 motor-driven power package, 9.4cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 9.4 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-12-A PMR2 motor-driven power package, 12.2cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 12.2 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-12-B PMR2 motor-driven power package, 12.2cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 12.2 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-14-A PMR2 motor-driven power package, 13.7cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 13.7 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-14-B PMR2 motor-driven power package, 13.7cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 13.7 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-17-A PMR2 motor-driven power package, 16.6cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 16.6 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-17-B PMR2 motor-driven power package, 16.6cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 16.6 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
Power UnitsYuken
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken PMR2 Power Package (Motor-Driven Integrated Type, 14 MPa)

Brand Yuken·Power Units

Available part numbers (12)

PMR2-6-A, PMR2-6-B, PMR2-8-A, PMR2-8-B, PMR2-10-A, PMR2-10-B, PMR2-12-A, PMR2-12-B, PMR2-14-A, PMR2-14-B + 2 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PMR2-6-APMR2 motor-driven power package, 5.8cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 5.8 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-6-BPMR2 motor-driven power package, 5.8cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 5.8 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-8-APMR2 motor-driven power package, 8.0cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 8.0 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-8-BPMR2 motor-driven power package, 8.0cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 8.0 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-10-APMR2 motor-driven power package, 9.4cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 9.4 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-10-BPMR2 motor-driven power package, 9.4cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 9.4 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-12-APMR2 motor-driven power package, 12.2cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 12.2 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-12-BPMR2 motor-driven power package, 12.2cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 12.2 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-14-APMR2 motor-driven power package, 13.7cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 13.7 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-14-BPMR2 motor-driven power package, 13.7cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 13.7 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-17-APMR2 motor-driven power package, 16.6cm3, 1.5 kW x 6P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 16.6 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 1.5 kW x 6P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 36 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
PMR2-17-BPMR2 motor-driven power package, 16.6cm3, 2.2 kW x 4P, 14 MPa | Type: Power Package, Motor-Driven Integrated Type | Pump Displacement: 16.6 cm3/rev | Max Use Pressure: 14 MPa | Relief Setting Range: 3.5-14 MPa (specify as MPa x 10) | Motor: 2.2 kW x 4P, AC200V 50Hz / AC220V 60Hz | Pump Rotation: Clockwise (viewed from motor fan side) | Tank Capacity: 3.4 L | Mass: 51.5 kg (incl. oil, circuit 00 no valve) | Circuit: 00 (no valve) or 01-08 standard circuits (Cat. K-48/49) | Selector Valve: Manual DMG-01 (M) or Solenoid DSG-01 (coil D12/D24/A100/A200); no symbol for circuit 00/08 | Design No.: 40
