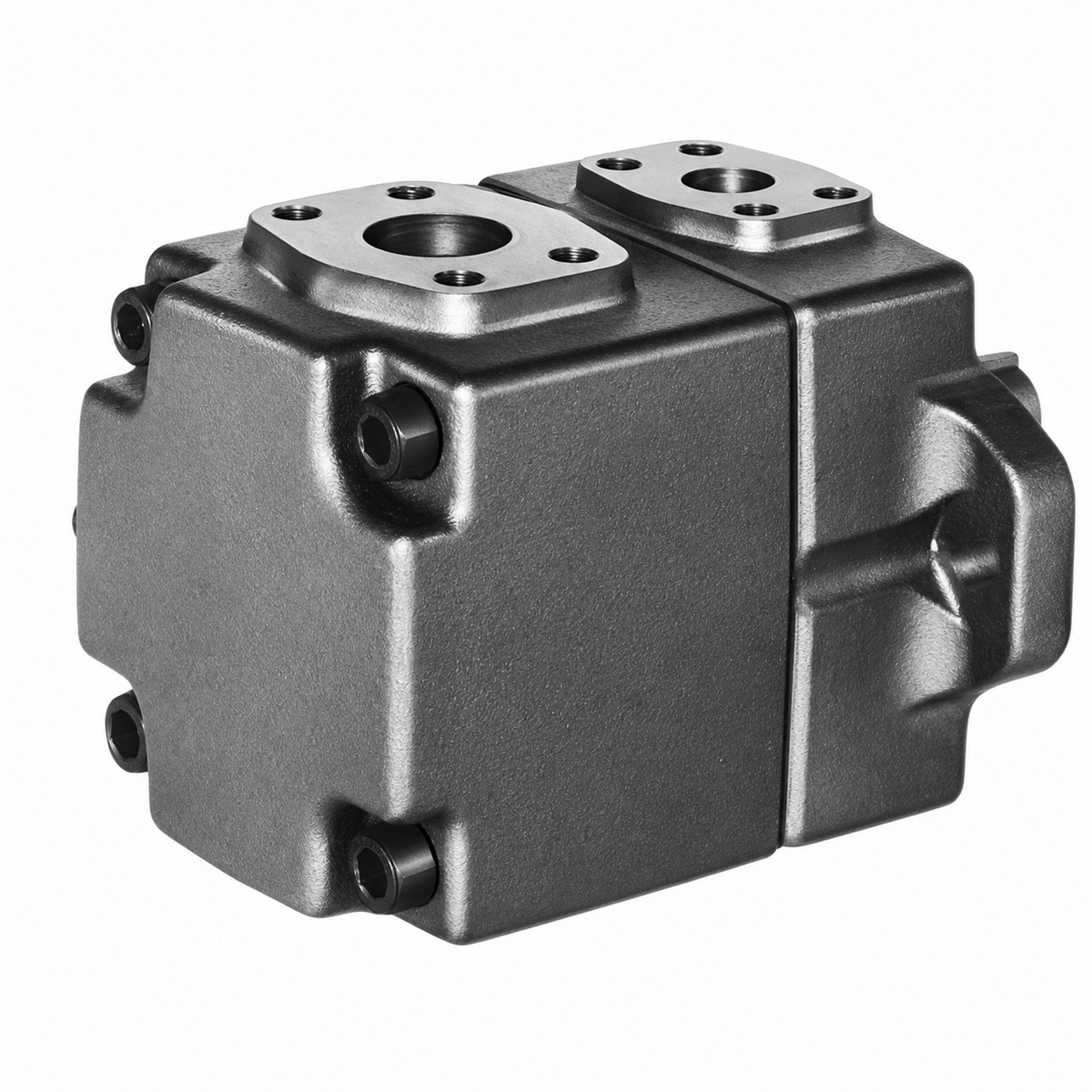

• Yuken PV2R4 Series Single Vane Pump (high-pressure/high-performance, 21 MPa)
1 1

Yuken PV2R4 Series Single Vane Pump (high-pressure/high-performance, 21 MPa)

Yuken PV2R4 Series Single Vane Pump (high-pressure/high-performance, 21 MPa)

PV2R Series Single Vane Pumps.

Key features

  • A high-pressure, high-performance pump developed especially for low-noise applications, usable over a wide range with discharge 5.8 to 237 cm3/rev
  • Cartridge-kit internals for very easy maintenance
  • Max working pressure 21 MPa
  • Foot and flange mounting types
  • Clockwise rotation standard; top discharge/suction ports standard

Specifications

Series PV2R4
Type Single Vane Pump
Max Working Pressure 21 MPa
Rotation R = Clockwise (standard, viewed from shaft end)
Discharge Port A = Top (standard)
Suction Port A = Top (standard)
Design No 30
PV2R4-136-L-RAA-30 PV2R4 single vane pump, 136 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 136 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-136-F-RAA-30 PV2R4 single vane pump, 136 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 136 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-153-L-RAA-30 PV2R4 single vane pump, 153 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 153 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-153-F-RAA-30 PV2R4 single vane pump, 153 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 153 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-184-L-RAA-30 PV2R4 single vane pump, 184 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 184 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-184-F-RAA-30 PV2R4 single vane pump, 184 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 184 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-200-L-RAA-30 PV2R4 single vane pump, 200 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 200 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-200-F-RAA-30 PV2R4 single vane pump, 200 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 200 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-237-L-RAA-30 PV2R4 single vane pump, 237 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 237 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-237-F-RAA-30 PV2R4 single vane pump, 237 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 237 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
Single Vane PumpsYuken
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken PV2R4 Series Single Vane Pump (high-pressure/high-performance, 21 MPa)

Brand Yuken·Single Vane Pumps

Available part numbers (10)

PV2R4-136-L-RAA-30, PV2R4-136-F-RAA-30, PV2R4-153-L-RAA-30, PV2R4-153-F-RAA-30, PV2R4-184-L-RAA-30, PV2R4-184-F-RAA-30, PV2R4-200-L-RAA-30, PV2R4-200-F-RAA-30, PV2R4-237-L-RAA-30, PV2R4-237-F-RAA-30

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PV2R4-136-L-RAA-30PV2R4 single vane pump, 136 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 136 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-136-F-RAA-30PV2R4 single vane pump, 136 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 136 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-153-L-RAA-30PV2R4 single vane pump, 153 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 153 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-153-F-RAA-30PV2R4 single vane pump, 153 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 153 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-184-L-RAA-30PV2R4 single vane pump, 184 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 184 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-184-F-RAA-30PV2R4 single vane pump, 184 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 184 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-200-L-RAA-30PV2R4 single vane pump, 200 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 200 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-200-F-RAA-30PV2R4 single vane pump, 200 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 200 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-237-L-RAA-30PV2R4 single vane pump, 237 cm3/rev, Foot mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 237 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
PV2R4-237-F-RAA-30PV2R4 single vane pump, 237 cm3/rev, Flange mount, 21 MPa | Series: PV2R4 | Type: Single Vane Pump | Theoretical Displacement: 237 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 30 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals)
