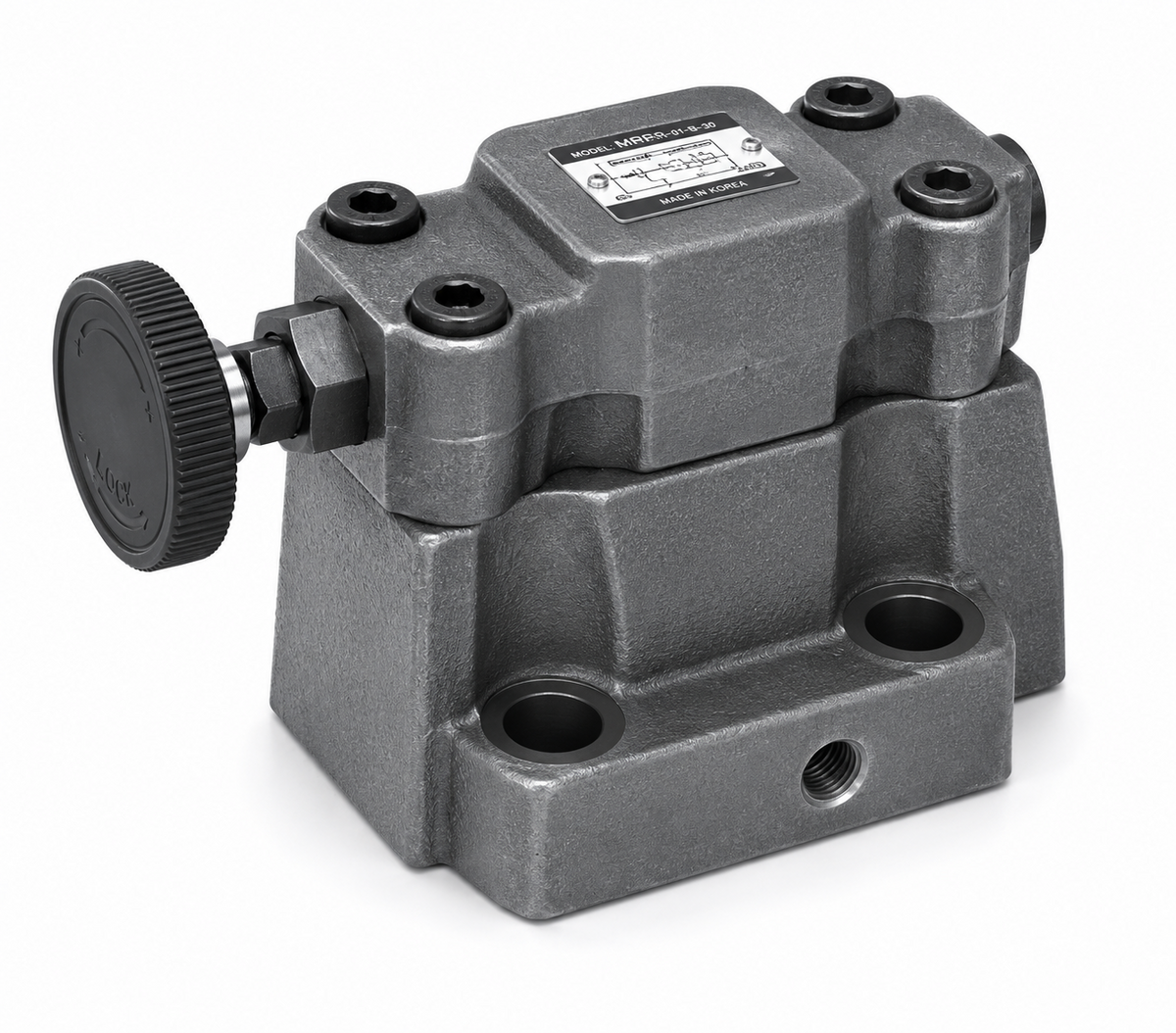

Yuken Relief Valve High Pressure (B3G-03/06)

Yuken Relief Valve High Pressure (B3G-03/06)

Relief Valves (High Pressure Type).

Key features

  • Max. operating pressure: 35 MPa
  • Pressure adjustment range: to 35 MPa
  • Max. flow: 250 L/min (03) / 500 L/min (06)
  • Sub-plate mounting
  • High-vent type (-V) available

Specifications

Type Relief Valve (High Pressure Type)
Mounting Sub-plate
Max. Operating Pressure 35 MPa
Pressure Adjustment Range to 35 MPa
Design No. 10
B3G-03-10 High Pressure Relief Valve B3G-03, sub-plate | Type: Relief Valve (High Pressure Type) | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 250 L/min | Mass: 4.1 kg | Design No.: 10
B3G-03-V-10 High Pressure Relief Valve B3G-03-V, sub-plate, high-vent | Type: Relief Valve (High Pressure Type) | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 250 L/min | Mass: 4.1 kg | Design No.: 10
B3G-06-10 High Pressure Relief Valve B3G-06, sub-plate | Type: Relief Valve (High Pressure Type) | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Mass: 5.1 kg | Design No.: 10
B3G-06-V-10 High Pressure Relief Valve B3G-06-V, sub-plate, high-vent | Type: Relief Valve (High Pressure Type) | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Mass: 5.1 kg | Design No.: 10
Relief ValvesYuken
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken Relief Valve High Pressure (B3G-03/06)

Brand Yuken·Relief Valves

Available part numbers (4)

B3G-03-10, B3G-03-V-10, B3G-06-10, B3G-06-V-10

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
B3G-03-10High Pressure Relief Valve B3G-03, sub-plate | Type: Relief Valve (High Pressure Type) | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 250 L/min | Mass: 4.1 kg | Design No.: 10
B3G-03-V-10High Pressure Relief Valve B3G-03-V, sub-plate, high-vent | Type: Relief Valve (High Pressure Type) | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 250 L/min | Mass: 4.1 kg | Design No.: 10
B3G-06-10High Pressure Relief Valve B3G-06, sub-plate | Type: Relief Valve (High Pressure Type) | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Mass: 5.1 kg | Design No.: 10
B3G-06-V-10High Pressure Relief Valve B3G-06-V, sub-plate, high-vent | Type: Relief Valve (High Pressure Type) | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Mass: 5.1 kg | Design No.: 10
