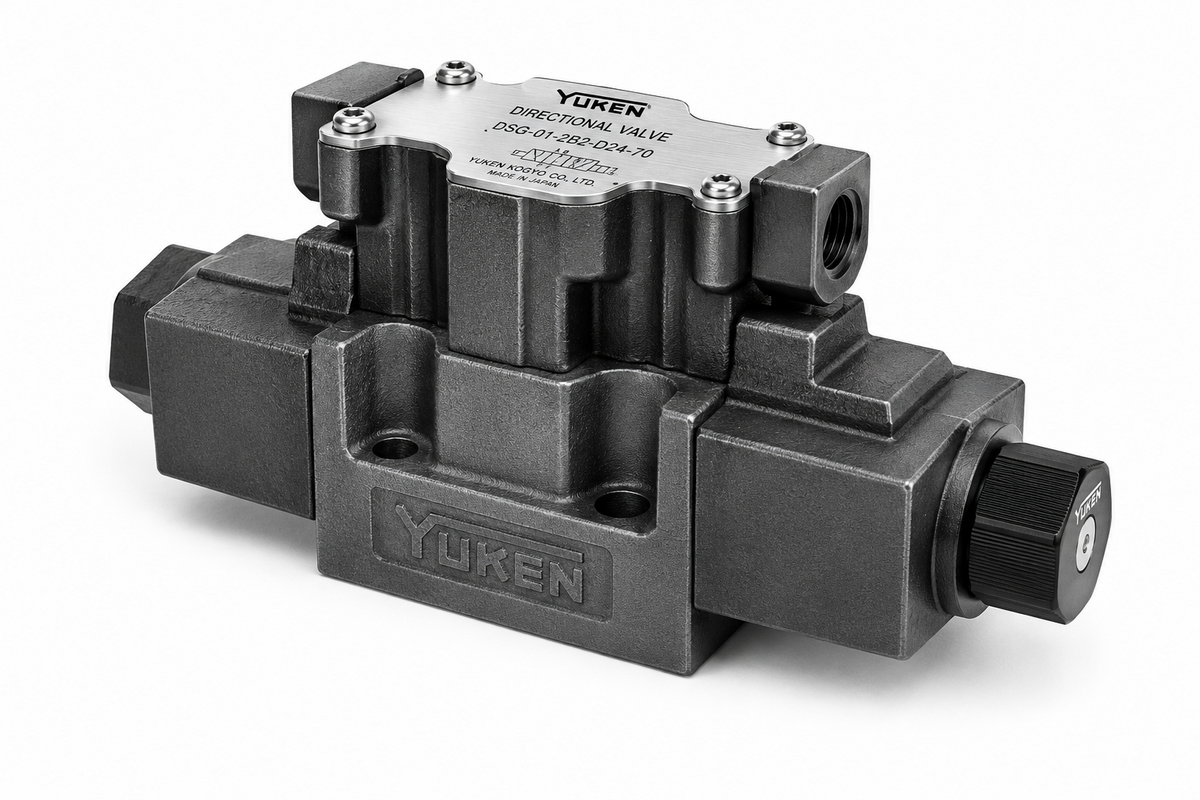

Yuken — S-DSG-03 Shockless Solenoid Operated Directional Valve

Yuken — S-DSG-03 Shockless Solenoid Operated Directional Valve

3/8 Solenoid Operated Directional Valves, DSG-03 Series — Shockless type.

Key features

  • Max. operating pressure 25 MPa, max. flow 120 L/min, tank back pressure 16 MPa, max. switching frequency 120 min-1
  • Subplate mounting

Specifications

Type Shockless (Solenoid Operated)
Valve Size 03 (Rc 3/8)
Max Pressure 25 MPa
Max Flow 120 L/min
Tank Back Pressure 16 MPa
Max Switching Freq 120 min-1
Mounting Subplate (ISO 4401)
Coil DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ)
Wiring Terminal box / DIN connector / N1 lamp DIN (RFQ)
Manual Override Push pin std / button-lock C (RFQ)
Design No. 50
S-DSG-03-3C2-*-50 S-DSG-03 solenoid directional valve, spool 3C2 (3-position, spring centered) | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50
S-DSG-03-3C4-*-50 S-DSG-03 solenoid directional valve, spool 3C4 (3-position, spring centered) | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C4 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50
S-DSG-03-2B2-*-50 S-DSG-03 solenoid directional valve, spool 2B2 (2-position, spring offset) | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50
Solenoid OperatedYuken
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken — S-DSG-03 Shockless Solenoid Operated Directional Valve

Brand Yuken·Solenoid Operated

Available part numbers (3)

S-DSG-03-3C2-*-50, S-DSG-03-3C4-*-50, S-DSG-03-2B2-*-50

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S-DSG-03-3C2-*-50S-DSG-03 solenoid directional valve, spool 3C2 (3-position, spring centered) | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50
S-DSG-03-3C4-*-50S-DSG-03 solenoid directional valve, spool 3C4 (3-position, spring centered) | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C4 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50
S-DSG-03-2B2-*-50S-DSG-03 solenoid directional valve, spool 2B2 (2-position, spring offset) | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50
