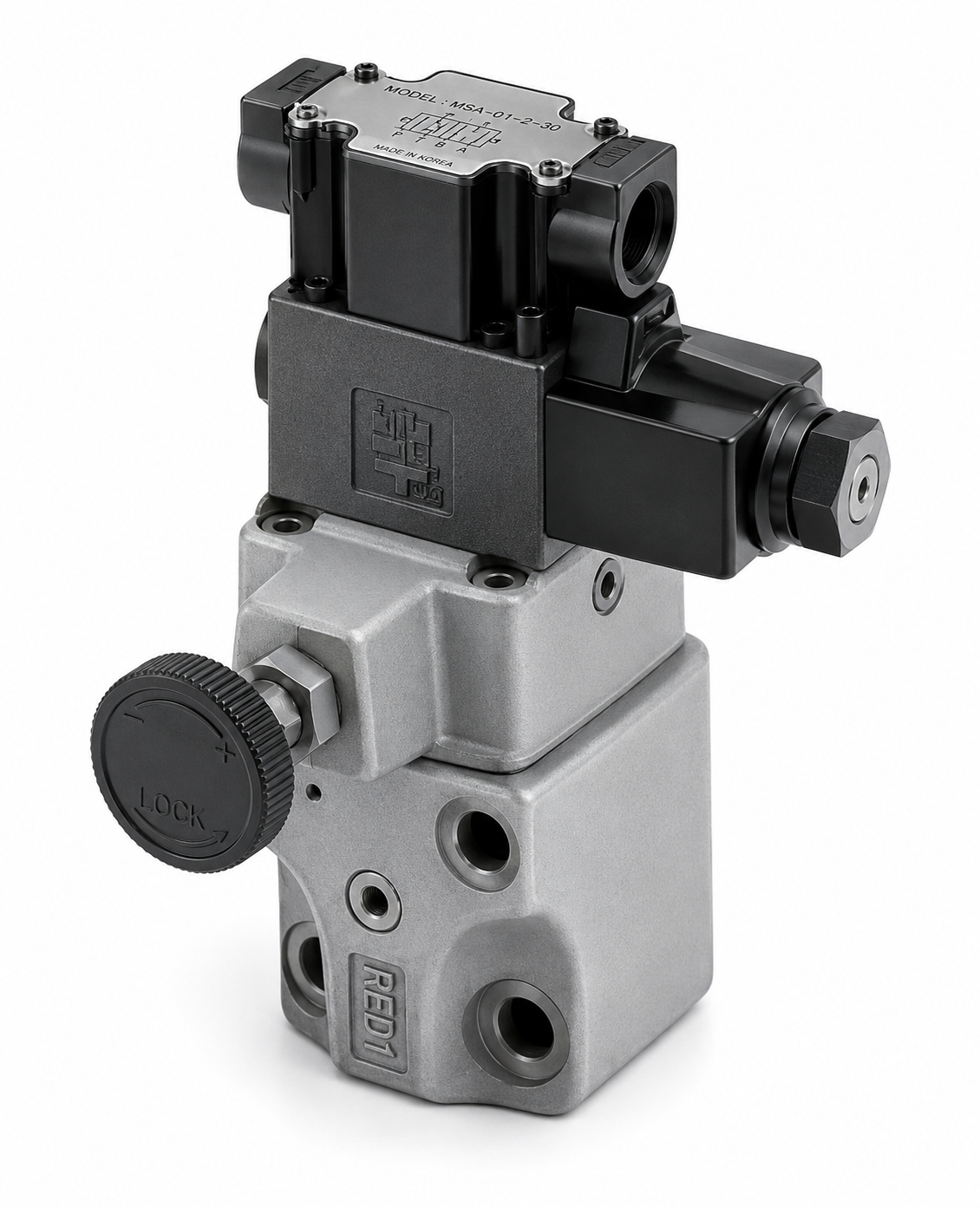

• Yuken Solenoid Controlled Relief Valve (BST-10)
1 1

Yuken Solenoid Controlled Relief Valve (BST-10)

Yuken Solenoid Controlled Relief Valve (BST-10)

Solenoid Controlled Relief Valves.

Key features

  • Max. operating pressure: 25 MPa
  • Pressure adjustment range: to 25 MPa
  • Max. flow: 400 L/min
  • Threaded type
  • Vent forms: 2B3A / 2B3B / 2B2B / 2B2 / 3C2 / 3C3
  • Coil (specify): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt)

Specifications

Type Solenoid Controlled Relief Valve
Mounting Threaded
Valve Size 10
Max. Operating Pressure 25 MPa
Pressure Adjustment Range to 25 MPa
Max. Flow 400 L/min
Coil (RFQ) AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt)
Wiring (RFQ) Terminal box type (std) / DIN connector type (-N, opt)
Design No. 48
BST-10-2B3A-48 Solenoid Controlled Relief Valve BST-10-2B3A, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B3A | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48
BST-10-2B3B-48 Solenoid Controlled Relief Valve BST-10-2B3B, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B3B | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48
BST-10-2B2B-48 Solenoid Controlled Relief Valve BST-10-2B2B, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B2B | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-2B2-48 Solenoid Controlled Relief Valve BST-10-2B2, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B2 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-3C2-48 Solenoid Controlled Relief Valve BST-10-3C2, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 3C2 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-3C3-48 Solenoid Controlled Relief Valve BST-10-3C3, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 3C3 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-V-2B3A-48 Solenoid Controlled Relief Valve BST-10-V-2B3A, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B3A | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48
BST-10-V-2B3B-48 Solenoid Controlled Relief Valve BST-10-V-2B3B, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B3B | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48
BST-10-V-2B2B-48 Solenoid Controlled Relief Valve BST-10-V-2B2B, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B2B | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-V-2B2-48 Solenoid Controlled Relief Valve BST-10-V-2B2, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B2 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-V-3C2-48 Solenoid Controlled Relief Valve BST-10-V-3C2, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 3C2 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-V-3C3-48 Solenoid Controlled Relief Valve BST-10-V-3C3, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 3C3 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
Solenoid Controlled Relief ValvesYuken
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken Solenoid Controlled Relief Valve (BST-10)

Brand Yuken·Solenoid Controlled Relief Valves

Available part numbers (12)

BST-10-2B3A-48, BST-10-2B3B-48, BST-10-2B2B-48, BST-10-2B2-48, BST-10-3C2-48, BST-10-3C3-48, BST-10-V-2B3A-48, BST-10-V-2B3B-48, BST-10-V-2B2B-48, BST-10-V-2B2-48 + 2 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BST-10-2B3A-48Solenoid Controlled Relief Valve BST-10-2B3A, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B3A | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48
BST-10-2B3B-48Solenoid Controlled Relief Valve BST-10-2B3B, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B3B | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48
BST-10-2B2B-48Solenoid Controlled Relief Valve BST-10-2B2B, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B2B | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-2B2-48Solenoid Controlled Relief Valve BST-10-2B2, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B2 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-3C2-48Solenoid Controlled Relief Valve BST-10-3C2, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 3C2 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-3C3-48Solenoid Controlled Relief Valve BST-10-3C3, Threaded | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 3C3 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-V-2B3A-48Solenoid Controlled Relief Valve BST-10-V-2B3A, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B3A | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48
BST-10-V-2B3B-48Solenoid Controlled Relief Valve BST-10-V-2B3B, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B3B | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48
BST-10-V-2B2B-48Solenoid Controlled Relief Valve BST-10-V-2B2B, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B2B | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-V-2B2-48Solenoid Controlled Relief Valve BST-10-V-2B2, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 2B2 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-V-3C2-48Solenoid Controlled Relief Valve BST-10-V-3C2, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 3C2 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
BST-10-V-3C3-48Solenoid Controlled Relief Valve BST-10-V-3C3, Threaded, high-vent | Type: Solenoid Controlled Relief Valve | Mounting: Threaded | Valve Size: 10 | Vent Form: 3C3 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48
