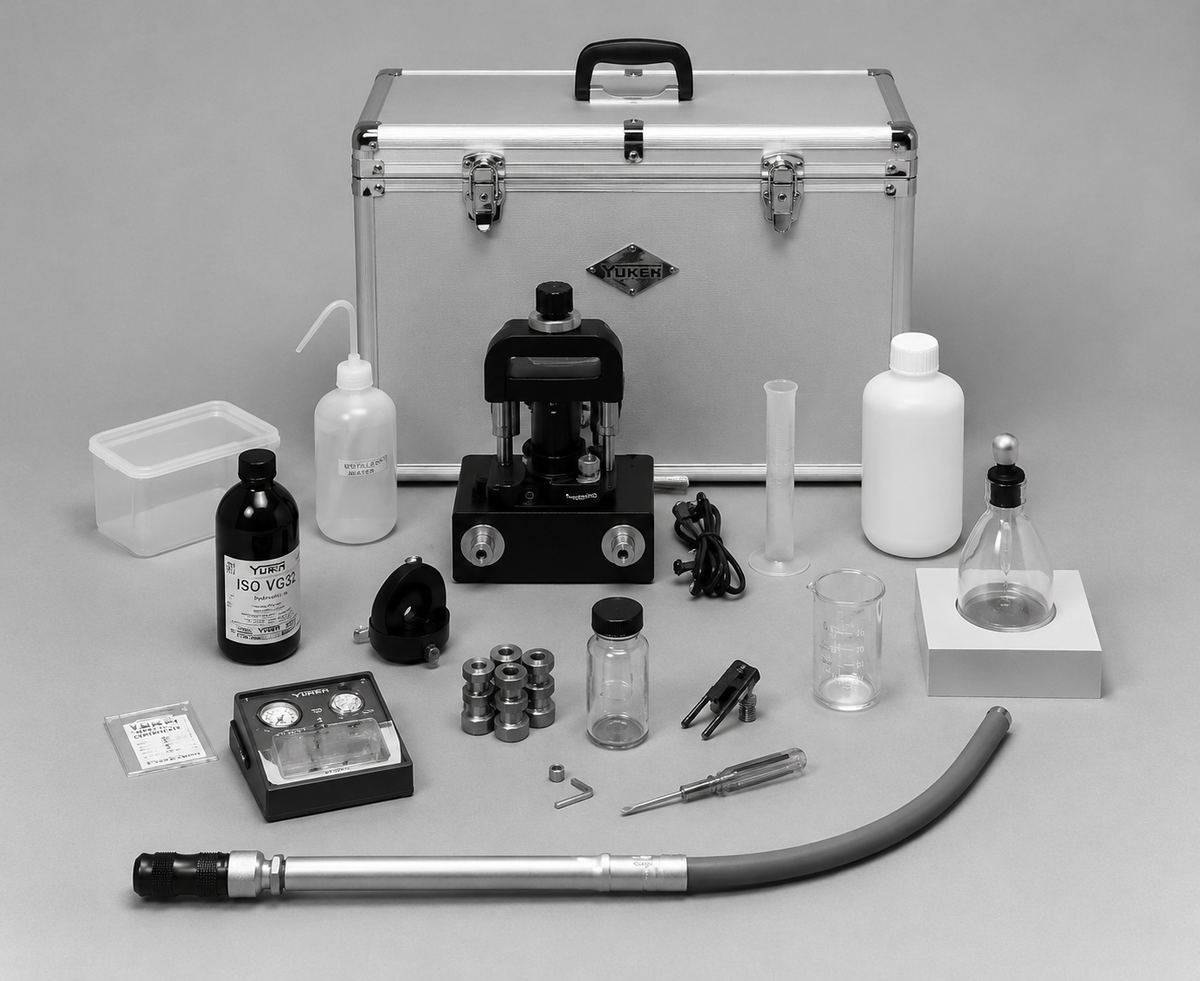

Yuken YC-100 Contami-Kit (Hydraulic Oil Contamination Measuring Device)

Contami-Kit (Microscopic Inspection Device) YC-100.

Key features

A portable measuring device that determines the contamination level of hydraulic fluid by comparison with standard contamination plates; the level can be obtained as a NAS1638 class (reference value)
Reliable and simple to handle
Usable anywhere (portable, AC/DC switchable power)
No skill is required since it compares against contamination plates
Measurement takes about 10 minutes
Records can be kept by photograph using a standard SLR camera

YC-100		YC-100 Contami-Kit - Main device \| Role: Main device \| Type: Portable hydraulic-oil contamination measuring device (Contami-Kit / microscopic inspection) \| Method: comparison with standard contamination plates \| Result: NAS1638 class (reference) \| Power: AC/DC switchable (portable) \| Measurement time: approx. 10 min \| Recording: photograph via standard SLR camera
M-KYC-100-F-20		YC-100 Contami-Kit - Option: water/glycol fluid filter set \| Role: Option: water/glycol fluid filter set \| For measuring contamination of water/glycol fluids (use clean tap water, not cleaning solution; other parts: use standard items) \| Contents: membrane filter x50 (dia.25mm, 3um), slide glass x50, single-side adhesive paper x50
KYC-100-L-20		YC-100 Contami-Kit - Option: 4x objective lens \| Role: Option: 4x objective lens \| 40x total magnification, wider microscope field; suited to samples with relatively large, widely distributed contaminant particles \| Contents: 4x objective lens x2
KYC-100-C-20		YC-100 Contami-Kit - Part: camera set adapter \| Role: Part: camera set adapter
KYC-100-P-20		YC-100 Contami-Kit - Part: vacuum pump kit \| Role: Part: vacuum pump kit \| With vacuum hose (0.4 m attached)
KYC-100-R1-20		YC-100 Contami-Kit - Part: filter bottle \| Role: Part: filter bottle
KYC-100-R2-20		YC-100 Contami-Kit - Part: glass bottle with rubber stopper \| Role: Part: glass bottle with rubber stopper
KYC-100-R3-21		YC-100 Contami-Kit - Part: funnel \| Role: Part: funnel
KYC-100-R4-21		YC-100 Contami-Kit - Part: clamp \| Role: Part: clamp
KYC-100-R5-20		YC-100 Contami-Kit - Part: stand \| Role: Part: stand
KYC-100-D-20		YC-100 Contami-Kit - Part: spare bulb \| Role: Part: spare bulb \| 5V / 0.47A (gas-filled)
KYC-100-F-20		YC-100 Contami-Kit - Part: filter set \| Role: Part: filter set \| Membrane filter x50, slide glass x50, single-side adhesive paper x50
KYC-100-N-20		YC-100 Contami-Kit - Part: cleaning solution \| Role: Part: cleaning solution \| 500 ml x6 bottles \| Flammable substance: cannot be transported by air or ship; purchase solvent locally

AccessoriesYuken

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken YC-100 Contami-Kit (Hydraulic Oil Contamination Measuring Device)

Brand Yuken·Accessories

Available part numbers (13)

YC-100, M-KYC-100-F-20, KYC-100-L-20, KYC-100-C-20, KYC-100-P-20, KYC-100-R1-20, KYC-100-R2-20, KYC-100-R3-21, KYC-100-R4-21, KYC-100-R5-20 + 3 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	YC-100	YC-100 Contami-Kit - Main device \| Role: Main device \| Type: Portable hydraulic-oil contamination measuring device (Contami-Kit / microscopic inspection) \| Method: comparison with standard contamination plates \| Result: NAS1638 class (reference) \| Power: AC/DC switchable (portable) \| Measurement time: approx. 10 min \| Recording: photograph via standard SLR camera
	M-KYC-100-F-20	YC-100 Contami-Kit - Option: water/glycol fluid filter set \| Role: Option: water/glycol fluid filter set \| For measuring contamination of water/glycol fluids (use clean tap water, not cleaning solution; other parts: use standard items) \| Contents: membrane filter x50 (dia.25mm, 3um), slide glass x50, single-side adhesive paper x50
	KYC-100-L-20	YC-100 Contami-Kit - Option: 4x objective lens \| Role: Option: 4x objective lens \| 40x total magnification, wider microscope field; suited to samples with relatively large, widely distributed contaminant particles \| Contents: 4x objective lens x2
	KYC-100-C-20	YC-100 Contami-Kit - Part: camera set adapter \| Role: Part: camera set adapter
	KYC-100-P-20	YC-100 Contami-Kit - Part: vacuum pump kit \| Role: Part: vacuum pump kit \| With vacuum hose (0.4 m attached)
	KYC-100-R1-20	YC-100 Contami-Kit - Part: filter bottle \| Role: Part: filter bottle
	KYC-100-R2-20	YC-100 Contami-Kit - Part: glass bottle with rubber stopper \| Role: Part: glass bottle with rubber stopper
	KYC-100-R3-21	YC-100 Contami-Kit - Part: funnel \| Role: Part: funnel
	KYC-100-R4-21	YC-100 Contami-Kit - Part: clamp \| Role: Part: clamp
	KYC-100-R5-20	YC-100 Contami-Kit - Part: stand \| Role: Part: stand
	KYC-100-D-20	YC-100 Contami-Kit - Part: spare bulb \| Role: Part: spare bulb \| 5V / 0.47A (gas-filled)
	KYC-100-F-20	YC-100 Contami-Kit - Part: filter set \| Role: Part: filter set \| Membrane filter x50, slide glass x50, single-side adhesive paper x50
	KYC-100-N-20	YC-100 Contami-Kit - Part: cleaning solution \| Role: Part: cleaning solution \| 500 ml x6 bottles \| Flammable substance: cannot be transported by air or ship; purchase solvent locally
