Yuken YP Pack Low-Noise Compact Standard Hydraulic Power Unit (YP10/16/22/37, 0.75-5.5 kW, 10-30 L)

Yuken YP Pack Low-Noise Compact Standard Hydraulic Power Unit (YP10/16/22/37, 0.75-5.5 kW, 10-30 L)

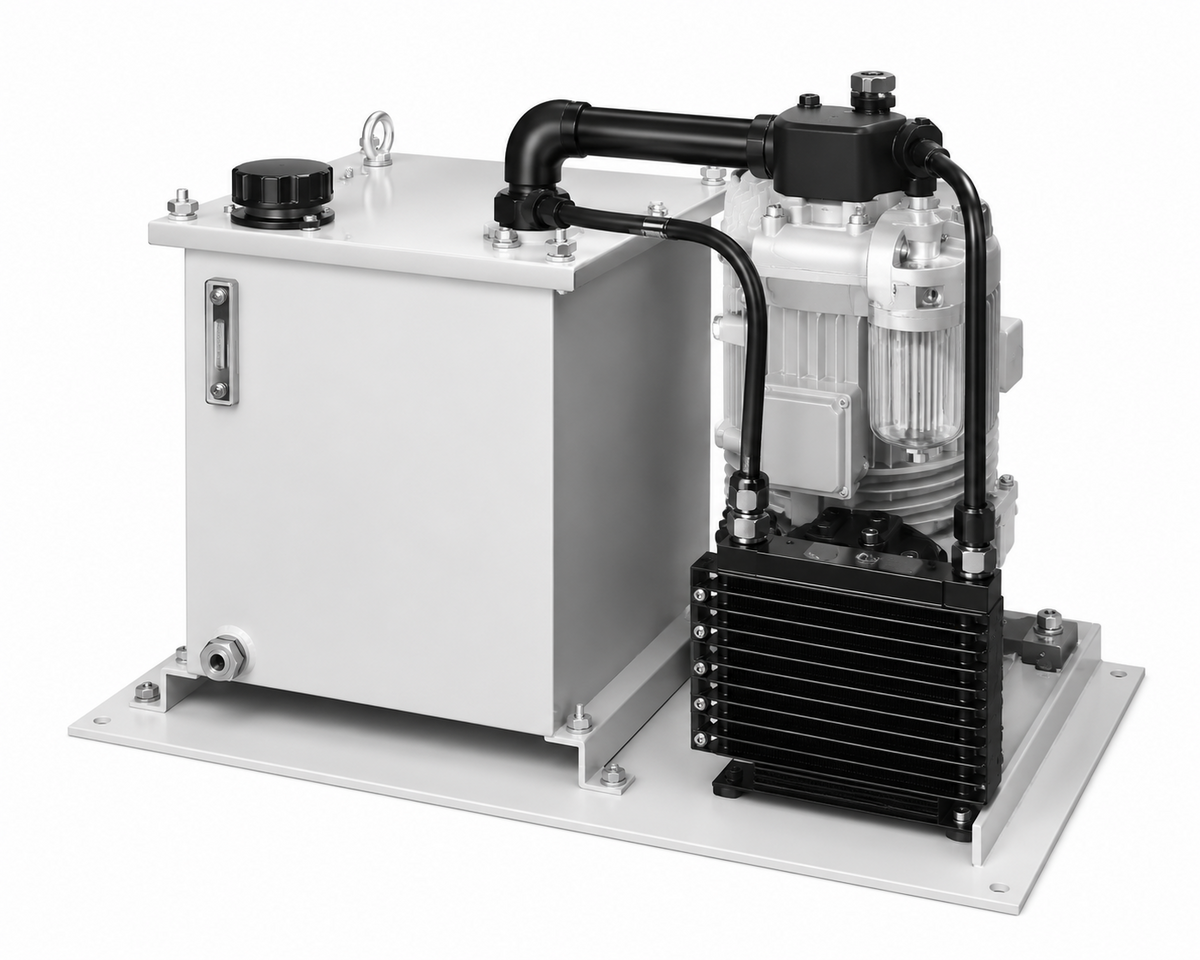

Low-Noise Compact Type Standard Hydraulic Power Unit YP Pack.

Key features

  • A low-noise, compact hydraulic power unit powered by a high-performance pump; its compact design is unrestricted by installation location, achieving an exceptionally quiet operating noise of 55 dB(A)
  • Low-noise pump and drain cooler are mounted, and vibration-conscious component layout realizes low noise and low vibration
  • The vertically mounted pump and small tank give a compact design
  • The standard drain cooler and the pump's heat-radiating fins suppress oil-temperature rise, eliminating thermal distortion of the machine
  • Nine standard YP Pack models are offered, with seven option types including control circuits combining modular valves and solenoid valves
  • Motor: 50 Hz AC 200 V / 60 Hz AC 200 V or 220 V

Specifications

Type Low-Noise Compact Standard Hydraulic Power Unit
Power Supply 50Hz AC200V / 60Hz AC200V-220V
Noise 55 dB(A)
Design No. 22
YP10-B-1-0.75-22 YP Pack PM10 pump, B-range (1.2~7 MPa), 10L tank, 0.75 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM10 (10.0 cm3/rev) | Max Use Pressure: 7 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 10 L | Motor: 0.75 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 58 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP10-B-1-1.5-22 YP Pack PM10 pump, B-range (1.2~7 MPa), 10L tank, 1.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM10 (10.0 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 10 L | Motor: 1.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 68 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP10-C-1-1.5-22 YP Pack PM10 pump, C-range (2~16 MPa), 10L tank, 1.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM10 (10.0 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 10 L | Motor: 1.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 68 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-B-1-1.5-22 YP Pack PM16 pump, B-range (1.2~7 MPa), 10L tank, 1.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 10 L | Motor: 1.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 68 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-C-1-1.5-22 YP Pack PM16 pump, C-range (2~16 MPa), 10L tank, 1.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 10 L | Motor: 1.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 68 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-B-1-2.2-22 YP Pack PM16 pump, B-range (1.2~7 MPa), 10L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 10 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-C-1-2.2-22 YP Pack PM16 pump, C-range (2~16 MPa), 10L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 10 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-B-2-2.2-22 YP Pack PM16 pump, B-range (1.2~7 MPa), 20L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 20 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-C-2-2.2-22 YP Pack PM16 pump, C-range (2~16 MPa), 20L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 20 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP22-B-2-2.2-22 YP Pack PM22 pump, B-range (1.2~7 MPa), 20L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM22 (22.2 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 20 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP22-C-2-2.2-22 YP Pack PM22 pump, C-range (2~16 MPa), 20L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM22 (22.2 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 20 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP22-B-3-3.7-22 YP Pack PM22 pump, B-range (1.2~7 MPa), 30L tank, 3.7 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM22 (22.2 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 30 L | Motor: 3.7 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 105 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP22-C-3-3.7-22 YP Pack PM22 pump, C-range (2~16 MPa), 30L tank, 3.7 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM22 (22.2 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 30 L | Motor: 3.7 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 105 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP37-B-3-3.7-22 YP Pack PM37 pump, B-range (1.2~7 MPa), 30L tank, 3.7 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM37 (36.9 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 30 L | Motor: 3.7 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 145 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP37-C-3-3.7-22 YP Pack PM37 pump, C-range (2~16 MPa), 30L tank, 3.7 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM37 (36.9 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 30 L | Motor: 3.7 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 145 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP37-B-3-5.5-22 YP Pack PM37 pump, B-range (1.2~7 MPa), 30L tank, 5.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM37 (36.9 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 30 L | Motor: 5.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 145 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP37-C-3-5.5-22 YP Pack PM37 pump, C-range (2~16 MPa), 30L tank, 5.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM37 (36.9 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 30 L | Motor: 5.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 145 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
Power UnitsYuken
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken YP Pack Low-Noise Compact Standard Hydraulic Power Unit (YP10/16/22/37, 0.75-5.5 kW, 10-30 L)

Brand Yuken·Power Units

Available part numbers (17)

YP10-B-1-0.75-22, YP10-B-1-1.5-22, YP10-C-1-1.5-22, YP16-B-1-1.5-22, YP16-C-1-1.5-22, YP16-B-1-2.2-22, YP16-C-1-2.2-22, YP16-B-2-2.2-22, YP16-C-2-2.2-22, YP22-B-2-2.2-22 + 7 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YP10-B-1-0.75-22YP Pack PM10 pump, B-range (1.2~7 MPa), 10L tank, 0.75 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM10 (10.0 cm3/rev) | Max Use Pressure: 7 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 10 L | Motor: 0.75 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 58 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP10-B-1-1.5-22YP Pack PM10 pump, B-range (1.2~7 MPa), 10L tank, 1.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM10 (10.0 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 10 L | Motor: 1.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 68 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP10-C-1-1.5-22YP Pack PM10 pump, C-range (2~16 MPa), 10L tank, 1.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM10 (10.0 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 10 L | Motor: 1.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 68 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-B-1-1.5-22YP Pack PM16 pump, B-range (1.2~7 MPa), 10L tank, 1.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 10 L | Motor: 1.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 68 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-C-1-1.5-22YP Pack PM16 pump, C-range (2~16 MPa), 10L tank, 1.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 10 L | Motor: 1.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 68 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-B-1-2.2-22YP Pack PM16 pump, B-range (1.2~7 MPa), 10L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 10 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-C-1-2.2-22YP Pack PM16 pump, C-range (2~16 MPa), 10L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 10 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-B-2-2.2-22YP Pack PM16 pump, B-range (1.2~7 MPa), 20L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 20 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP16-C-2-2.2-22YP Pack PM16 pump, C-range (2~16 MPa), 20L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM16 (15.8 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 20 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP22-B-2-2.2-22YP Pack PM22 pump, B-range (1.2~7 MPa), 20L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM22 (22.2 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 20 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP22-C-2-2.2-22YP Pack PM22 pump, C-range (2~16 MPa), 20L tank, 2.2 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM22 (22.2 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 20 L | Motor: 2.2 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 78 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP22-B-3-3.7-22YP Pack PM22 pump, B-range (1.2~7 MPa), 30L tank, 3.7 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM22 (22.2 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 30 L | Motor: 3.7 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 105 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP22-C-3-3.7-22YP Pack PM22 pump, C-range (2~16 MPa), 30L tank, 3.7 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM22 (22.2 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 30 L | Motor: 3.7 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 105 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP37-B-3-3.7-22YP Pack PM37 pump, B-range (1.2~7 MPa), 30L tank, 3.7 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM37 (36.9 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 30 L | Motor: 3.7 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 145 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP37-C-3-3.7-22YP Pack PM37 pump, C-range (2~16 MPa), 30L tank, 3.7 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM37 (36.9 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 30 L | Motor: 3.7 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 145 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP37-B-3-5.5-22YP Pack PM37 pump, B-range (1.2~7 MPa), 30L tank, 5.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM37 (36.9 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 1.2~7 MPa (B-range) | Tank Capacity: 30 L | Motor: 5.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 145 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
YP37-C-3-5.5-22YP Pack PM37 pump, C-range (2~16 MPa), 30L tank, 5.5 kW | Type: Low-Noise Compact Standard Hydraulic Power Unit | Pump: PM37 (36.9 cm3/rev) | Max Use Pressure: 16 MPa | Pressure Adjustment Range: 2~16 MPa (C-range) | Tank Capacity: 30 L | Motor: 5.5 kW x 4P | Power Supply: 50Hz AC200V / 60Hz AC200V-220V | Mass: 145 kg (excl. hydraulic oil) | Noise: 55 dB(A) | Design No.: 22
