Photoelectric
Autonics

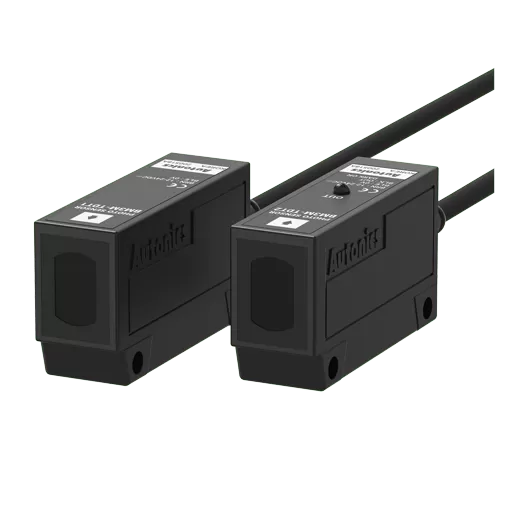

[AUTONICS] BM Series General Photoelectric Sensors
Family ID: AUTONICS-BM-SERIES
General-purpose photoelectric sensors with through-beam, retroreflective, and diffuse reflective types. Compact lightweight body, easy screw mounting. NPN open collector output only. Built-in reverse power protection and output short overcurrent protection.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BM3M-TDT | — | AUTONICS | Photoelectric sensor | BM Series | Through-beam | 3 m | NPN open collector | 12-24 VDC | Cable type | - | infrared 940 nm | ||
| AUTONICS-BM1M-MDT | — | AUTONICS | Photoelectric sensor | BM Series | Retroreflective | 1 m | NPN open collector | 12-24 VDC | Cable type | - | infrared 940 nm | ||
| AUTONICS-BM200-DDT | — | AUTONICS | Photoelectric sensor | BM Series | Diffuse reflective | 200 mm | NPN open collector | 12-24 VDC | Cable type | - | sensitivity adjuster |
