![[OMRON] — E3Z IO-Link Diffuse-reflective Photoelectric Sensor (1m + Narrow 90mm, PNP, COM2/COM3)](https://img.prosourcemro.com/2026/05/001-328-1024x683.png)
Photoelectric
Omron

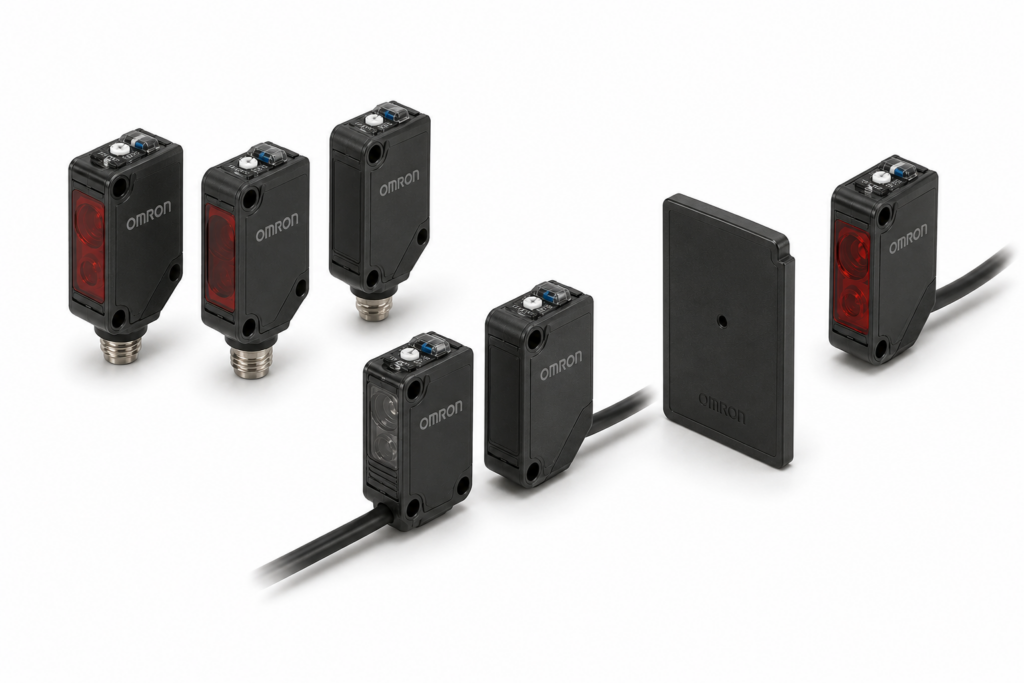

[OMRON] — E3Z IO-Link Diffuse-reflective Photoelectric Sensor (1m + Narrow 90mm, PNP, COM2/COM3)
Family ID: OMRON-E3Z-IL-DIFFUSE
OMRON E3Z IO-Link Series diffuse-reflective photoelectric sensors. PNP output only. IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3). Standard diffuse (E3Z-D82): 1 m, infrared. Narrow beam diffuse (E3Z-L81): 90 mm, red light. Connection: pre-wired 2 m, M12 Smartclick 0.3 m, or M8 connector. IODD file available from OMRON sales representative.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E3Z-D82-IL2 2M | IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: Pre-wired 2 m | ||
| E3Z-D82-M1TJ-IL2 0.3M | IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) M12 0.3m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | ||
| E3Z-D87-IL2 | IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) M8 | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | ||
| E3Z-D82-IL3 2M | IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: Pre-wired 2 m | ||
| E3Z-D82-M1TJ-IL3 0.3M | IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) M12 0.3m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | ||
| E3Z-D87-IL3 | IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) M8 | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | ||
| E3Z-L81-IL2 2M | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: Pre-wired 2 m | ||
| E3Z-L81-M1TJ-IL2 0.3M | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) M12 0.3m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | ||
| E3Z-L86-IL2 | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) M8 | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | ||
| E3Z-L81-IL3 2M | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: Pre-wired 2 m | ||
| E3Z-L81-M1TJ-IL3 0.3M | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) M12 0.3m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | ||
| E3Z-L86-IL3 | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) M8 | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) |
