Area Sensor
Autonics

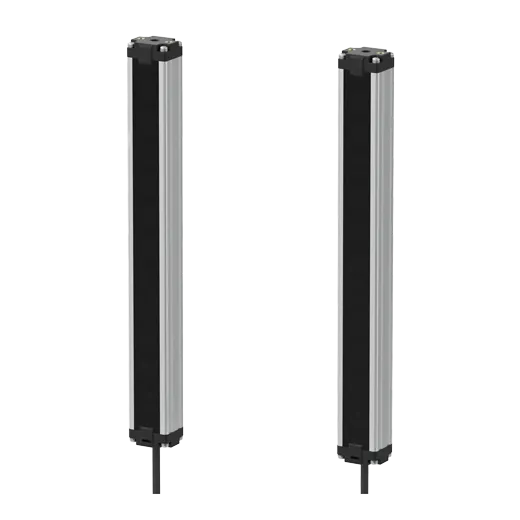

[AUTONICS] BW Series Single-Beam Area Sensors
Family ID: AUTONICS-BW-SERIES
Single-beam (parallel) area sensors with multiple optical axes (8 to 40 axes). Standard area detection for general-purpose use. Adjustable mounting brackets. NPN/PNP output. IP54 rated.
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BW20-08 | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 8 axes / 140 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-08P | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 8 axes / 140 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-12 | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 12 axes / 220 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-12P | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 12 axes / 220 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-16 | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 16 axes / 300 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-16P | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 16 axes / 300 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-20 | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 20 axes / 380 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-20P | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 20 axes / 380 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-24 | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 24 axes / 460 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-24P | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 24 axes / 460 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-32 | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 32 axes / 620 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-32P | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 32 axes / 620 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-40 | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 40 axes / 780 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose | ||
| AUTONICS-BW20-40P | — | AUTONICS | Area sensor | BW Series | Single-beam through-beam | 40 axes / 780 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | parallel beam general purpose |
