![[AUTONICS] BWPK Series Slim Plastic Single-Beam Picking Sensors](https://prosourcemro.com/wp-content/uploads/2026/04/001-1262.png)
Area Sensor
Autonics

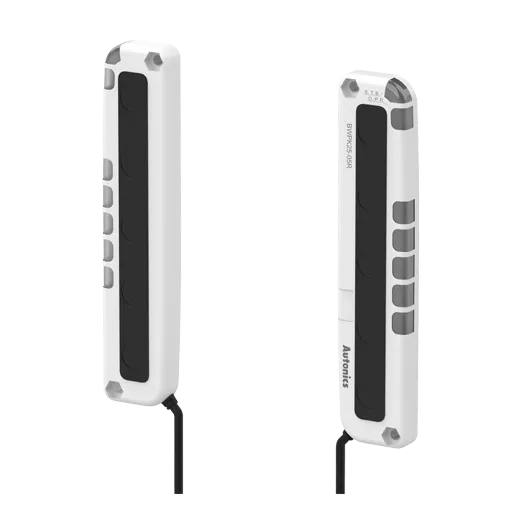

[AUTONICS] BWPK Series Slim Plastic Single-Beam Picking Sensors
Family ID: AUTONICS-BWPK-SERIES
Slim plastic picking sensors for warehousing/pick-to-light applications. W 30 x H 140 x D 9.9 mm flat compact body. 5 optical axes, 25 mm pitch. Sensing distance long/short selectable. IP40.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BWPK25-05 | — | AUTONICS | Area sensor | BWPK Series | Single-beam through-beam picking | 5 axes / 100 mm | NPN open collector | 12-24 VDC | Cable type | IP40 | for picking systems | ||
| AUTONICS-BWPK25-05P | — | AUTONICS | Area sensor | BWPK Series | Single-beam through-beam picking | 5 axes / 100 mm | PNP open collector | 12-24 VDC | Cable type | IP40 | for picking systems |
