Area Sensor
Autonics

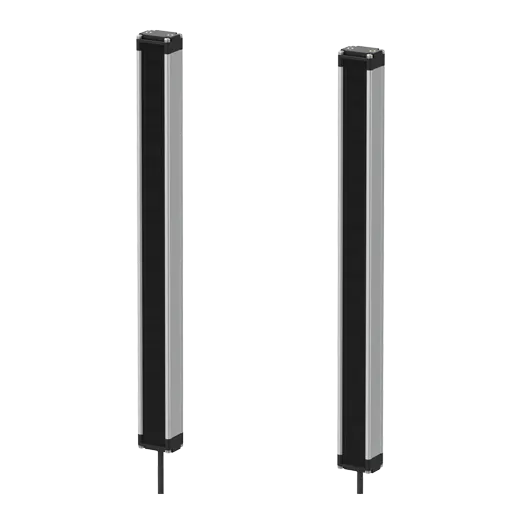

[AUTONICS] BWC Series Cross-Beam Area Sensors
Family ID: AUTONICS-BWC-SERIES
Cross-beam (X-pattern) area sensors with multiple optical axes. Increases detection density to prevent missed detection of small targets. NPN/PNP output. IP54 rated.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BWC20-08 | — | AUTONICS | Area sensor | BWC Series | Cross-beam through-beam | 8 axes / 140 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | cross-beam high density | ||
| AUTONICS-BWC20-08P | — | AUTONICS | Area sensor | BWC Series | Cross-beam through-beam | 8 axes / 140 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | cross-beam high density | ||
| AUTONICS-BWC20-12 | — | AUTONICS | Area sensor | BWC Series | Cross-beam through-beam | 12 axes / 220 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | cross-beam high density | ||
| AUTONICS-BWC20-12P | — | AUTONICS | Area sensor | BWC Series | Cross-beam through-beam | 12 axes / 220 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | cross-beam high density | ||
| AUTONICS-BWC20-16 | — | AUTONICS | Area sensor | BWC Series | Cross-beam through-beam | 16 axes / 300 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | cross-beam high density | ||
| AUTONICS-BWC20-16P | — | AUTONICS | Area sensor | BWC Series | Cross-beam through-beam | 16 axes / 300 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | cross-beam high density | ||
| AUTONICS-BWC20-20 | — | AUTONICS | Area sensor | BWC Series | Cross-beam through-beam | 20 axes / 380 mm | NPN open collector | 12-24 VDC | Cable type | IP54 | cross-beam high density | ||
| AUTONICS-BWC20-20P | — | AUTONICS | Area sensor | BWC Series | Cross-beam through-beam | 20 axes / 380 mm | PNP open collector | 12-24 VDC | Cable type | IP54 | cross-beam high density |
