![[AUTONICS] PR Series Cylindrical Inductive Proximity Sensors](https://prosourcemro.com/wp-content/uploads/2026/04/001-1265.png)
Proximity
Autonics

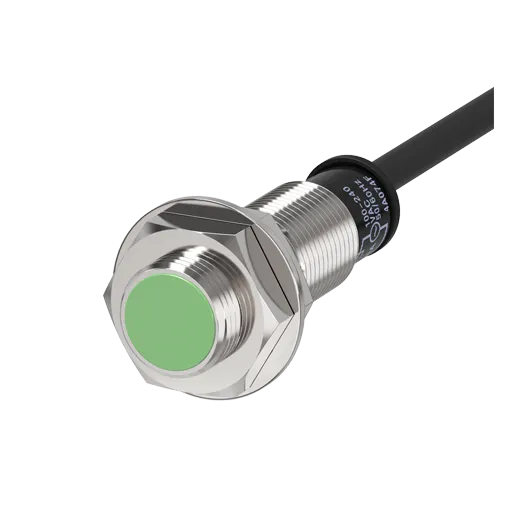

[AUTONICS] PR Series Cylindrical Inductive Proximity Sensors
Family ID: AUTONICS-PR-SERIES
M8/M12/M18/M30 cylindrical inductive proximity sensors with standard sensing distance. DC 3-wire (NPN/PNP), DC 2-wire, and AC 2-wire variants. Cable and M12 connector type. IP67 rated. Operation indicator LED.
41 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PR8-1.5DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M8, 1.5 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | standard flush type | ||
| AUTONICS-PR8-1.5DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M8, 1.5 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | standard flush type | ||
| AUTONICS-PRCM8-1.5DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M8, 1.5 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | standard flush type | ||
| AUTONICS-PRCM8-1.5DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M8, 1.5 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | standard flush type | ||
| AUTONICS-PR12-2DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M12, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | standard flush type | ||
| AUTONICS-PR12-2DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M12, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | standard flush type | ||
| AUTONICS-PRCM12-2DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M12, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | standard flush type | ||
| AUTONICS-PRCM12-2DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M12, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | standard flush type | ||
| AUTONICS-PR18-5DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M18, 5 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | standard flush type | ||
| AUTONICS-PR18-5DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M18, 5 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | standard flush type | ||
| AUTONICS-PRCM18-5DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M18, 5 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | standard flush type | ||
| AUTONICS-PRCM18-5DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M18, 5 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | standard flush type | ||
| AUTONICS-PR30-10DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M30, 10 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | standard flush type | ||
| AUTONICS-PR30-10DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M30, 10 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | standard flush type | ||
| AUTONICS-PRCM30-10DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M30, 10 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | standard flush type | ||
| AUTONICS-PRCM30-10DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush | M30, 10 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | standard flush type | ||
| AUTONICS-PR8-2DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | standard non-flush type | ||
| AUTONICS-PR8-2DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | standard non-flush type | ||
| AUTONICS-PRCM8-2DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | standard non-flush type | ||
| AUTONICS-PRCM8-2DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | standard non-flush type | ||
| AUTONICS-PR12-4DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | standard non-flush type | ||
| AUTONICS-PR12-4DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | standard non-flush type | ||
| AUTONICS-PRCM12-4DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | standard non-flush type | ||
| AUTONICS-PRCM12-4DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | standard non-flush type | ||
| AUTONICS-PR18-8DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M18, 8 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | standard non-flush type | ||
| AUTONICS-PR18-8DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M18, 8 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | standard non-flush type | ||
| AUTONICS-PRCM18-8DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M18, 8 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | standard non-flush type | ||
| AUTONICS-PRCM18-8DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M18, 8 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | standard non-flush type | ||
| AUTONICS-PR30-15DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | standard non-flush type | ||
| AUTONICS-PR30-15DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | standard non-flush type | ||
| AUTONICS-PRCM30-15DN | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | standard non-flush type | ||
| AUTONICS-PRCM30-15DP | — | AUTONICS | Inductive proximity sensor | PR Series | Standard non-flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | standard non-flush type | ||
| AUTONICS-PR12-2A | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush DC 2-wire | M12, 2 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire flush | ||
| AUTONICS-PRCM12-2A | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush DC 2-wire | M12, 2 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire flush | ||
| AUTONICS-PR18-5A | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush DC 2-wire | M18, 5 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire flush | ||
| AUTONICS-PRCM18-5A | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush DC 2-wire | M18, 5 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire flush | ||
| AUTONICS-PR30-10A | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush DC 2-wire | M30, 10 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire flush | ||
| AUTONICS-PRCM30-10A | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush DC 2-wire | M30, 10 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire flush | ||
| AUTONICS-PR12-2AC | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush AC 2-wire | M12, 2 mm | AC 2-wire | 100-240 VAC | Cable type | IP67 | AC 2-wire flush | ||
| AUTONICS-PR18-5AC | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush AC 2-wire | M18, 5 mm | AC 2-wire | 100-240 VAC | Cable type | IP67 | AC 2-wire flush | ||
| AUTONICS-PR30-10AC | — | AUTONICS | Inductive proximity sensor | PR Series | Standard flush AC 2-wire | M30, 10 mm | AC 2-wire | 100-240 VAC | Cable type | IP67 | AC 2-wire flush |
