Proximity
Omron

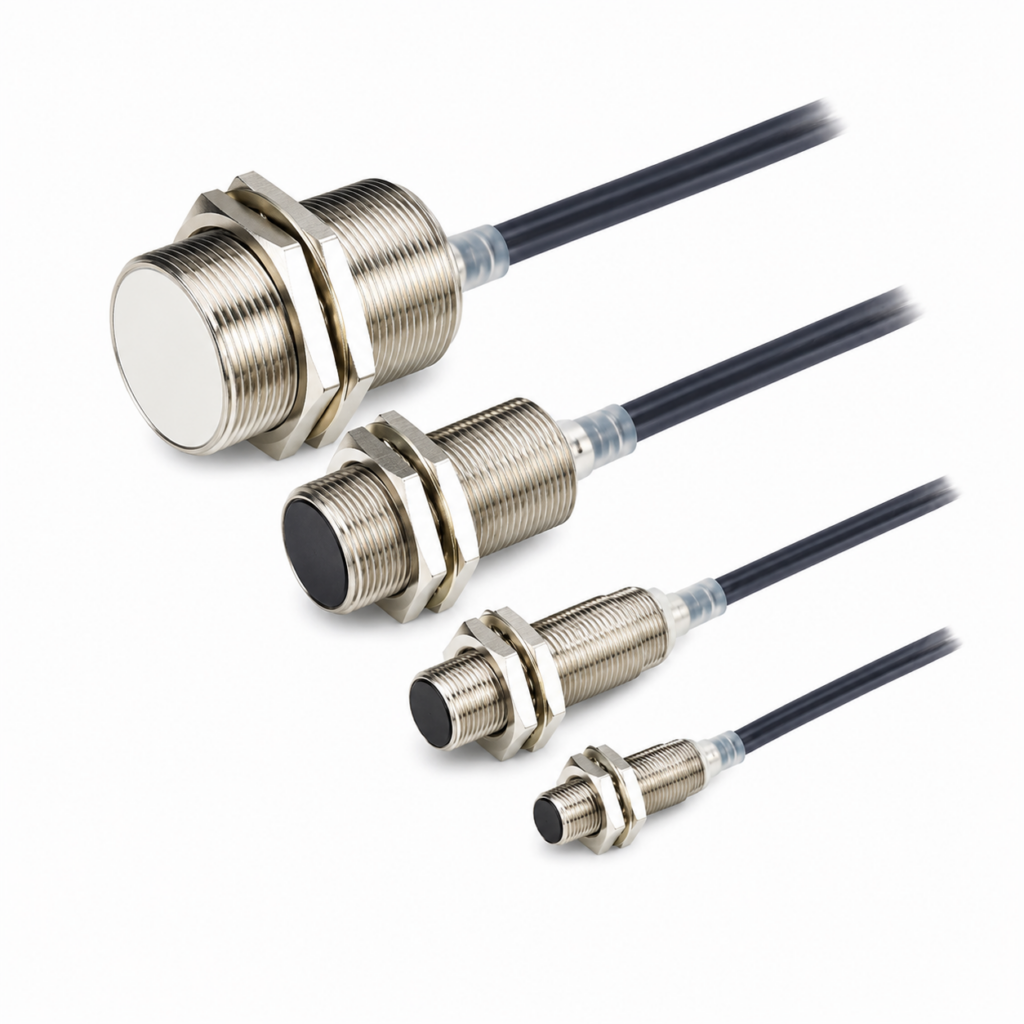

[OMRON] — E2E DC 2-Wire Self-diagnosis Output Proximity Sensor (Shielded, M12/M18/M30)
Family ID: OMRON-E2E-DC2W-DIAG-SH
OMRON E2E Series DC 2-wire shielded proximity sensors with self-diagnosis output. M12 (3mm), M18 (7mm), M30 (10mm). NO only. PVC oil-resistant cable. Pre-wired 2m and M12 connector. Frequency variant models also available.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2E-X3D1S 2M | DC 2W self-diag shielded M12 3 mm 2m | OMRON | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire with self-diagnosis output | Cable: PVC oil-resistant | Polarity: Yes | Operation Mode: NO | Pin: 2: +V and diagnostic output / 3: 0V / 4: +V and control output | Note: Frequency variant available: E2E-X[]D15S (add '5' before 'S') | Connection: Pre-wired 2 m | ||
| E2E-X3D1S-M1 | DC 2W self-diag shielded M12 3 mm M12 conn | OMRON | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire with self-diagnosis output | Cable: PVC oil-resistant | Polarity: Yes | Operation Mode: NO | Pin: 2: +V and diagnostic output / 3: 0V / 4: +V and control output | Note: Frequency variant available: E2E-X[]D15S (add '5' before 'S') | Connection: M12 Connector | ||
| E2E-X7D1S 2M | DC 2W self-diag shielded M18 7 mm 2m | OMRON | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire with self-diagnosis output | Cable: PVC oil-resistant | Polarity: Yes | Operation Mode: NO | Pin: 2: +V and diagnostic output / 3: 0V / 4: +V and control output | Note: Frequency variant available: E2E-X[]D15S (add '5' before 'S') | Connection: Pre-wired 2 m | ||
| E2E-X7D1S-M1 | DC 2W self-diag shielded M18 7 mm M12 conn | OMRON | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire with self-diagnosis output | Cable: PVC oil-resistant | Polarity: Yes | Operation Mode: NO | Pin: 2: +V and diagnostic output / 3: 0V / 4: +V and control output | Note: Frequency variant available: E2E-X[]D15S (add '5' before 'S') | Connection: M12 Connector | ||
| E2E-X10D1S 2M | DC 2W self-diag shielded M30 10 mm 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire with self-diagnosis output | Cable: PVC oil-resistant | Polarity: Yes | Operation Mode: NO | Pin: 2: +V and diagnostic output / 3: 0V / 4: +V and control output | Note: Frequency variant available: E2E-X[]D15S (add '5' before 'S') | Connection: Pre-wired 2 m | ||
| E2E-X10D1S-M1 | DC 2W self-diag shielded M30 10 mm M12 conn | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire with self-diagnosis output | Cable: PVC oil-resistant | Polarity: Yes | Operation Mode: NO | Pin: 2: +V and diagnostic output / 3: 0V / 4: +V and control output | Note: Frequency variant available: E2E-X[]D15S (add '5' before 'S') | Connection: M12 Connector |
