Proximity
Autonics

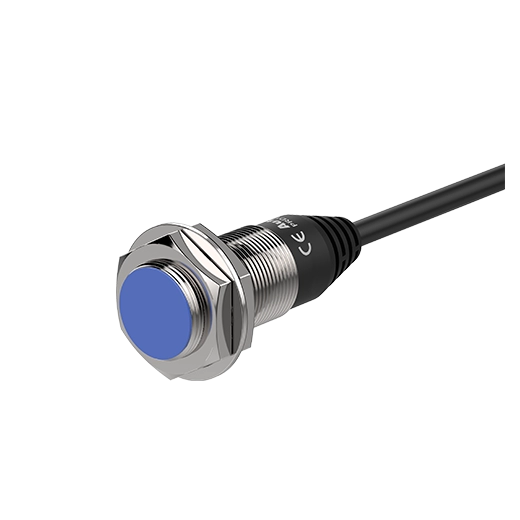

[AUTONICS] PRD Series Cylindrical Inductive Long-Distance Proximity Sensors
Family ID: AUTONICS-PRD-SERIES
M8/M12/M18/M30 cylindrical inductive long-distance proximity sensors. DC 3-wire (NPN/PNP), DC 2-wire, and IO-Link variants. Spatter-resistant PTFE coated models for welding environments. Cable and M12 connector types. IP67 rated. Operation indicator LED.
49 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PRD8-2DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | long-distance flush type | ||
| AUTONICS-PRD8-2DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | long-distance flush type | ||
| AUTONICS-PRDCM8-2DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | long-distance flush type | ||
| AUTONICS-PRDCM8-2DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | long-distance flush type | ||
| AUTONICS-PRD12-4DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | long-distance flush type | ||
| AUTONICS-PRD12-4DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | long-distance flush type | ||
| AUTONICS-PRDCM12-4DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | long-distance flush type | ||
| AUTONICS-PRDCM12-4DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | long-distance flush type | ||
| AUTONICS-PRD18-7DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | long-distance flush type | ||
| AUTONICS-PRD18-7DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | long-distance flush type | ||
| AUTONICS-PRDCM18-7DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | long-distance flush type | ||
| AUTONICS-PRDCM18-7DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | long-distance flush type | ||
| AUTONICS-PRD30-15DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | long-distance flush type | ||
| AUTONICS-PRD30-15DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | long-distance flush type | ||
| AUTONICS-PRDCM30-15DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | long-distance flush type | ||
| AUTONICS-PRDCM30-15DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | long-distance flush type | ||
| AUTONICS-PRDACM12-4DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush spatter-resistant | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | PTFE coated spatter-resistant | ||
| AUTONICS-PRDACM12-4DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush spatter-resistant | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | PTFE coated spatter-resistant | ||
| AUTONICS-PRDACM18-7DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush spatter-resistant | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | PTFE coated spatter-resistant | ||
| AUTONICS-PRDACM18-7DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush spatter-resistant | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | PTFE coated spatter-resistant | ||
| AUTONICS-PRDACM30-15DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush spatter-resistant | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | PTFE coated spatter-resistant | ||
| AUTONICS-PRDACM30-15DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush spatter-resistant | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | PTFE coated spatter-resistant | ||
| AUTONICS-PRD8-4DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M8, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRD8-4DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M8, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRDCM8-4DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M8, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRDCM8-4DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M8, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRD12-8DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M12, 8 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRD12-8DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M12, 8 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRDCM12-8DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M12, 8 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRDCM12-8DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M12, 8 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRD18-14DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M18, 14 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRD18-14DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M18, 14 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRDCM18-14DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M18, 14 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRDCM18-14DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M18, 14 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRD30-25DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M30, 25 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRD30-25DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M30, 25 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRDCM30-25DN | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M30, 25 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRDCM30-25DP | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance non-flush | M30, 25 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | long-distance non-flush type | ||
| AUTONICS-PRD8-2A | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush DC 2-wire | M8, 2 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire long-distance flush | ||
| AUTONICS-PRDCM8-2A | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush DC 2-wire | M8, 2 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire long-distance flush | ||
| AUTONICS-PRD12-4A | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush DC 2-wire | M12, 4 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire long-distance flush | ||
| AUTONICS-PRDCM12-4A | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush DC 2-wire | M12, 4 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire long-distance flush | ||
| AUTONICS-PRD18-7A | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush DC 2-wire | M18, 7 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire long-distance flush | ||
| AUTONICS-PRDCM18-7A | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush DC 2-wire | M18, 7 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire long-distance flush | ||
| AUTONICS-PRD30-15A | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush DC 2-wire | M30, 15 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire long-distance flush | ||
| AUTONICS-PRDCM30-15A | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush DC 2-wire | M30, 15 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire long-distance flush | ||
| AUTONICS-PRDCM12-4DI | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush IO-Link | M12, 4 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link smart sensor | ||
| AUTONICS-PRDCM18-7DI | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush IO-Link | M18, 7 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link smart sensor | ||
| AUTONICS-PRDCM30-15DI | — | AUTONICS | Inductive proximity sensor | PRD Series | Long-distance flush IO-Link | M30, 15 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link smart sensor |
