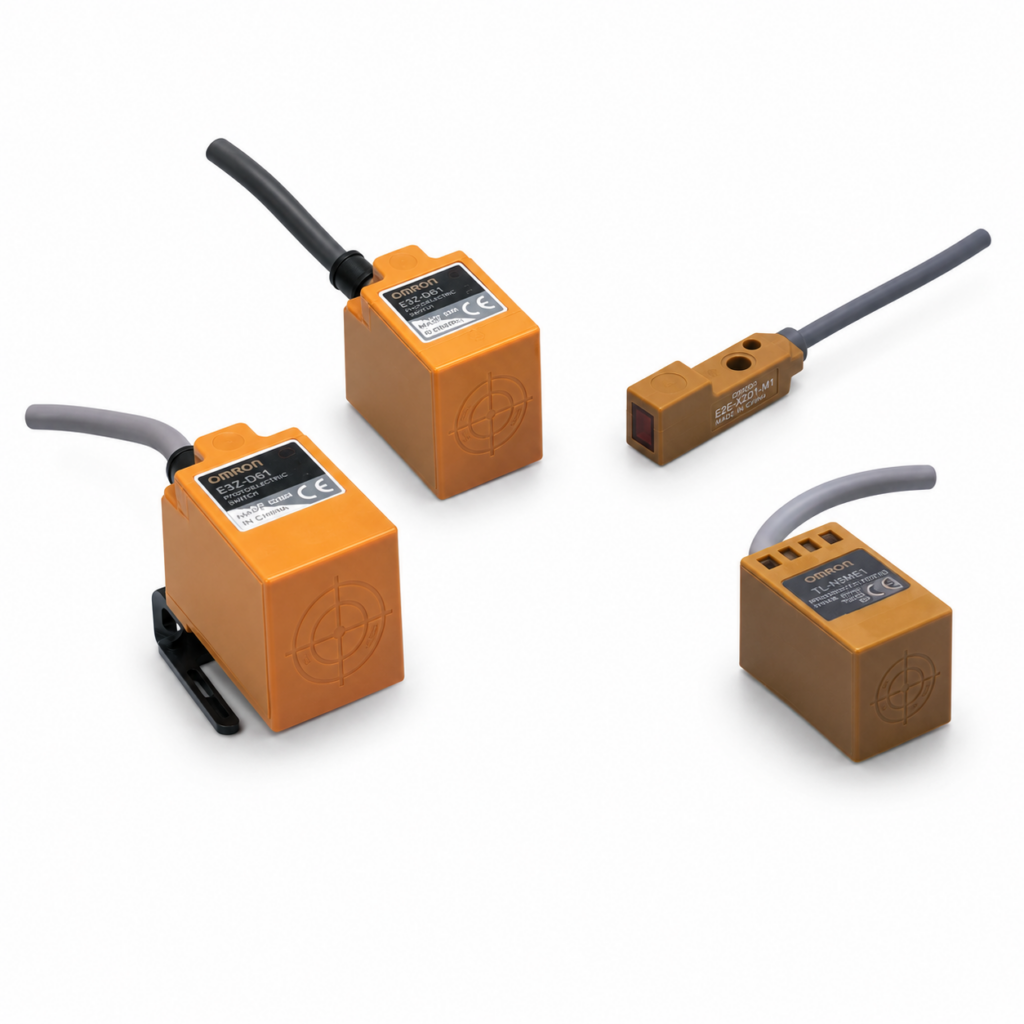

[OMRON] — TL-N / TL-Q Rectangular Standard Proximity Sensor (Unshielded, DC 2W/3W/AC 2W)
Family ID: OMRON-TL-NQ
OMRON TL-N / TL-Q Series rectangular unshielded proximity sensor. DC 2-wire: TL-Q5 (17×17/5mm), TL-N7/12/20 (25×25~40×40). DC 3-wire NPN/PNP and AC 2-wire: TL-Q2/5, TL-N5/10/20. Pre-wired 2m. Frequency variant models available (add '5', e.g. TL-N7MD15).
25 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| TL-Q5MD1 2M | TL 17×17 5 mm DC 2-wire --- NO 2m | OMRON | Body Size: 17×17 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-Q5MD2 2M | TL 17×17 5 mm DC 2-wire --- NC 2m | OMRON | Body Size: 17×17 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N7MD1 2M | TL 25×25 7 mm DC 2-wire --- NO 2m | OMRON | Body Size: 25×25 | Sensing Distance: 7 mm | Shield: Unshielded | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N7MD2 2M | TL 25×25 7 mm DC 2-wire --- NC 2m | OMRON | Body Size: 25×25 | Sensing Distance: 7 mm | Shield: Unshielded | Wire: DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N12MD1 2M | TL 30×30 12 mm DC 2-wire --- NO 2m | OMRON | Body Size: 30×30 | Sensing Distance: 12 mm | Shield: Unshielded | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N12MD2 2M | TL 30×30 12 mm DC 2-wire --- NC 2m | OMRON | Body Size: 30×30 | Sensing Distance: 12 mm | Shield: Unshielded | Wire: DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N20MD1 2M | TL 40×40 20 mm DC 2-wire --- NO 2m | OMRON | Body Size: 40×40 | Sensing Distance: 20 mm | Shield: Unshielded | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N20MD2 2M | TL 40×40 20 mm DC 2-wire --- NC 2m | OMRON | Body Size: 40×40 | Sensing Distance: 20 mm | Shield: Unshielded | Wire: DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-Q2MC1 2M | TL 8×9 2 mm DC 3-wire NPN NO 2m | OMRON | Body Size: 8×9 | Sensing Distance: 2 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-Q5MC1 2M | TL 17×17 5 mm DC 3-wire NPN NO 2m | OMRON | Body Size: 17×17 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-Q5MC2 2M | TL 17×17 5 mm DC 3-wire NPN NC 2m | OMRON | Body Size: 17×17 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-Q5MB1 2M | TL 17×17 5 mm DC 3-wire PNP NO 2m | OMRON | Body Size: 17×17 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N5ME1 2M | TL 25×25 5 mm DC 3-wire NPN NO 2m | OMRON | Body Size: 25×25 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N5ME2 2M | TL 25×25 5 mm DC 3-wire NPN NC 2m | OMRON | Body Size: 25×25 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N5MY1 2M | TL 25×25 5 mm AC 2-wire --- NO 2m | OMRON | Body Size: 25×25 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N5MY2 2M | TL 25×25 5 mm AC 2-wire --- NC 2m | OMRON | Body Size: 25×25 | Sensing Distance: 5 mm | Shield: Unshielded | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N10ME1 2M | TL 30×30 10 mm DC 3-wire NPN NO 2m | OMRON | Body Size: 30×30 | Sensing Distance: 10 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N10ME2 2M | TL 30×30 10 mm DC 3-wire NPN NC 2m | OMRON | Body Size: 30×30 | Sensing Distance: 10 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N10MF1 2M | TL 30×30 10 mm DC 3-wire PNP NO 2m | OMRON | Body Size: 30×30 | Sensing Distance: 10 mm | Shield: Unshielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N10MY1 2M | TL 30×30 10 mm AC 2-wire --- NO 2m | OMRON | Body Size: 30×30 | Sensing Distance: 10 mm | Shield: Unshielded | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N10MY2 2M | TL 30×30 10 mm AC 2-wire --- NC 2m | OMRON | Body Size: 30×30 | Sensing Distance: 10 mm | Shield: Unshielded | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N20ME1 2M | TL 40×40 20 mm DC 3-wire NPN NO 2m | OMRON | Body Size: 40×40 | Sensing Distance: 20 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N20ME2 2M | TL 40×40 20 mm DC 3-wire NPN NC 2m | OMRON | Body Size: 40×40 | Sensing Distance: 20 mm | Shield: Unshielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N20MY1 2M | TL 40×40 20 mm AC 2-wire --- NO 2m | OMRON | Body Size: 40×40 | Sensing Distance: 20 mm | Shield: Unshielded | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) | ||
| TL-N20MY2 2M | TL 40×40 20 mm AC 2-wire --- NC 2m | OMRON | Body Size: 40×40 | Sensing Distance: 20 mm | Shield: Unshielded | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant available (add '5' before output digit, e.g. TL-N7MD15) |
