Proximity
Omron

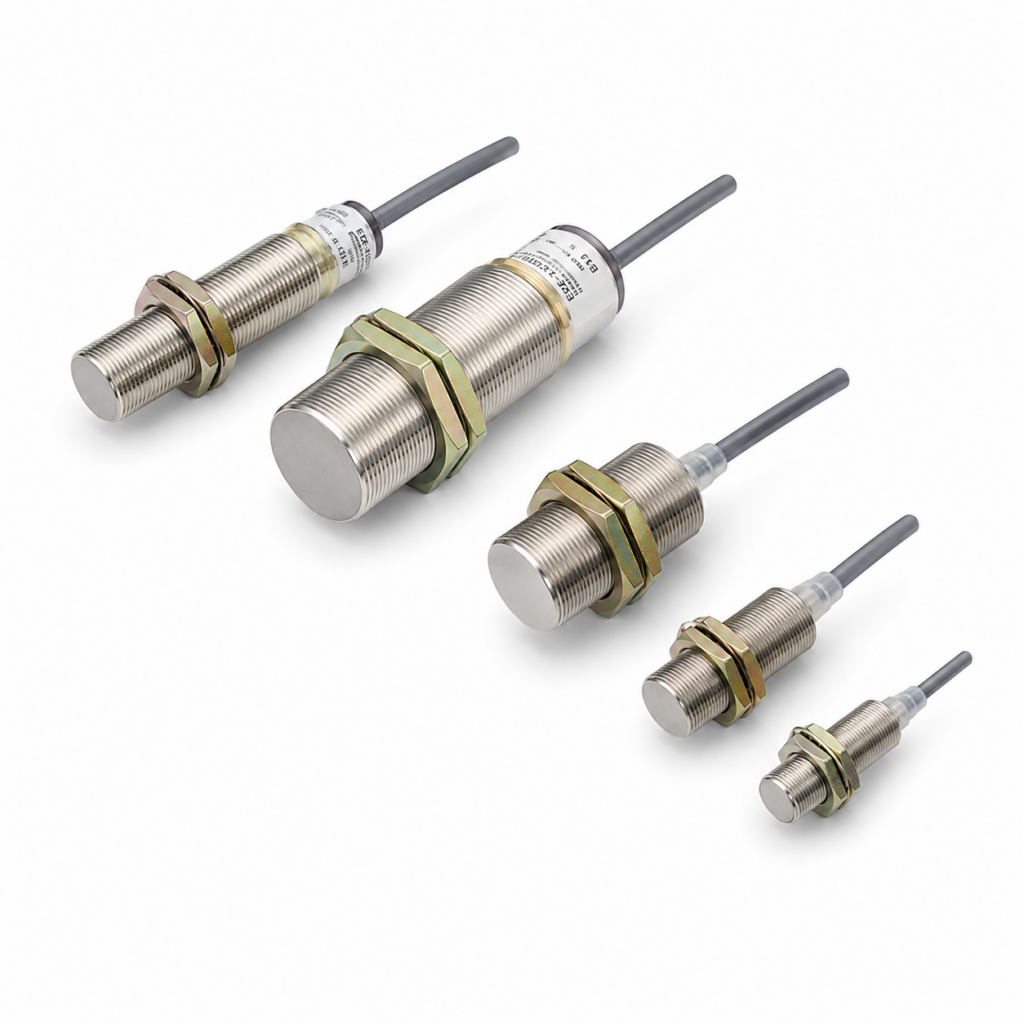

[OMRON] — E2EZ Chip-immune Inductive Proximity Sensor (M12/M18/M30, DC 2-Wire/3-Wire)
Family ID: OMRON-E2EZ
OMRON E2EZ Series chip-immune inductive proximity sensor. M12 (2mm): DC 2-wire NO/NC. M18 (4mm): DC 3-wire NPN/PNP (NO) + DC 2-wire NO/NC. M30 (8mm): DC 3-wire NPN/PNP (NO) + DC 2-wire NO/NC. Pre-wired 2m, M12 Smartclick connector 0.3m (2 pin arrangements), M12 connector 0.3m.
24 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2EZ-X2D1-N 2M | M12 2mm DC2W NO 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EZ-X2D2-N 2M | M12 2mm DC2W NC 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | ||
| E2EZ-X2D1-M1TJ 0.3M | M12 2mm DC2W NO Smartclick (3)-(4) | OMRON | Size: M12 | Sensing Distance: 2 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Smartclick 0.3 m | Pin: (3)-(4) | ||
| E2EZ-X2D1-M1TGJ 0.3M | M12 2mm DC2W NO Smartclick (1)-(4) | OMRON | Size: M12 | Sensing Distance: 2 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Smartclick 0.3 m | Pin: (1)-(4) | ||
| E2EZ-X2D1-M1J 0.3M | M12 2mm DC2W NO M12conn (3)-(4) | OMRON | Size: M12 | Sensing Distance: 2 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Connector 0.3 m | Pin: (3)-(4) | ||
| E2EZ-X2D1-M1GJ 0.3M | M12 2mm DC2W NO M12conn (1)-(4) | OMRON | Size: M12 | Sensing Distance: 2 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Connector 0.3 m | Pin: (1)-(4) | ||
| E2EZ-X4C1 2M | M18 4mm DC3W NPN NO 2m | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EZ-X4B1 2M | M18 4mm DC3W PNP NO 2m | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EZ-X4D1-N 2M | M18 4mm DC2W NO 2m | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EZ-X4D2-N 2M | M18 4mm DC2W NC 2m | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | ||
| E2EZ-X4D1-M1TJ 0.3M | M18 4mm DC2W NO Smartclick (3)-(4) | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Smartclick 0.3 m | Pin: (3)-(4) | ||
| E2EZ-X4D1-M1TGJ 0.3M | M18 4mm DC2W NO Smartclick (1)-(4) | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Smartclick 0.3 m | Pin: (1)-(4) | ||
| E2EZ-X4D1-M1J 0.3M | M18 4mm DC2W NO M12conn (3)-(4) | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Connector 0.3 m | Pin: (3)-(4) | ||
| E2EZ-X4D1-M1GJ 0.3M | M18 4mm DC2W NO M12conn (1)-(4) | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Connector 0.3 m | Pin: (1)-(4) | ||
| E2EZ-X4B1-M1J 0.3M | M18 4mm DC3W PNP NO M12conn | OMRON | Size: M18 | Sensing Distance: 4 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: M12 Connector 0.3 m | ||
| E2EZ-X8C1 2M | M30 8mm DC3W NPN NO 2m | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EZ-X8B1 2M | M30 8mm DC3W PNP NO 2m | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EZ-X8D1-N 2M | M30 8mm DC2W NO 2m | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EZ-X8D2-N 2M | M30 8mm DC2W NC 2m | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | ||
| E2EZ-X8D1-M1TJ 0.3M | M30 8mm DC2W NO Smartclick (3)-(4) | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Smartclick 0.3 m | Pin: (3)-(4) | ||
| E2EZ-X8D1-M1TGJ 0.3M | M30 8mm DC2W NO Smartclick (1)-(4) | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Smartclick 0.3 m | Pin: (1)-(4) | ||
| E2EZ-X8D1-M1J 0.3M | M30 8mm DC2W NO M12conn (3)-(4) | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Connector 0.3 m | Pin: (3)-(4) | ||
| E2EZ-X8D1-M1GJ 0.3M | M30 8mm DC2W NO M12conn (1)-(4) | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 2-wire | Output: --- | Operation Mode: NO | Connection: M12 Connector 0.3 m | Pin: (1)-(4) | ||
| E2EZ-X8B1-M1J 0.3M | M30 8mm DC3W PNP NO M12conn | OMRON | Size: M30 | Sensing Distance: 8 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: M12 Connector 0.3 m |
