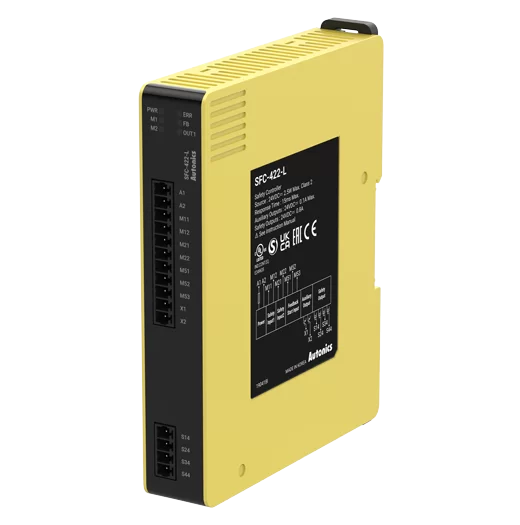

![[AUTONICS] SFC Series Safety Controllers](https://img.prosourcemro.com/2026/04/001-1325.png)
Safety Controller
Autonics
[AUTONICS] SFC Series Safety Controllers
Family ID: AUTONICS-SFC-SERIES
Slim-size (17.5/22.5/35 mm) safety controllers with P-channel FET safety output. Basic, Advanced (off-delay), and Non-contact door switch variants. Logical AND connection up to 4 units, max. 20 total connections, 5 layers. 100 m cable length. SIL3, SIL CL3, PLe, Category 4, EN 60947-5-1, UL Listed, S-Mark certified. Screw and screwless terminal options.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SFC-422-T | — | AUTONICS | Safety controller | SFC Series | Basic safety controller | 4 instantaneous outputs | P-channel FET | 24 VDC | Screw terminal | IP20 | basic SIL3 PLe | ||
| AUTONICS-SFC-422-S | — | AUTONICS | Safety controller | SFC Series | Basic safety controller | 4 instantaneous outputs | P-channel FET | 24 VDC | Screwless terminal | IP20 | basic SIL3 PLe | ||
| AUTONICS-SFC-A322-2T-T | — | AUTONICS | Safety controller | SFC Series | Advanced safety controller | 3 instant + 2 off-delay (3 sec) | P-channel FET | 24 VDC | Screw terminal | IP20 | advanced with off-delay 3 sec | ||
| AUTONICS-SFC-A322-2T-S | — | AUTONICS | Safety controller | SFC Series | Advanced safety controller | 3 instant + 2 off-delay (3 sec) | P-channel FET | 24 VDC | Screwless terminal | IP20 | advanced with off-delay 3 sec | ||
| AUTONICS-SFC-A322-2H-T | — | AUTONICS | Safety controller | SFC Series | Advanced safety controller | 3 instant + 2 off-delay (300 sec) | P-channel FET | 24 VDC | Screw terminal | IP20 | advanced with off-delay 300 sec | ||
| AUTONICS-SFC-A322-2H-S | — | AUTONICS | Safety controller | SFC Series | Advanced safety controller | 3 instant + 2 off-delay (300 sec) | P-channel FET | 24 VDC | Screwless terminal | IP20 | advanced with off-delay 300 sec | ||
| AUTONICS-SFC-N322-2T-T | — | AUTONICS | Safety controller | SFC Series | Non-contact door switch controller | 3 instant + 2 off-delay (3 sec) | P-channel FET | 24 VDC | Screw terminal | IP20 | for SFN non-contact door switches | ||
| AUTONICS-SFC-N322-2T-S | — | AUTONICS | Safety controller | SFC Series | Non-contact door switch controller | 3 instant + 2 off-delay (3 sec) | P-channel FET | 24 VDC | Screwless terminal | IP20 | for SFN non-contact door switches | ||
| AUTONICS-SFC-N322-2H-T | — | AUTONICS | Safety controller | SFC Series | Non-contact door switch controller | 3 instant + 2 off-delay (300 sec) | P-channel FET | 24 VDC | Screw terminal | IP20 | for SFN non-contact door switches | ||
| AUTONICS-SFC-N322-2H-S | — | AUTONICS | Safety controller | SFC Series | Non-contact door switch controller | 3 instant + 2 off-delay (300 sec) | P-channel FET | 24 VDC | Screwless terminal | IP20 | for SFN non-contact door switches |
