Safety Controller Omron

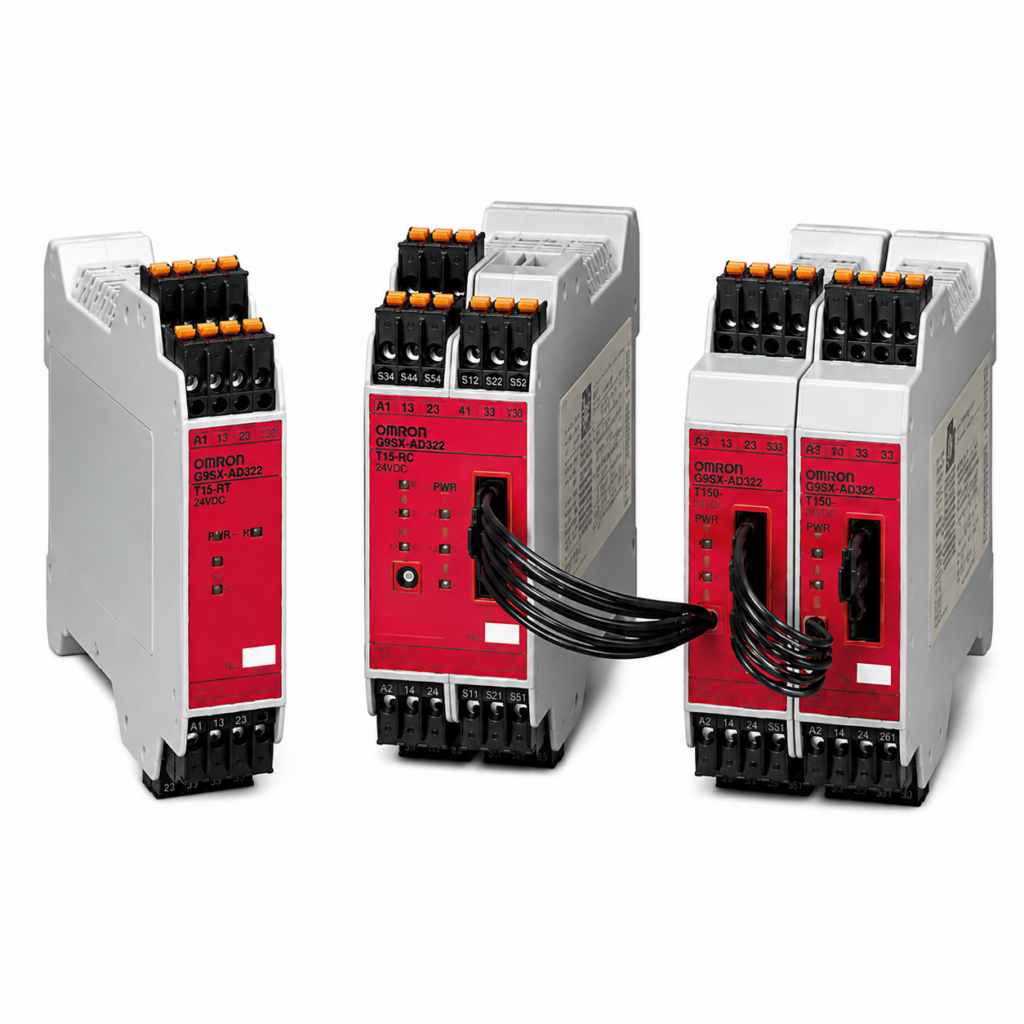

[OMRON] — G9SX Flexible Safety Unit (Advanced AD/ADA + Basic BC + Expansion EX, 24VDC)

Family ID: OMRON-G9SX

Logical AND Function Adds Flexibility to I/O Expansion

18 product codes available in this family

Product Codes & Specifications

	Product Code	Description	Brand	Spec
	G9SX-AD322-T15-RT	G9SX Advanced Unit 3SO+2delay 0-15s screw	OMRON	Type: G9SX Advanced Unit \| Safety Out Instant: 3 \| Safety Out Delayed: 2 \| Aux Out: 2 \| AND In/Out: 1/1 \| Channels: 1 or 2 \| Delay Range: 0-15s screw \| Terminal: Screw \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-AD322-T15-RC	G9SX Advanced Unit 3SO+2delay 0-15s spring-cage	OMRON	Type: G9SX Advanced Unit \| Safety Out Instant: 3 \| Safety Out Delayed: 2 \| Aux Out: 2 \| AND In/Out: 1/1 \| Channels: 1 or 2 \| Delay Range: 0-15s spring-cage \| Terminal: Spring-cage \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-AD322-T150-RT	G9SX Advanced Unit 3SO+2delay 0-150s screw	OMRON	Type: G9SX Advanced Unit \| Safety Out Instant: 3 \| Safety Out Delayed: 2 \| Aux Out: 2 \| AND In/Out: 1/1 \| Channels: 1 or 2 \| Delay Range: 0-150s screw \| Terminal: Screw \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-AD322-T150-RC	G9SX Advanced Unit 3SO+2delay 0-150s spring-cage	OMRON	Type: G9SX Advanced Unit \| Safety Out Instant: 3 \| Safety Out Delayed: 2 \| Aux Out: 2 \| AND In/Out: 1/1 \| Channels: 1 or 2 \| Delay Range: 0-150s spring-cage \| Terminal: Spring-cage \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-ADA222-T15-RT	G9SX Advanced Unit 2SO+2delay 0-15s screw	OMRON	Type: G9SX Advanced Unit \| Safety Out Instant: 2 \| Safety Out Delayed: 2 \| Aux Out: 2 \| AND In/Out: 1/1 \| Channels: 1 or 2 \| Delay Range: 0-15s screw \| Terminal: Screw \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-ADA222-T15-RC	G9SX Advanced Unit 2SO+2delay 0-15s spring-cage	OMRON	Type: G9SX Advanced Unit \| Safety Out Instant: 2 \| Safety Out Delayed: 2 \| Aux Out: 2 \| AND In/Out: 1/1 \| Channels: 1 or 2 \| Delay Range: 0-15s spring-cage \| Terminal: Spring-cage \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-ADA222-T150-RT	G9SX Advanced Unit 2SO+2delay 0-150s screw	OMRON	Type: G9SX Advanced Unit \| Safety Out Instant: 2 \| Safety Out Delayed: 2 \| Aux Out: 2 \| AND In/Out: 1/1 \| Channels: 1 or 2 \| Delay Range: 0-150s screw \| Terminal: Screw \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-ADA222-T150-RC	G9SX Advanced Unit 2SO+2delay 0-150s spring-cage	OMRON	Type: G9SX Advanced Unit \| Safety Out Instant: 2 \| Safety Out Delayed: 2 \| Aux Out: 2 \| AND In/Out: 1/1 \| Channels: 1 or 2 \| Delay Range: 0-150s spring-cage \| Terminal: Spring-cage \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-BC202-RT	G9SX Basic Unit 2SO Screw	OMRON	Type: G9SX Basic Unit \| Safety Out Instant: 2 \| Safety Out Delayed: --- \| Aux Out: 2 \| Channels: 1 or 2 \| Terminal: Screw \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-BC202-RC	G9SX Basic Unit 2SO Spring-cage	OMRON	Type: G9SX Basic Unit \| Safety Out Instant: 2 \| Safety Out Delayed: --- \| Aux Out: 2 \| Channels: 1 or 2 \| Terminal: Spring-cage \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-EX401-RT	G9SX Expansion Unit 4 instantaneous Screw	OMRON	Type: G9SX Expansion Unit \| Safety Out: 4 instantaneous \| Safety Out Delayed: --- \| Aux Out: 1 PNP \| Terminal: Screw \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-EX401-RC	G9SX Expansion Unit 4 instantaneous Spring-cage	OMRON	Type: G9SX Expansion Unit \| Safety Out: 4 instantaneous \| Safety Out Delayed: --- \| Aux Out: 1 PNP \| Terminal: Spring-cage \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-EX041-T-RT	G9SX Expansion Unit --- Screw	OMRON	Type: G9SX Expansion Unit \| Safety Out: --- \| Safety Out Delayed: 4 (sync to AD) \| Aux Out: 1 PNP \| Terminal: Screw \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	G9SX-EX041-T-RC	G9SX Expansion Unit --- Spring-cage	OMRON	Type: G9SX Expansion Unit \| Safety Out: --- \| Safety Out Delayed: 4 (sync to AD) \| Aux Out: 1 PNP \| Terminal: Spring-cage \| Note: 24VDC. P channel MOS-FET safety outputs. PNP auxiliary outputs.
	Y9S-03T1B-02A	G9SX Replacement Terminal Block 3-pin Screw	OMRON	Type: G9SX Replacement Terminal Block \| Pins: 3-pin \| Terminal: Screw \| Applicable: G9SX-AD/ADA \| Note: 2 blocks + 6 code marks per set
	Y9S-04T1B-02A	G9SX Replacement Terminal Block 4-pin Screw	OMRON	Type: G9SX Replacement Terminal Block \| Pins: 4-pin \| Terminal: Screw \| Applicable: G9SX-BC/EX \| Note: 2 blocks + 6 code marks per set
	Y9S-03C1B-02A	G9SX Replacement Terminal Block 3-pin Spring-cage	OMRON	Type: G9SX Replacement Terminal Block \| Pins: 3-pin \| Terminal: Spring-cage \| Applicable: G9SX-AD/ADA \| Note: 2 blocks + 6 code marks per set
	Y9S-04C1B-02A	G9SX Replacement Terminal Block 4-pin Spring-cage	OMRON	Type: G9SX Replacement Terminal Block \| Pins: 4-pin \| Terminal: Spring-cage \| Applicable: G9SX-BC/EX \| Note: 2 blocks + 6 code marks per set
