Cable Carriers
CP SYSTEM

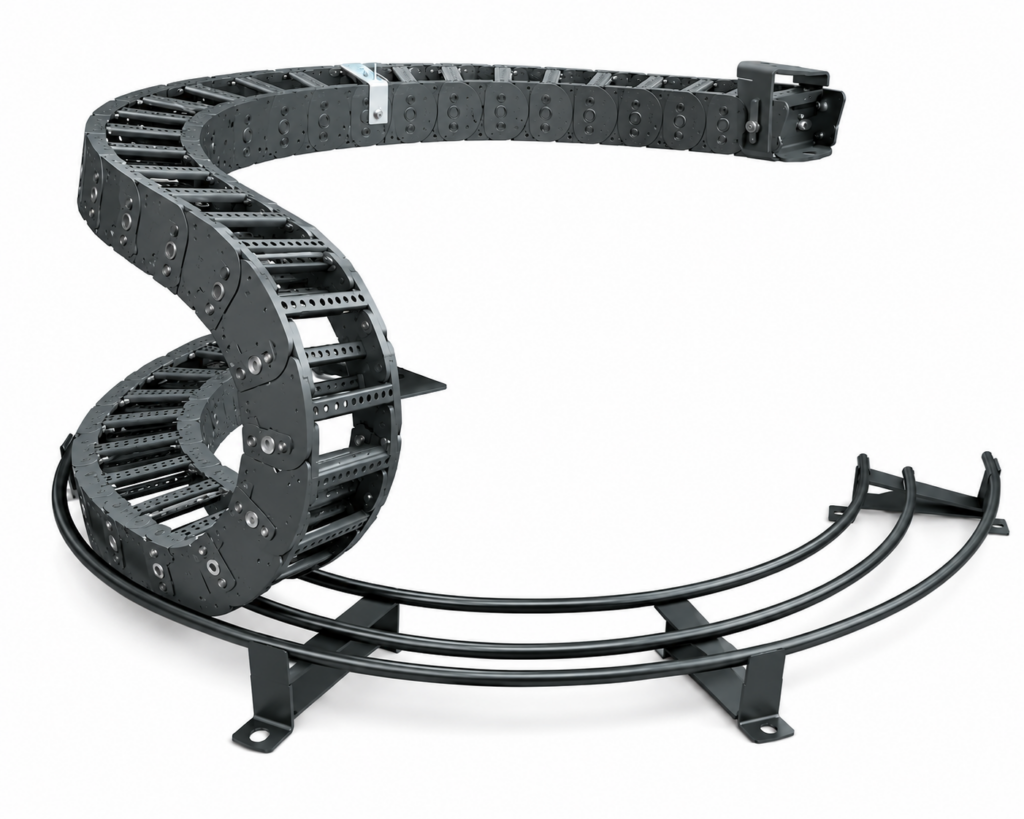

[CP SYSTEM] — HX3553 Helix Chain (Spiral Rotary, Pitch 53mm, Inside Width 75mm)
Family ID: CPS-HX3553
Helix chain is applied to the application with a spiral rotary motion in limited space where 360 degrees robots, rotating machines are operated. It protects cables from external damage and keeps the rotating angles safely. HX3553: pitch 53mm, chain inside width 75mm, upside & downside open frame with steel end bracket and guide channel.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HX3553.075.R90 | HX3553 Helix Chain, inside width 75mm, bending radius R90mm | CP SYSTEM | Model: HX3553 | Pitch: 53mm | Inside Width: 75mm | Bending Radius: R90mm | Motion: Spiral rotary up to 360 deg | Frame: Upside & Downside open frame | End Bracket: Steel End Bracket | Guide Channel: Included | Length: Made-to-order (specify in mm, e.g. -1000L) | Divider (DV): Optional qty (set) | ||
| HX3553.075.R140 | HX3553 Helix Chain, inside width 75mm, bending radius R140mm | CP SYSTEM | Model: HX3553 | Pitch: 53mm | Inside Width: 75mm | Bending Radius: R140mm | Motion: Spiral rotary up to 360 deg | Frame: Upside & Downside open frame | End Bracket: Steel End Bracket | Guide Channel: Included | Length: Made-to-order (specify in mm, e.g. -1000L) | Divider (DV): Optional qty (set) |
